Wheel Arch Height
- Park the vehicle on a level surface.
- Empty the vehicle so that it is at "curb weight". (Empty the luggage compartment, load the spare tire, jack and service tools, and fill up the fuel tank.)
- Set the steering wheel in a straight-ahead position, and stabilize the suspensions by moving the vehicle in a straight line for 5 m (16 ft) or more.

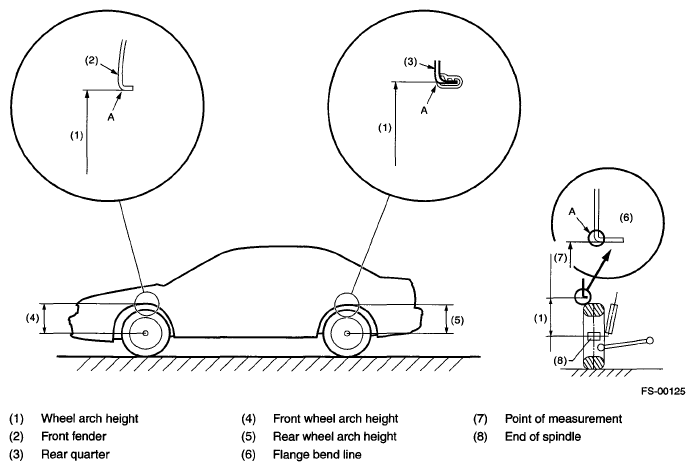

- Suspend a thread from the wheel arch (point "A" in the figure below) and affix at a position directly above the center of wheel.
- Measure the distance between the point "A" and the center of wheel.
Courtesy of SUBARU OF AMERICA, INC. WHEEL ARCH HEIGHT SPECIFICATION
| Wheel arch height specification mm (in) (Tolerance: +12 mm
-24 mm (+0.47 in
-0.94 in)) |
| Model |
Sedan |
Wagon |
| All Models |
Except for OUTBACK |
OUTBACK |
| Front |
381 (15.0) |
381 (15.0) |
439 (17.3) |
| Rear |
365 (14.4) |
375 (14.8) |
438 (17.2) |
