At Select Lever

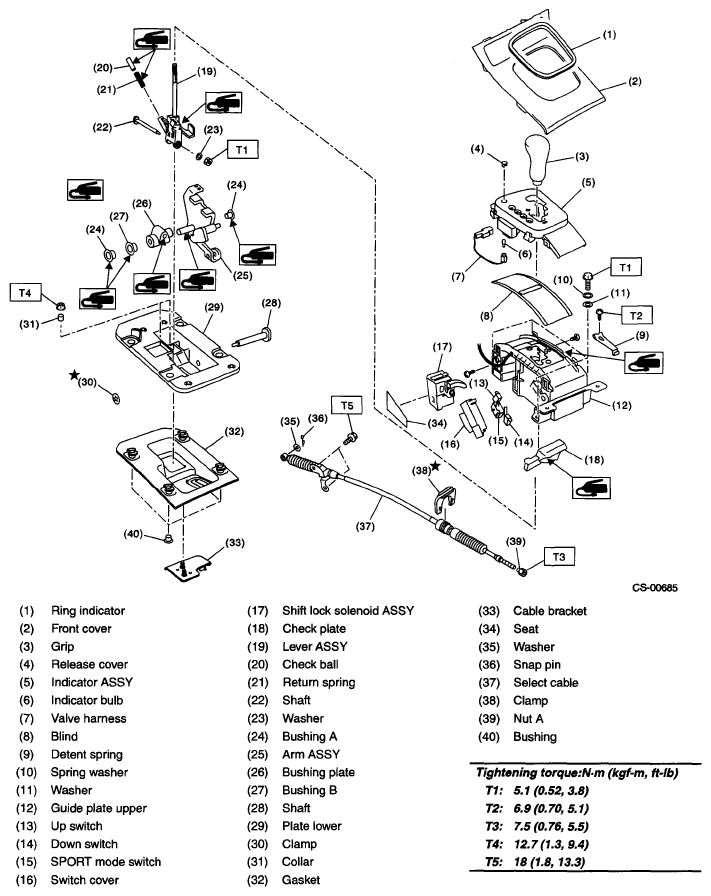

Fig 1: AT Select Lever Component With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
