Paddle Shift Assembly: Removal
- Disconnect the ground cable from the battery.
- Set the tire to the straight-ahead position.
- Remove the airbag module. < Ref. to
REMOVAL
, Driver's Airbag Module . >
WARNING:
If there are airbag modules mounted, always refer to "Airbag System" when performing airbag module service. < Ref. to
CAUTION
, General Description . >
- Remove the steering wheel. < Ref. to REMOVAL
, Steering Wheel. >
- Remove the column cover.

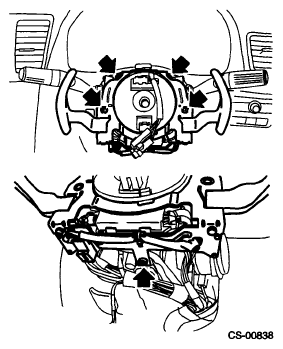

- Disconnect the connector of paddle shift assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the paddle shift assembly.
Courtesy of SUBARU OF AMERICA, INC.
