Accelerator Pedal: Removal

  1. Disconnect the ground cable from the battery.
    Fig 1: Disconnecting Battery Ground Cable
    G04988132Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly.

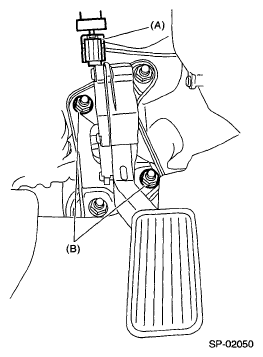

    Fig 2: Identifying Accelerator Pedal Assembly Nut And Connector
    G05339682Courtesy of SUBARU OF AMERICA, INC.
