Fuel Tank

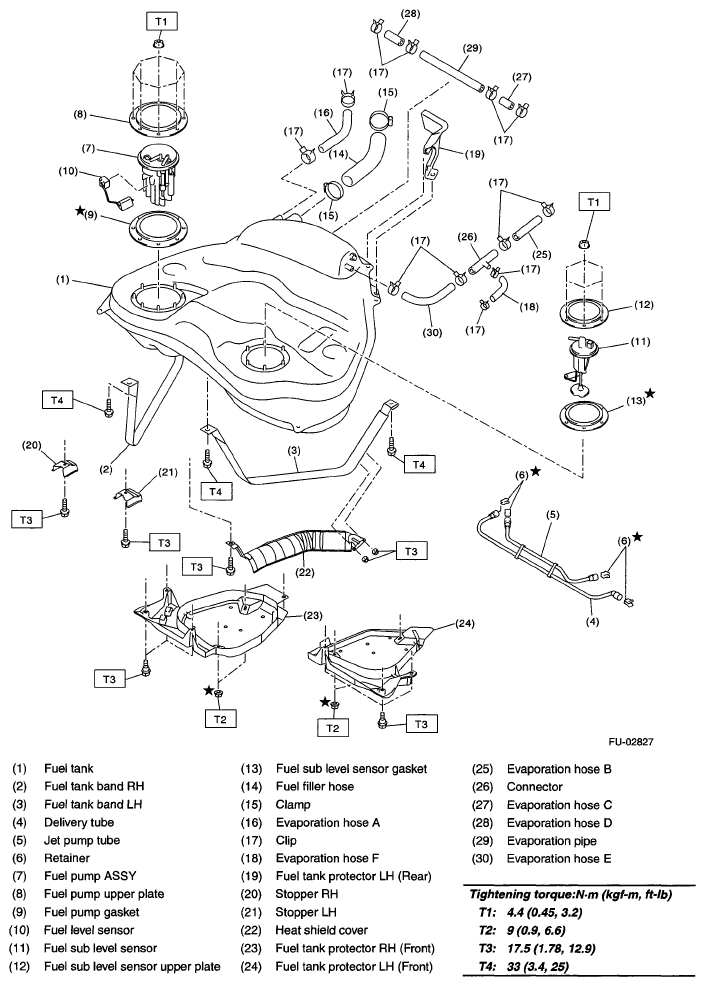

Fig 1: Exploded View Of Fuel Tank Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
