Inspection Of Clearance
This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.

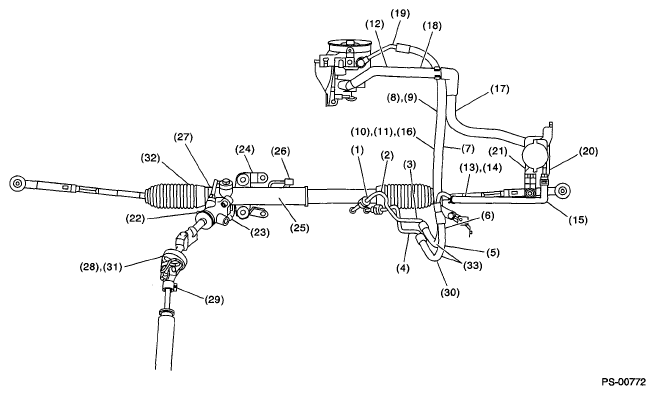

CLEARANCE SPECIFICATION
| Location | Minimum allowance mm (in) |
|---|---|
| (1) Crossmember to Hose ASSY | 3 (0.12) |
| (2) Front exhaust pipe to Hose ASSY (Turbo model) | 15 (0.59) |
| (3) Front frame side to Hose ASSY | 10 (0.39) |
| (4) Turbo cover to Hose ASSY (Turbo model) | 10 (0.39) |
| (5) Master cylinder to Return hose (Turbo model) | 10 (0.39) |
| (6) Master cylinder to Hose clip (Model with vehicle dynamics control (VDC)) | 10 (0.39) |
| (7) VDC H/U to Hose ASSY (Model with vehicle dynamics control (VDC)) | 5 (0.20) |
| (8) Air cleaner to Hose ASSY (Turbo model) | 5 (0.20) |
| (9) Air boot to Hose ASSY | 10 (0.39) |
| (10) Protector to Hose ASSY (Turbo model, DOHC non-turbo model) | 10 (0.39) |
| (11) Blow-by hose to Hose ASSY (Turbo model) | 8 (0.31) |
| (12) Over flow hose to Hose ASSY (Turbo model) | 8 (0.31) |
| (13) Brake pipe to Return hose (Model with ABS) | 10 (0.39) |
| (14) Front suspension bracket to Return hose | 5 (0.20) |
| (15) Front wheel apron to Return hose | 5 (0.20) |
| (16) VDC H/U bracket to Suction hose (Model with vehicle dynamics control (VDC)) | 5 (0.20) |
| (17) Air cleaner case to Suction hose | 5 (0.20) |
| (18) Air intake duct to Suction hose (Turbo model) | 10 (0.39) |
| (19) Air duct to Suction hose (Turbo model) | 10 (0.39) |
| (20) Front wheel apron to Reservoir tank | 5 (0.20) |
| (21) VDC H/U to Reservoir tank (Model with vehicle dynamics control (VDC)) | 5 (0.20) |
| (22) Valve housing to DOJ (MT model) | 12 (0.47) |
| (23) Valve housing to Crossmember (Hole) | 1 (0.04) |
| (24) Bracket to Crossmember | 1 (0.04) |
| (25) Cylinder to Crossmember | 5 (0.20) |
| (26) Elbow to Crossmember | 1 (0.04) |
| (27) Cylinder to Exhaust pipe | 18 (0.71) |
| (28) Universal joint coupling to Turbo cover (Turbo model) | 15 (0.59) |
| (29) Universal joint column side yoke to Master cylinder (Closest point of approach when the universal joint turns by 360°) (OUTBACK model) | 5 (0.20) |
| (30) Cruise control to Hose ASSY (Model with cruise control) | 10 (0.39) |
| (31) Universal joint coupling to ATF level gauge (LHD model) | 10 (0.39) |
| (32) Boot to Exhaust pipe (LHD model) | 18 (0.71) |
| (33) Return hose to Pressure hose | No contact between hoses |
