Navigation Module: Service and Repair

Navigation Body

REMOVAL
1. Disconnect the ground cable from the battery.
2. Slide the driver's seat to the forward position.
3. Disconnect the connector.

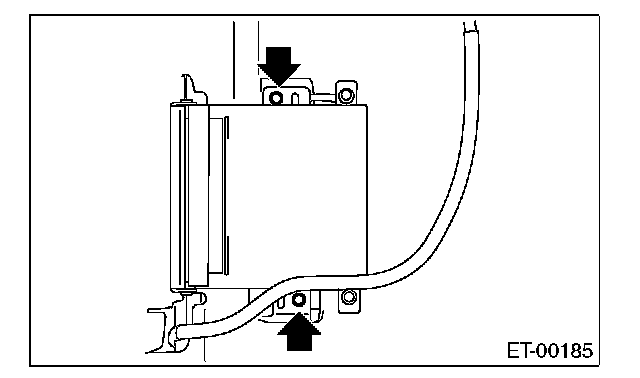

4. Remove the bolts and then remove the navigation unit.






INSTALLATION
Install in the reverse order of removal.
