Keyless Entry Receiver: Service and Repair

Keyless Entry Control Module

REMOVAL
1. Disconnect the ground cable from the battery.
2. Remove the glove box.

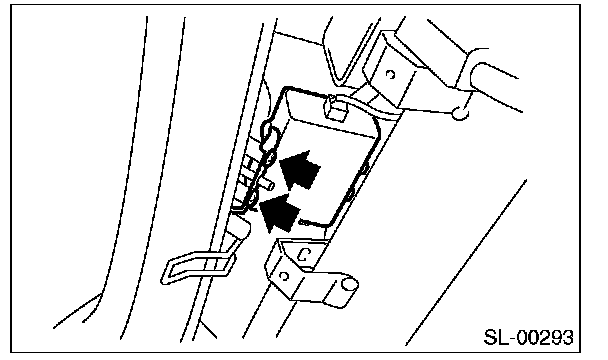

3. Remove the screw, disconnect the connector and remove the keyless entry control module.






INSTALLATION
Install in the reverse order of removal.
