Keyless Entry Transmitter Battery: Testing and Inspection

INSPECTION

1. TRANSMITTER BATTERY

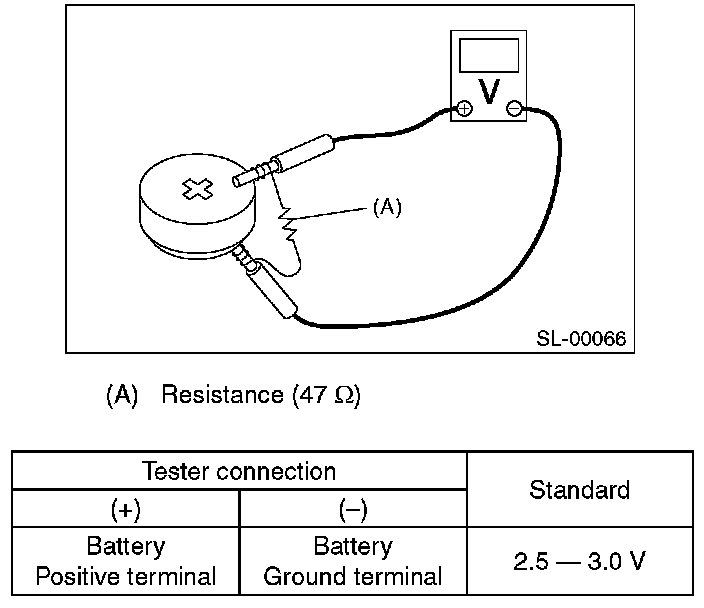

Measure the voltage between the keyless transmitter battery (+) terminal and (-) terminal.

NOTE: Battery discharge occurs during the measurement. Complete the measurement within 5 seconds.






If NG, replace the battery. (Use CR1620 or equivalent.)
