Power Locks: Testing and Inspection
Door Lock Control SystemINSPECTION
1. SYMPTOM CHART
Symptom Chart:
2. CHECK POWER SUPPLY AND GROUND CIRCUIT
Step 1-2:

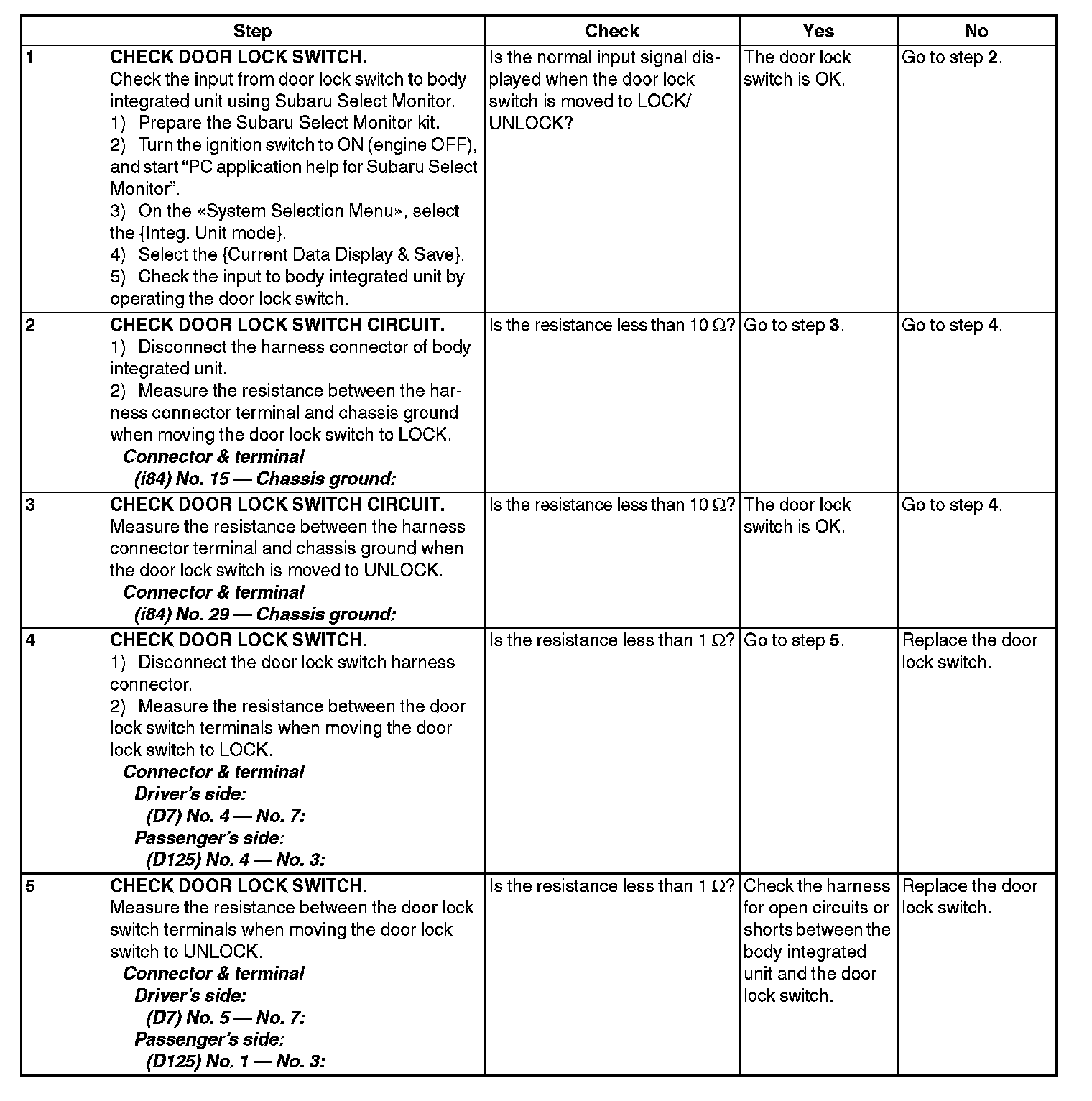

3. CHECK DOOR LOCK SWITCH
Step 1-5:

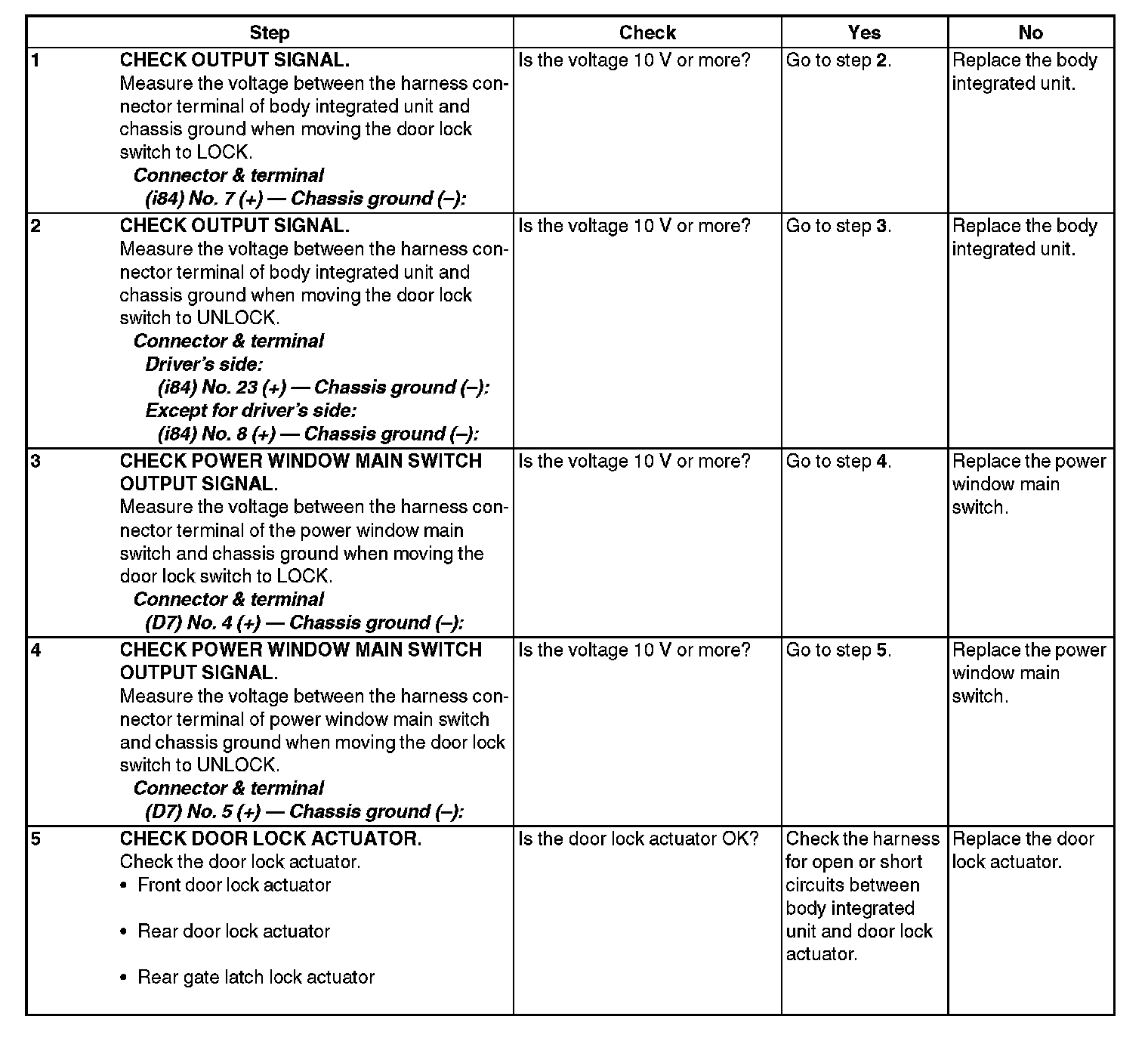

4. CHECK DOOR LOCK ACTUATOR AND CIRCUIT
Step 1-5:
INSPECTION
1. SYMPTOM CHART
2. CHECK POWER SUPPLY AND GROUND CIRCUIT
3. CHECK DOOR LOCK SWITCH
4. CHECK DOOR LOCK ACTUATOR AND CIRCUIT
