Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DETECTING CONDITION:
Defective harness connector

TROUBLE SYMPTOM:
Communication is impossible between ABS and Subaru Select Monitor.

WIRING DIAGRAM:

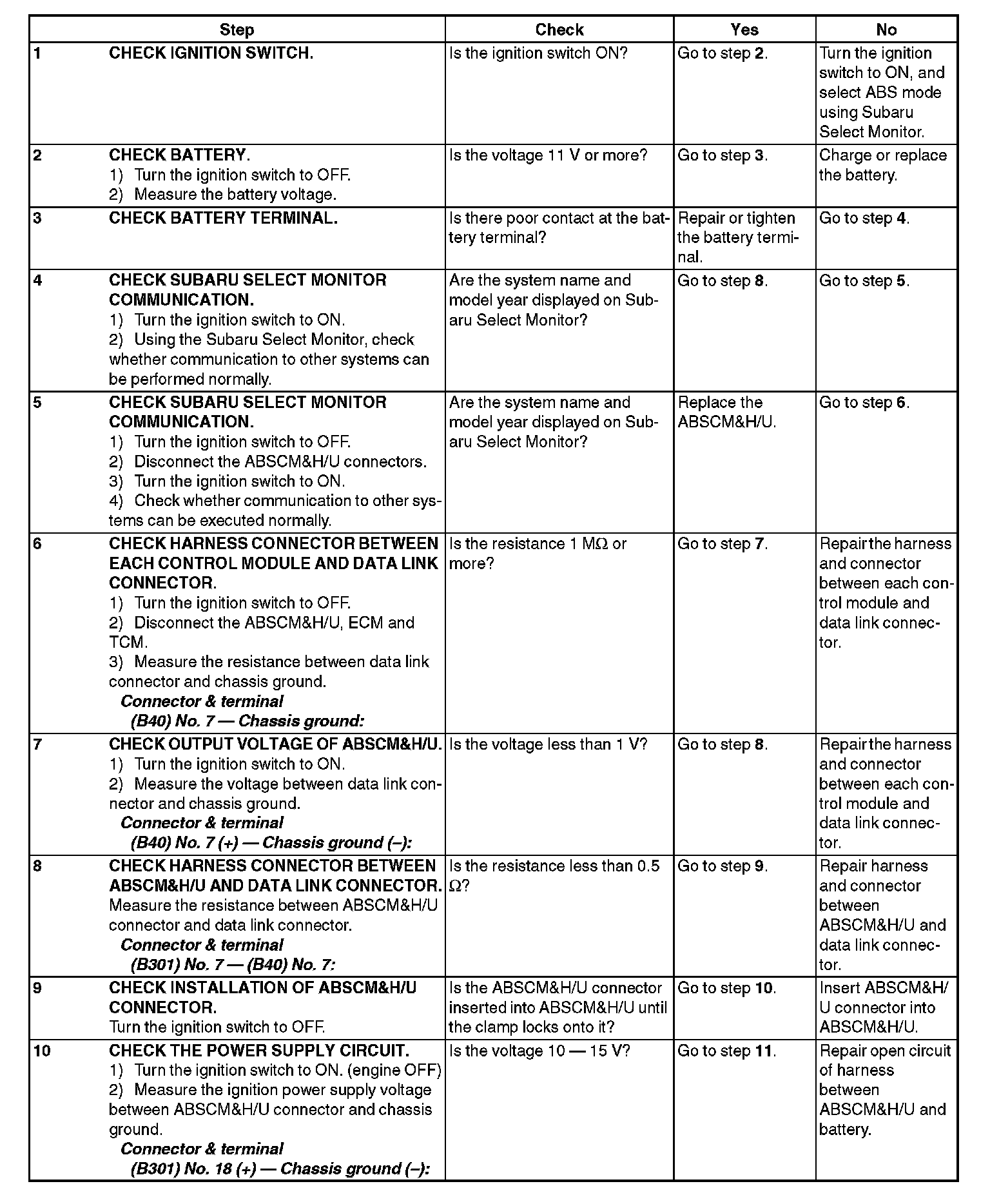

Step 1-Step 10:




Step 11-Step 12:
