Fuel Tank

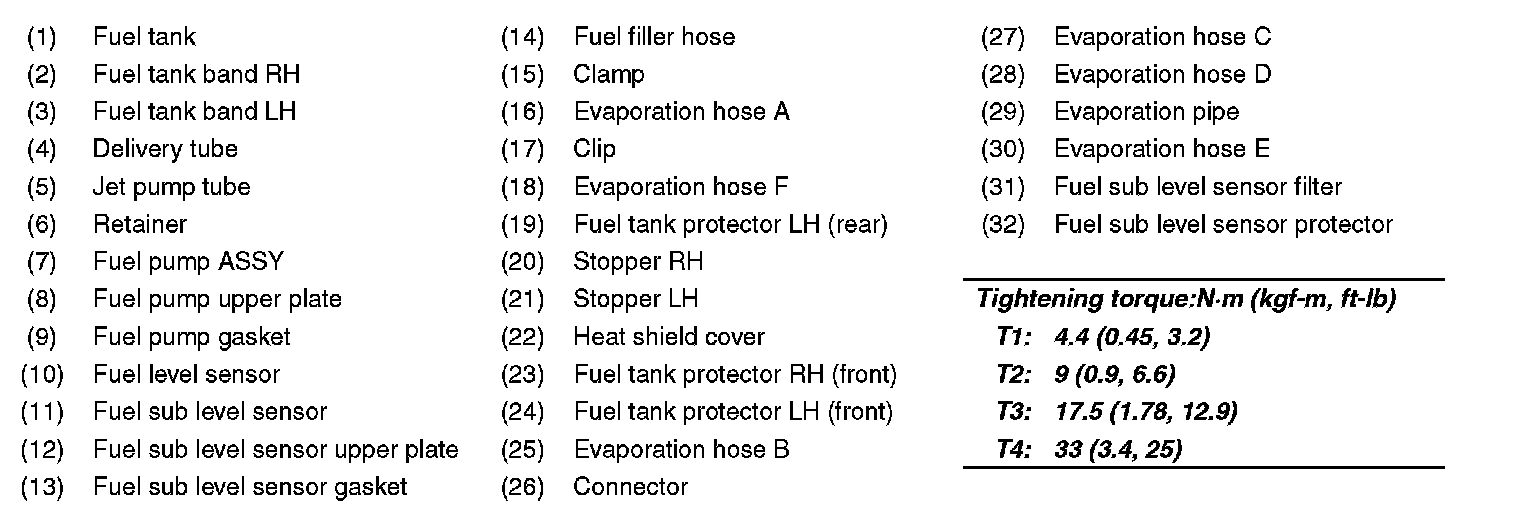

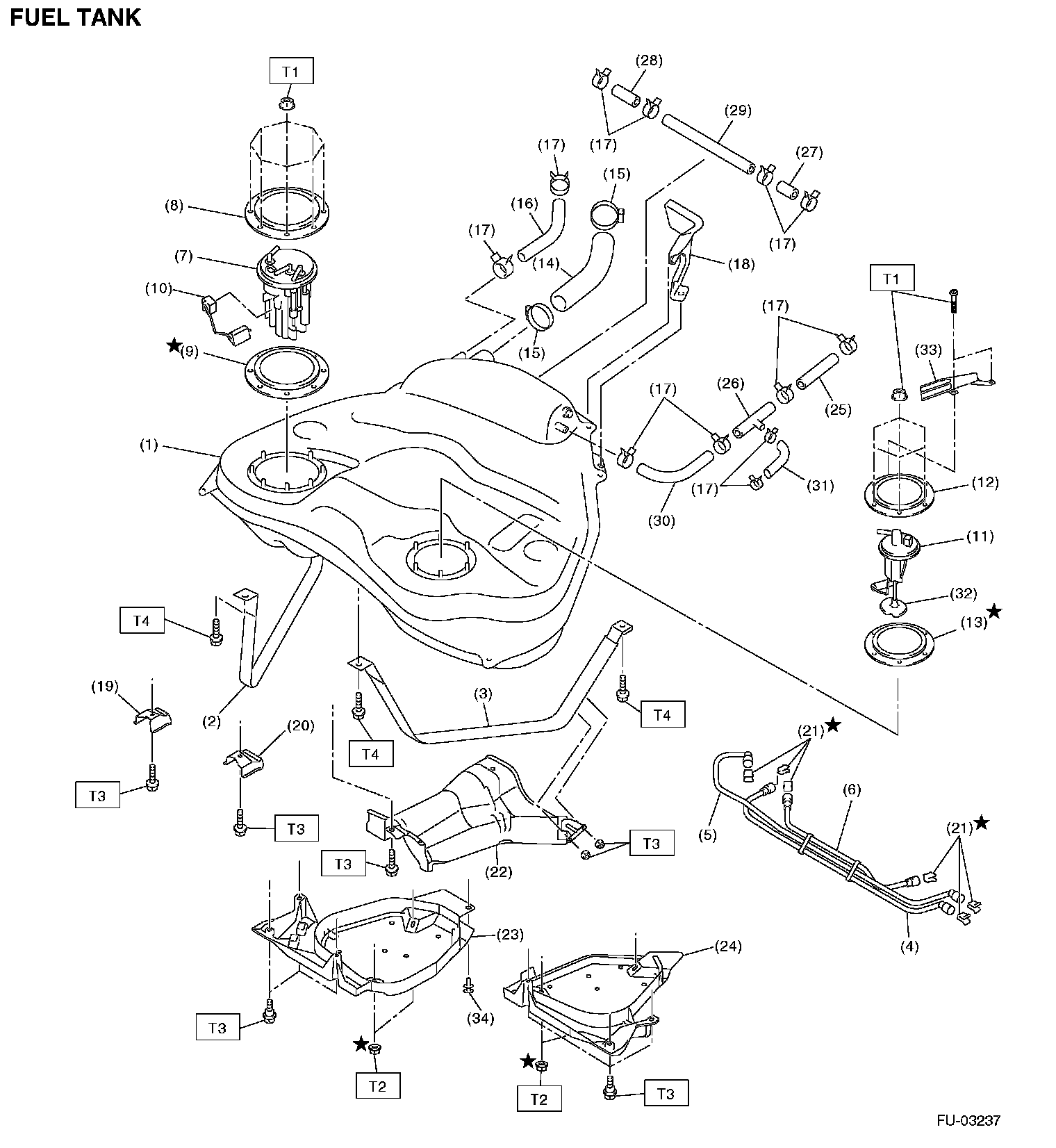

Fuel Tank (Part 1):
Fuel Tank (Part 2):

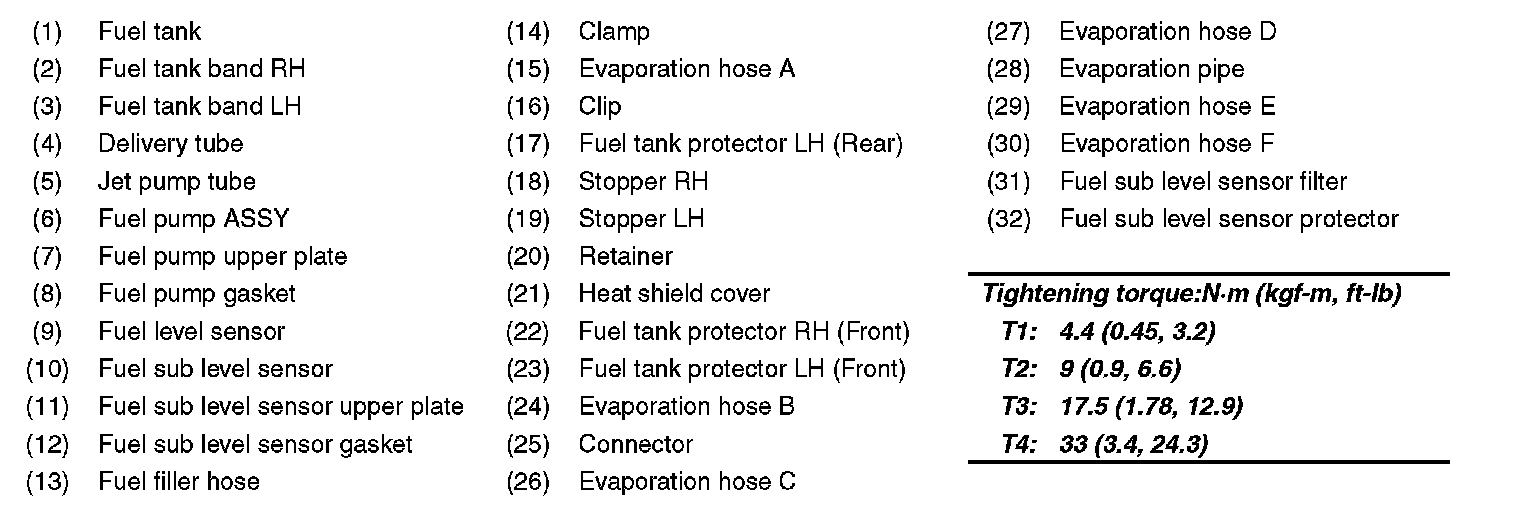

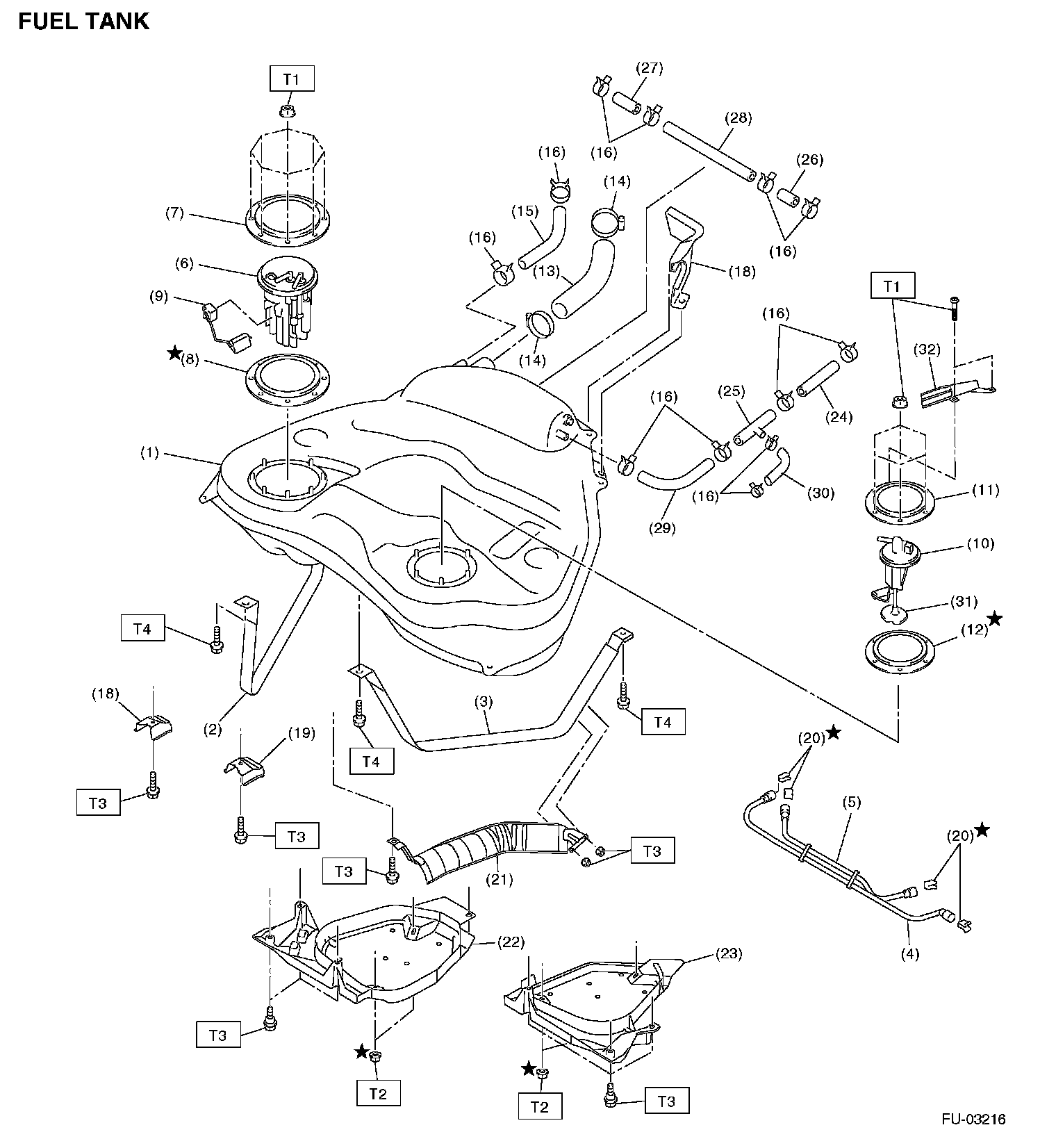

Fuel Tank (Part 1):
Fuel Tank (Part 2):

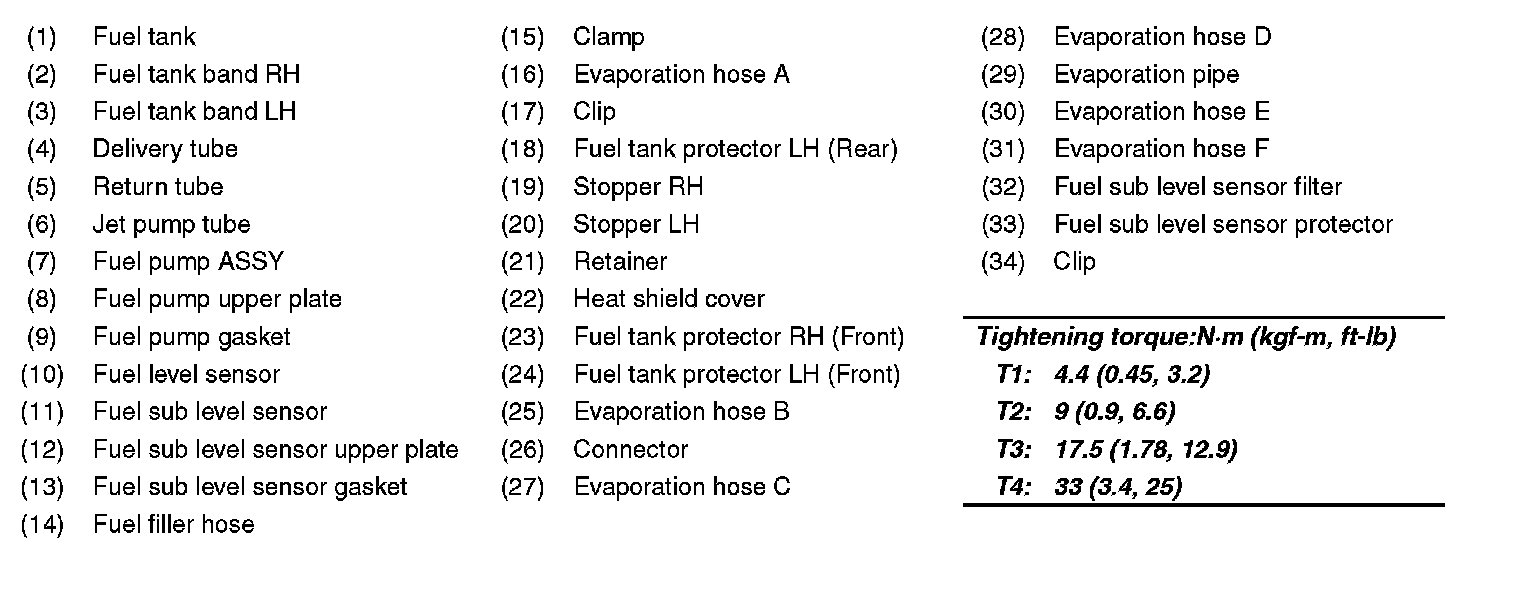

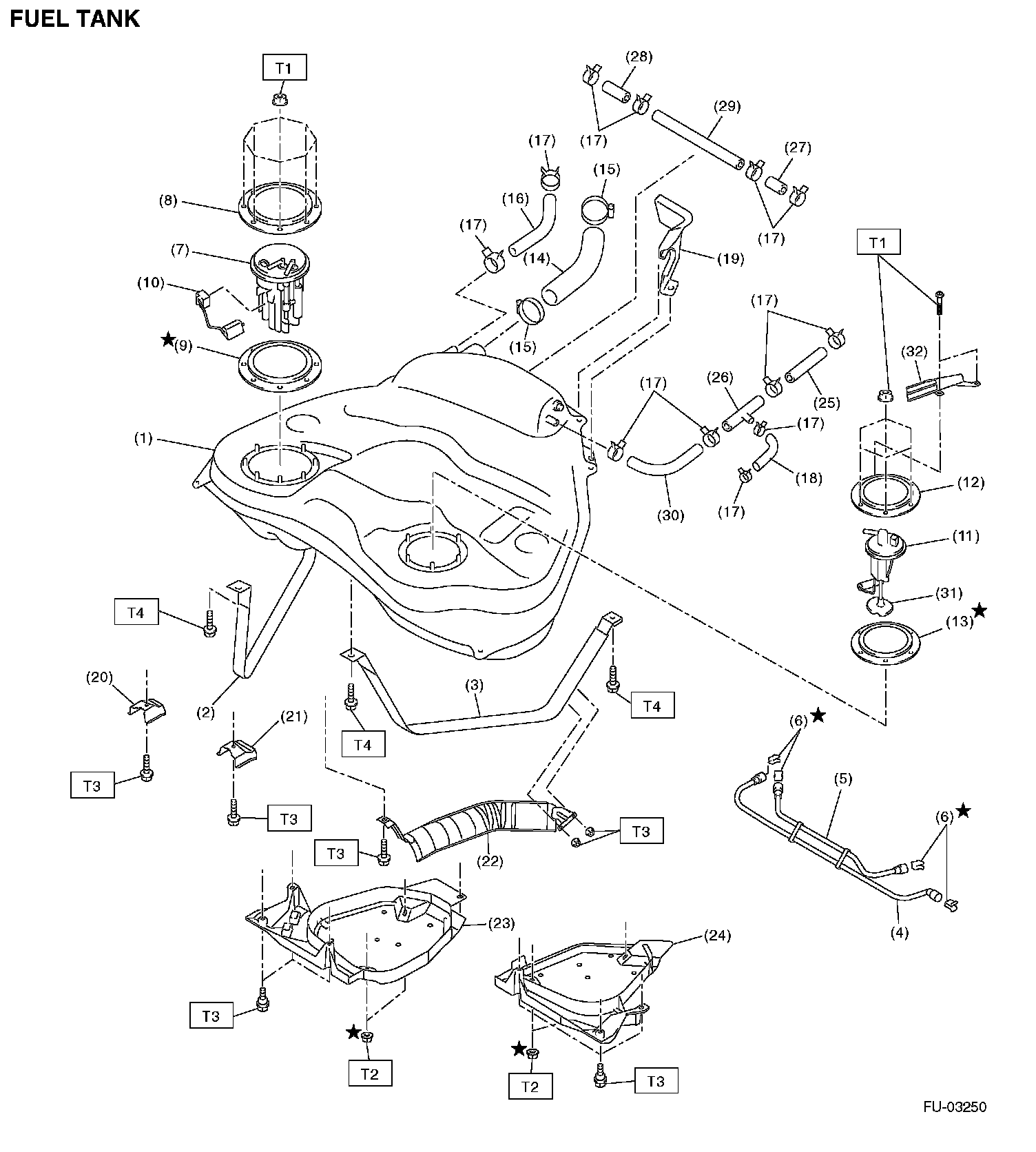

Fuel Tank (Part 1):
Fuel Tank (Part 2):
