Computers and Control Systems: Locations

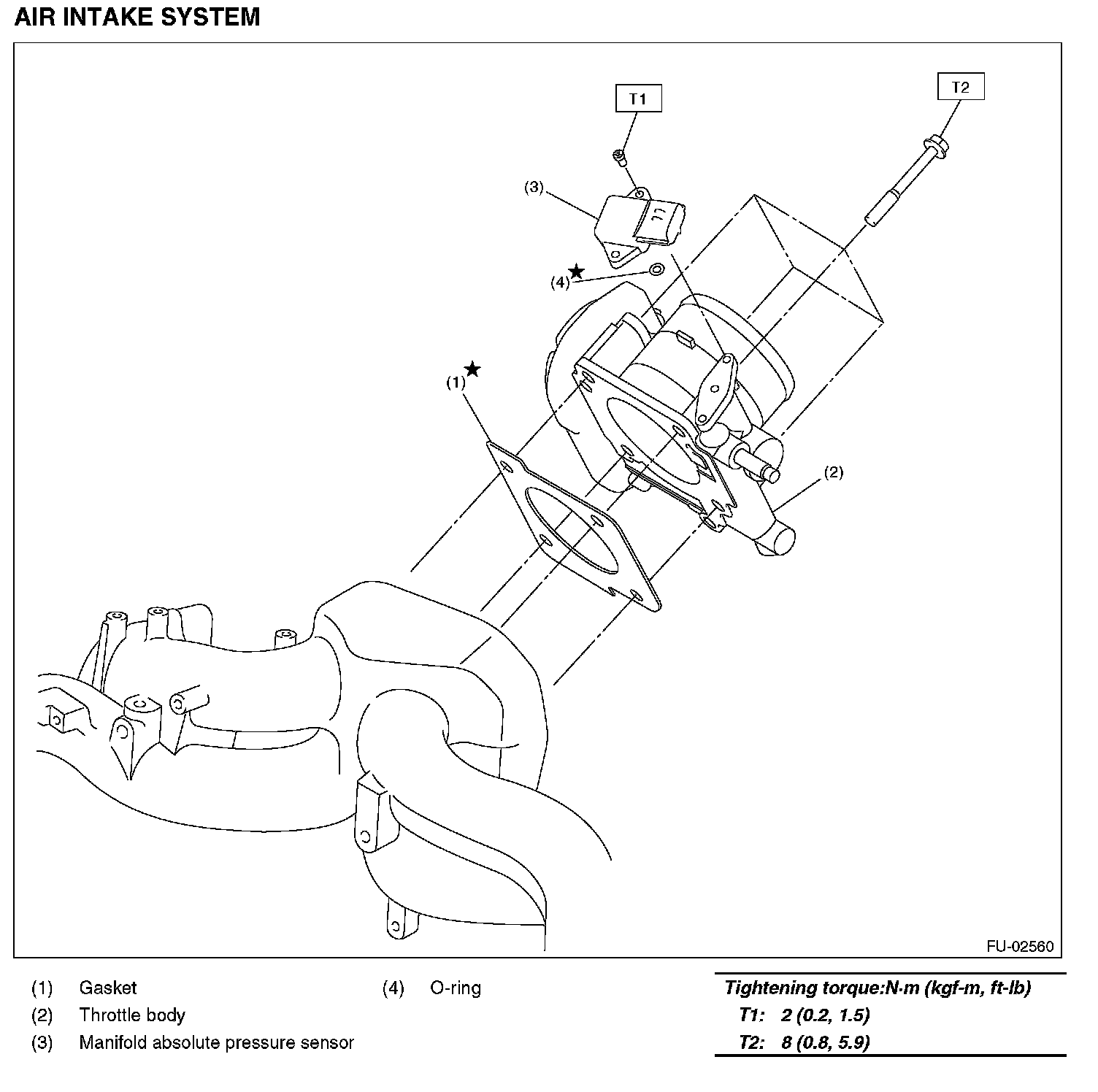

AIR INTAKE SYSTEM

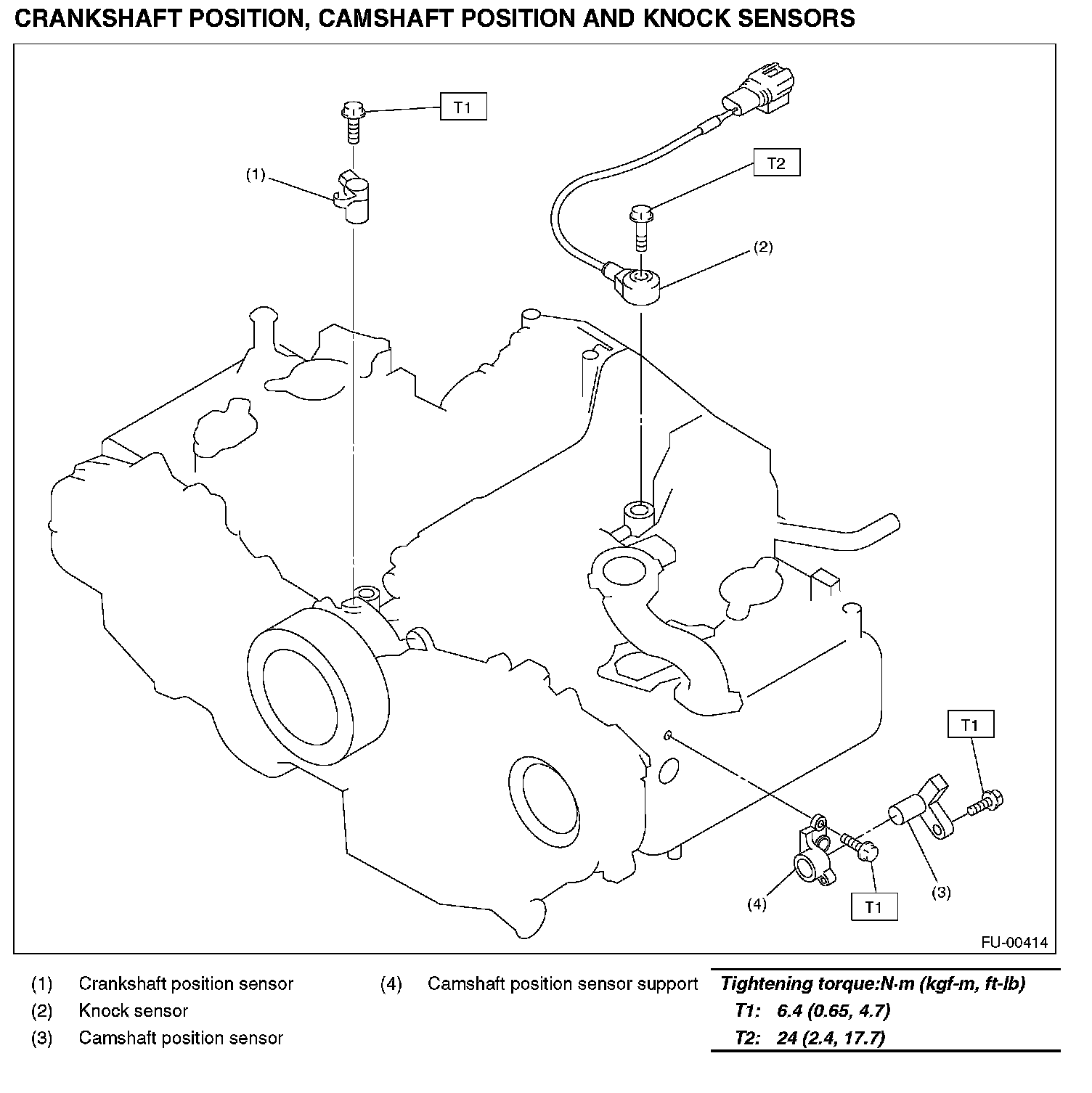

CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS
ENGINE

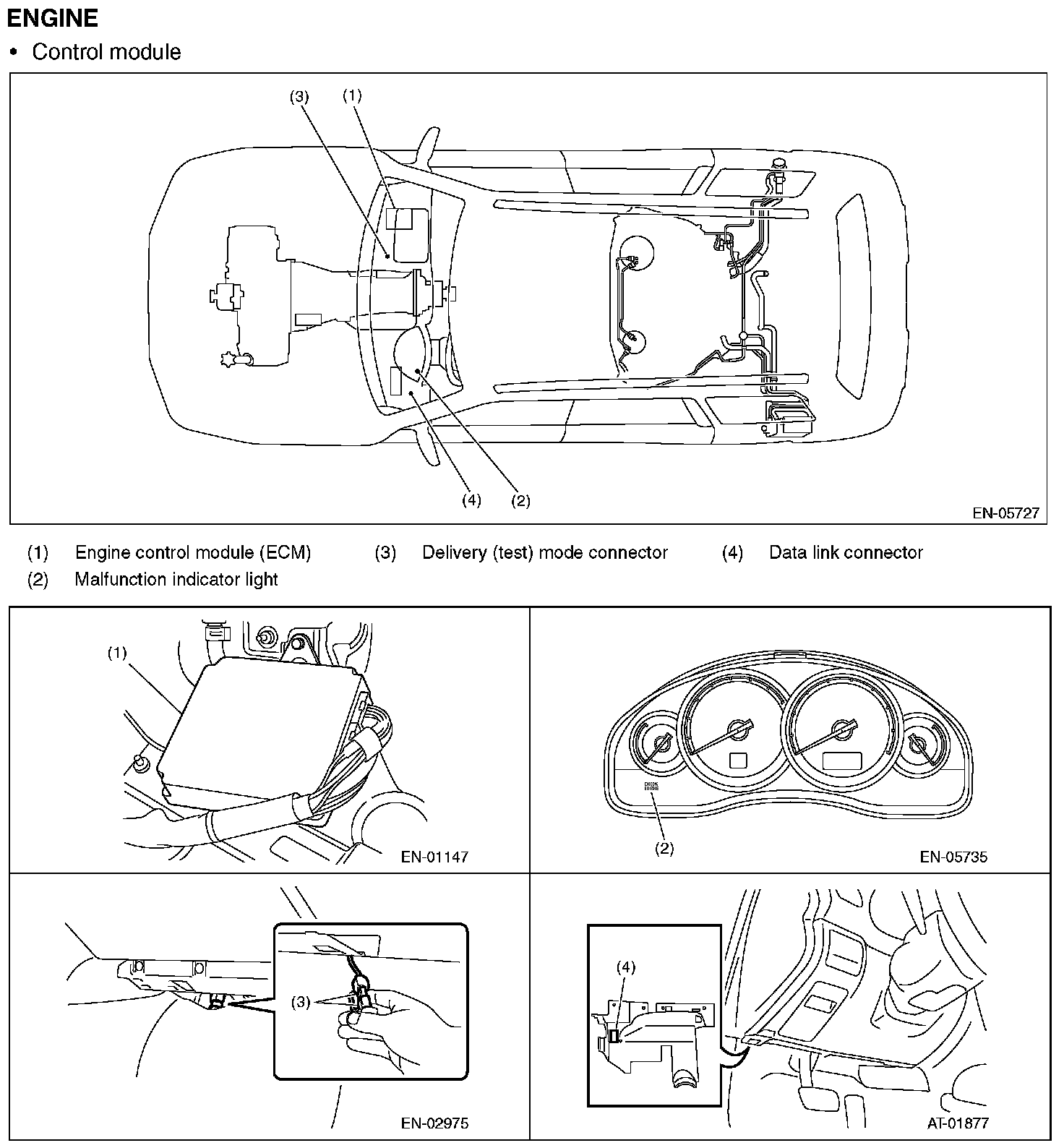

Control module
Control Module:
Sensor

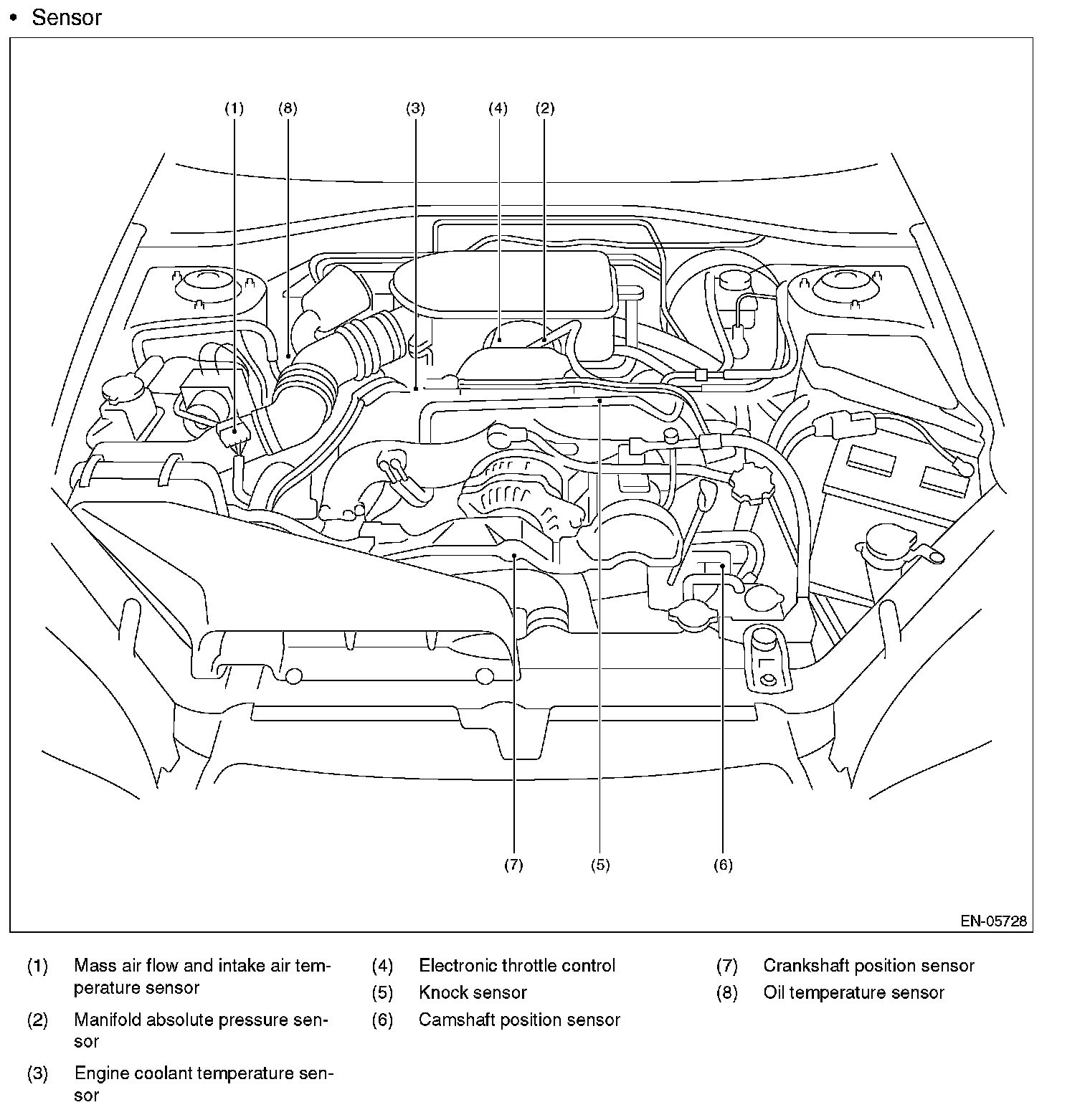

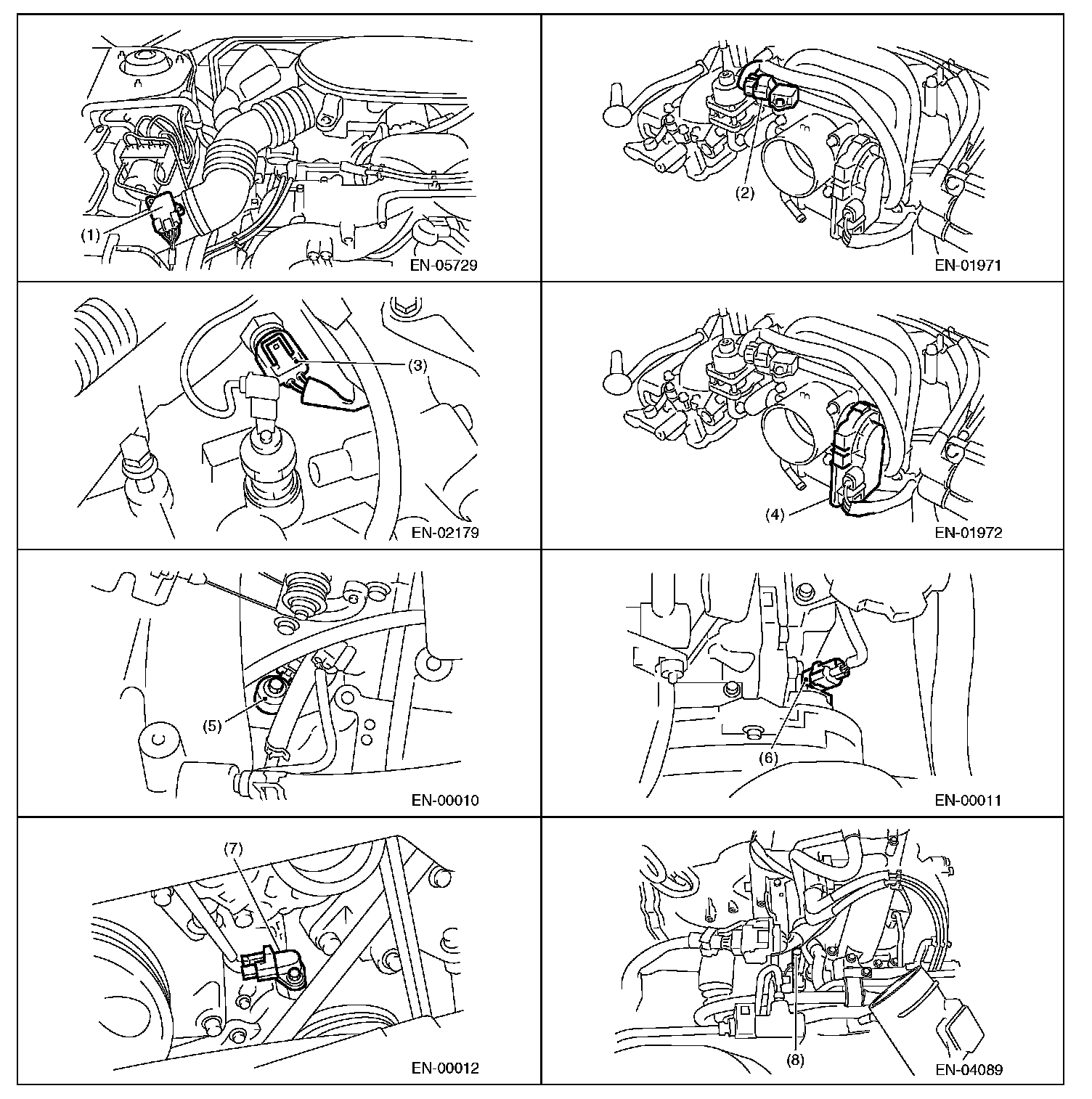

Sensor (Part 1):

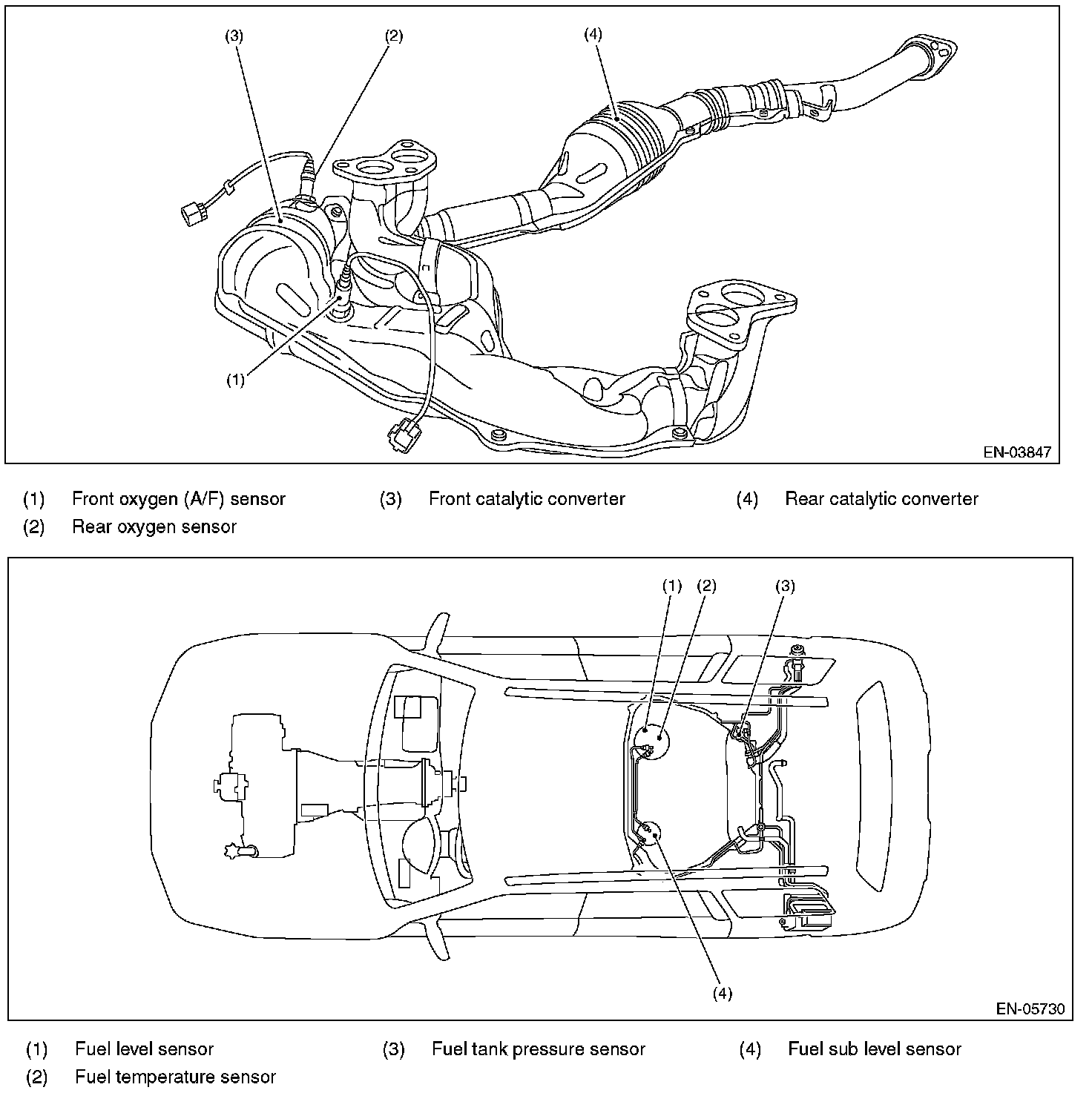

Sensor (Part 2):
Sensor (Part 3):

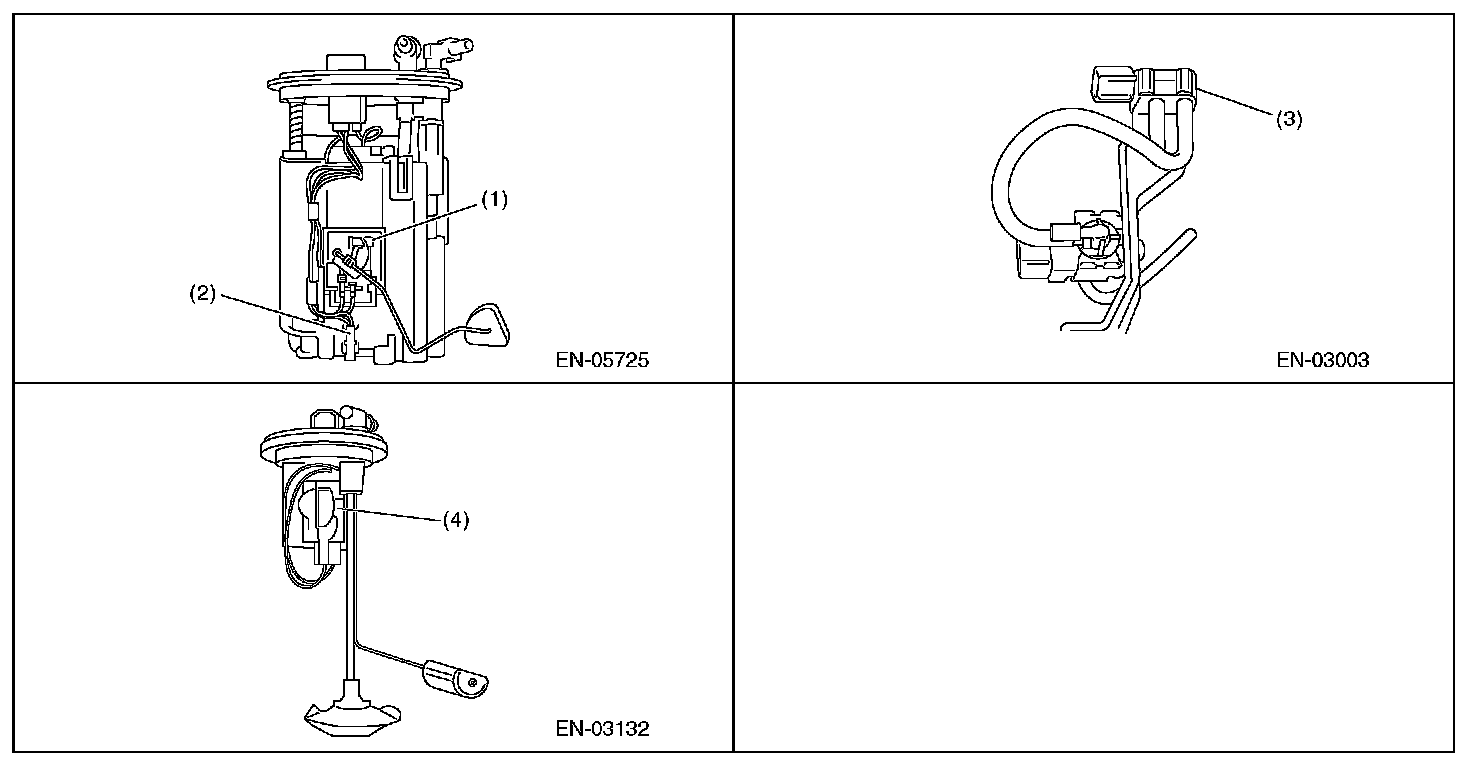

Sensor (Part 4):
Solenoid valve, actuator, emission control system parts and ignition system parts

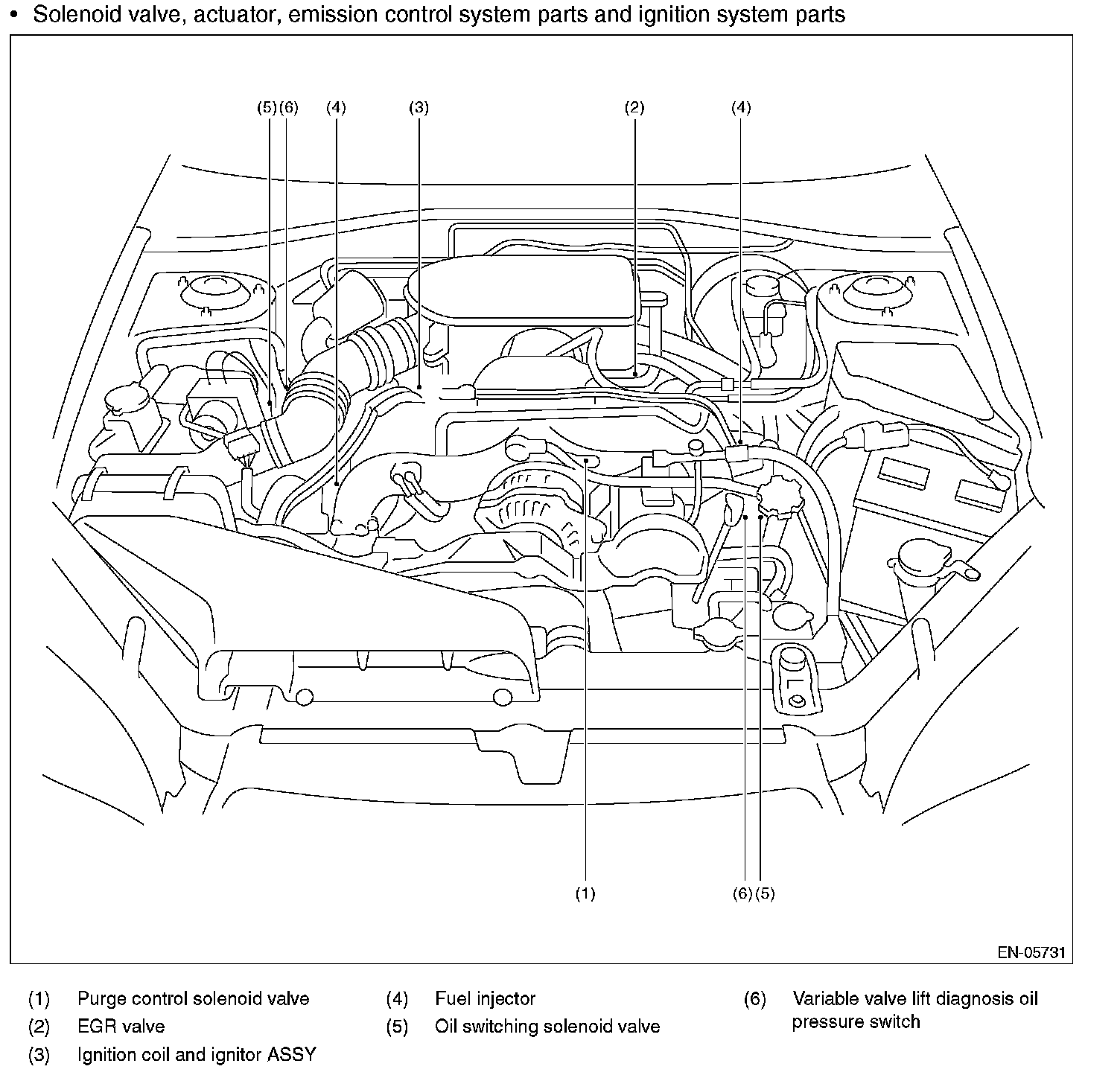

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 1):

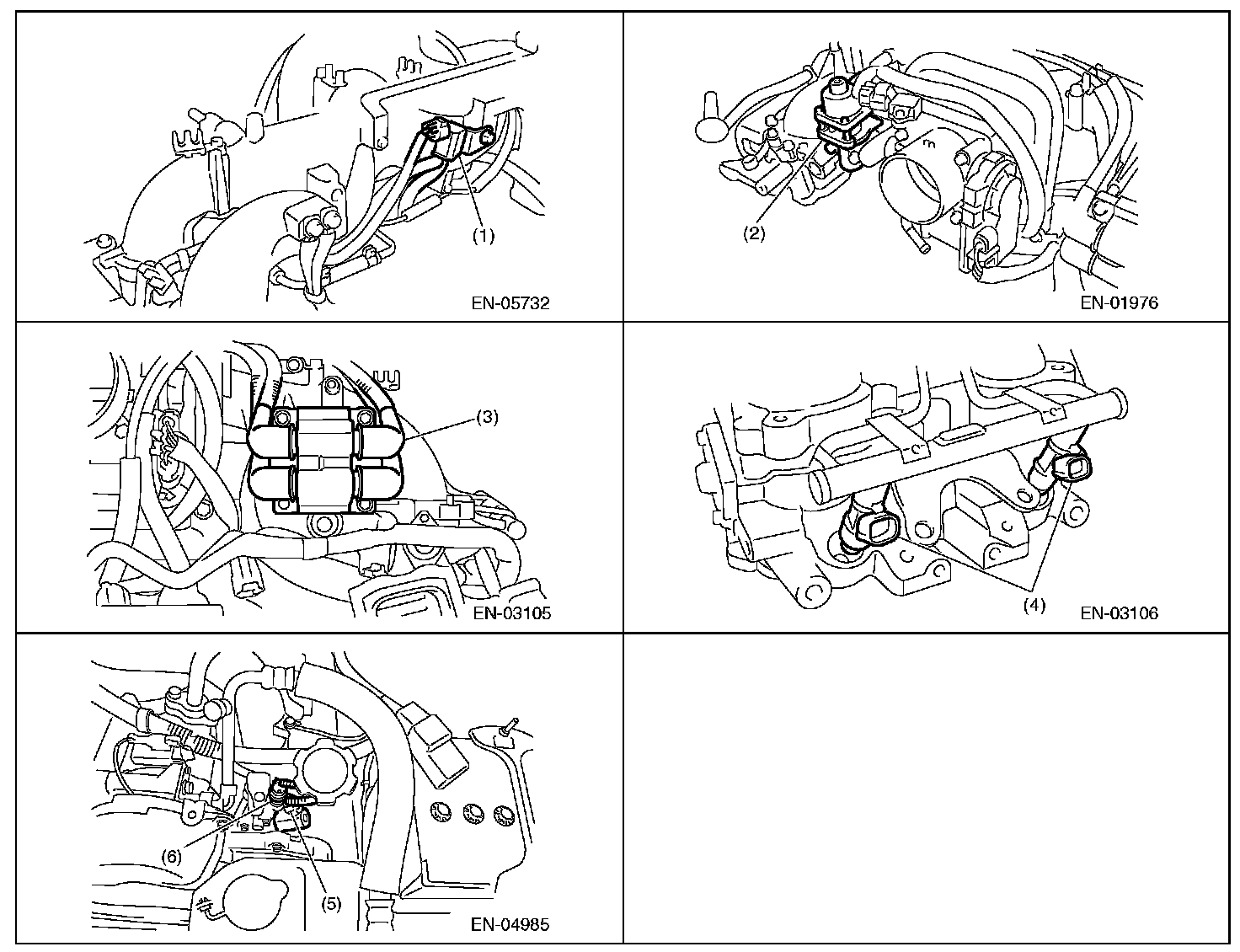

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 2):

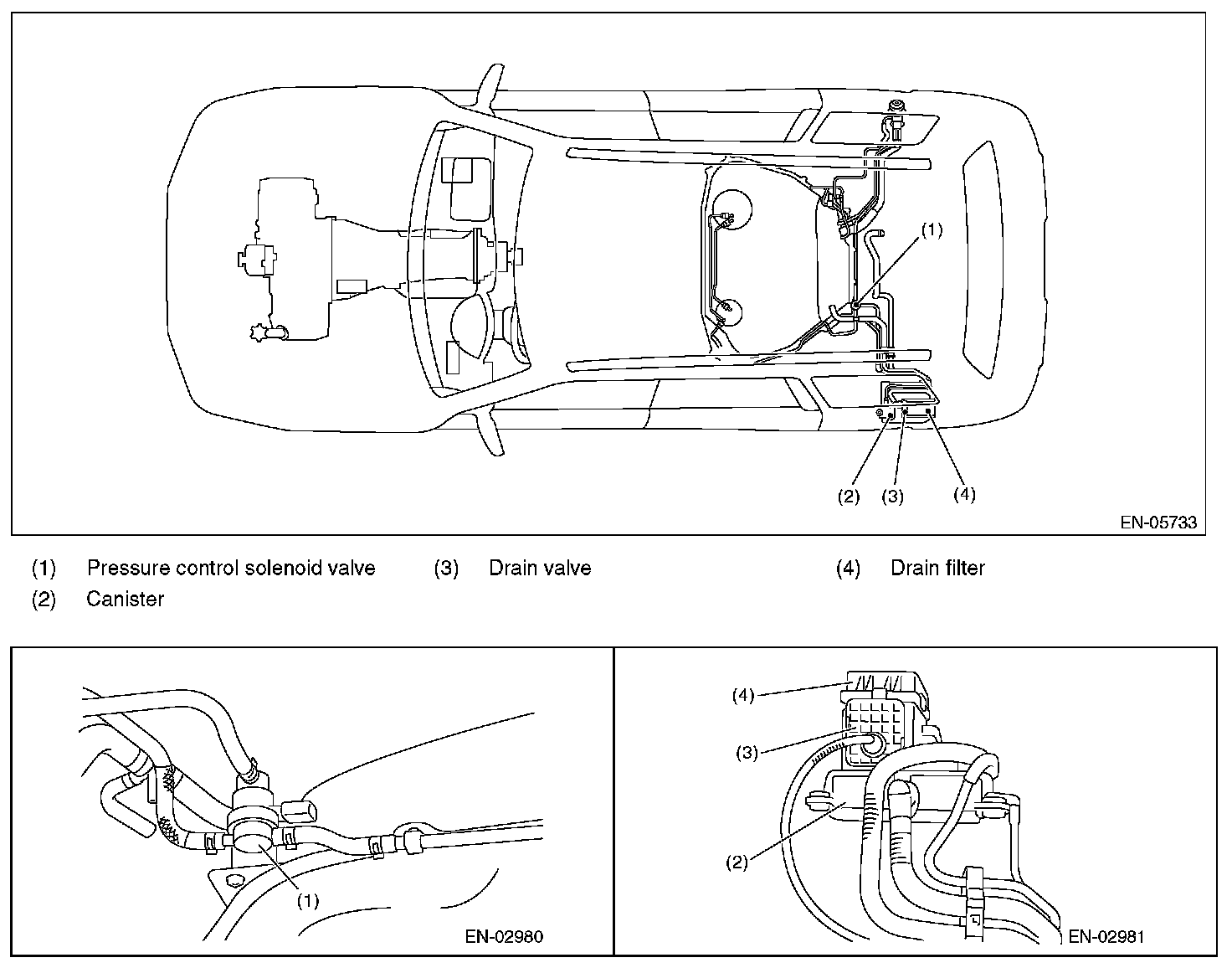

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 3):
Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 4):
