Mode 6 Data
MODE $06
Refer to test value of troubleshooting and data of test limit indicated on the support data bit sequence table.

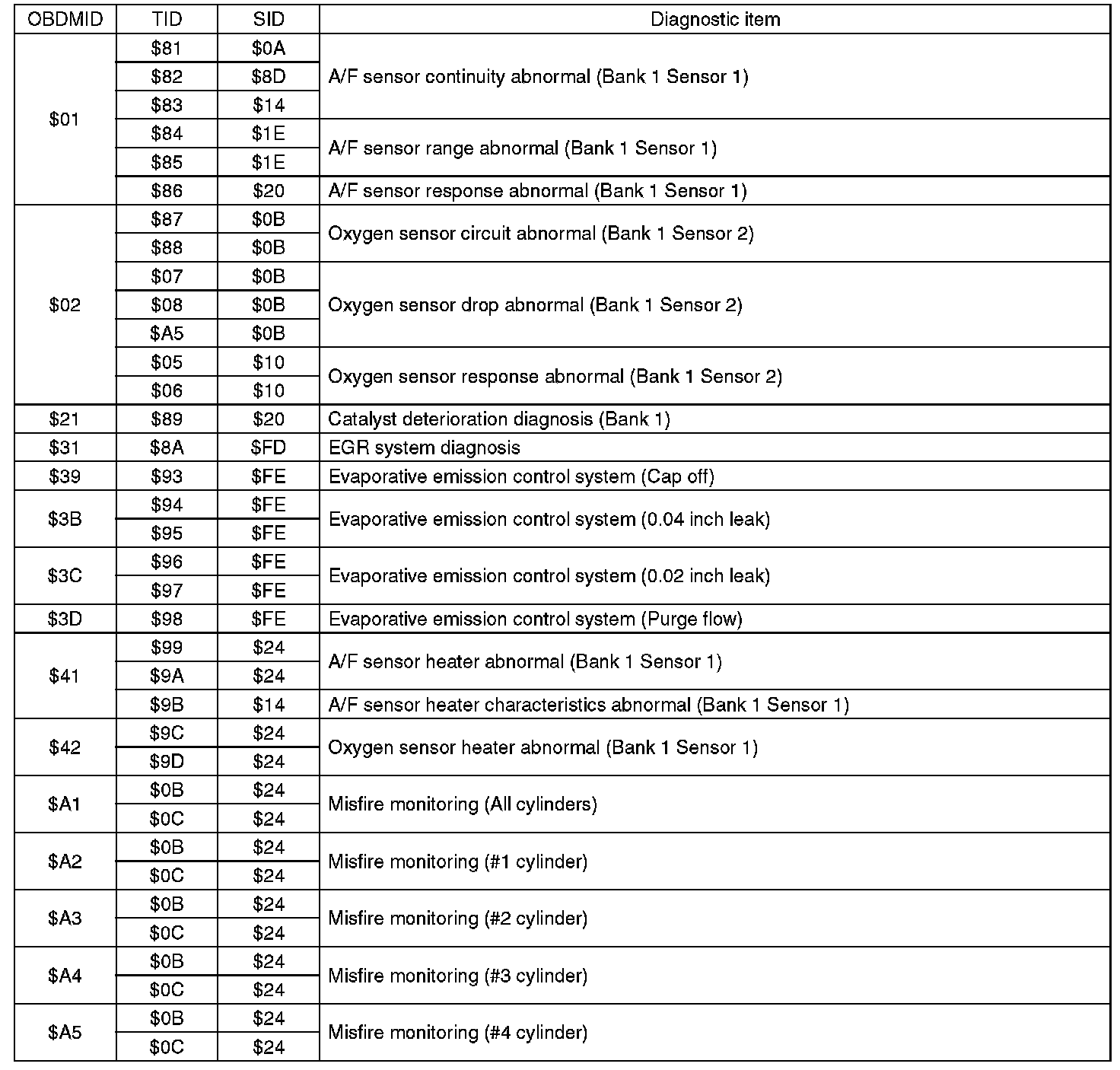

A list of the support data is shown in the following table.
