Ignition Control Module: Testing and Inspection
Ignition Coil And Ignitor AssemblyINSPECTION
Check the secondary coil resistance using a tester. Replace if defective.
CAUTION:
- If the resistance is extremely low, it indicates the presence of a short-circuit.
- Ignitor is integrated with the coil. Therefore the resistance of primary side coil cannot be measured.

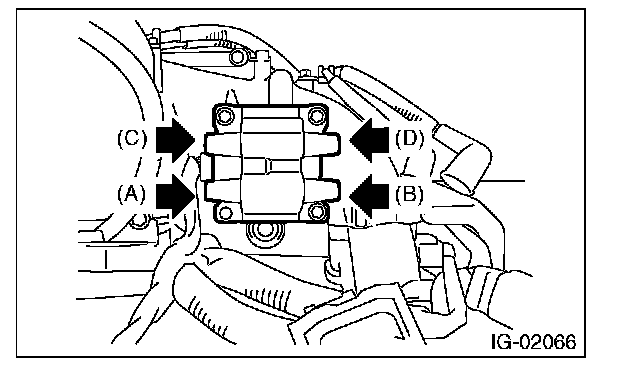

Specified resistance:
[Secondary side]
Between (A) and (B): 11.2 k ohms ± 15%
Between (C) and (D): 11.2 k ohms ± 15%
