Communication for Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS:
Defective harness connector

TROUBLE SYMPTOM:
Subaru Select Monitor communication failure

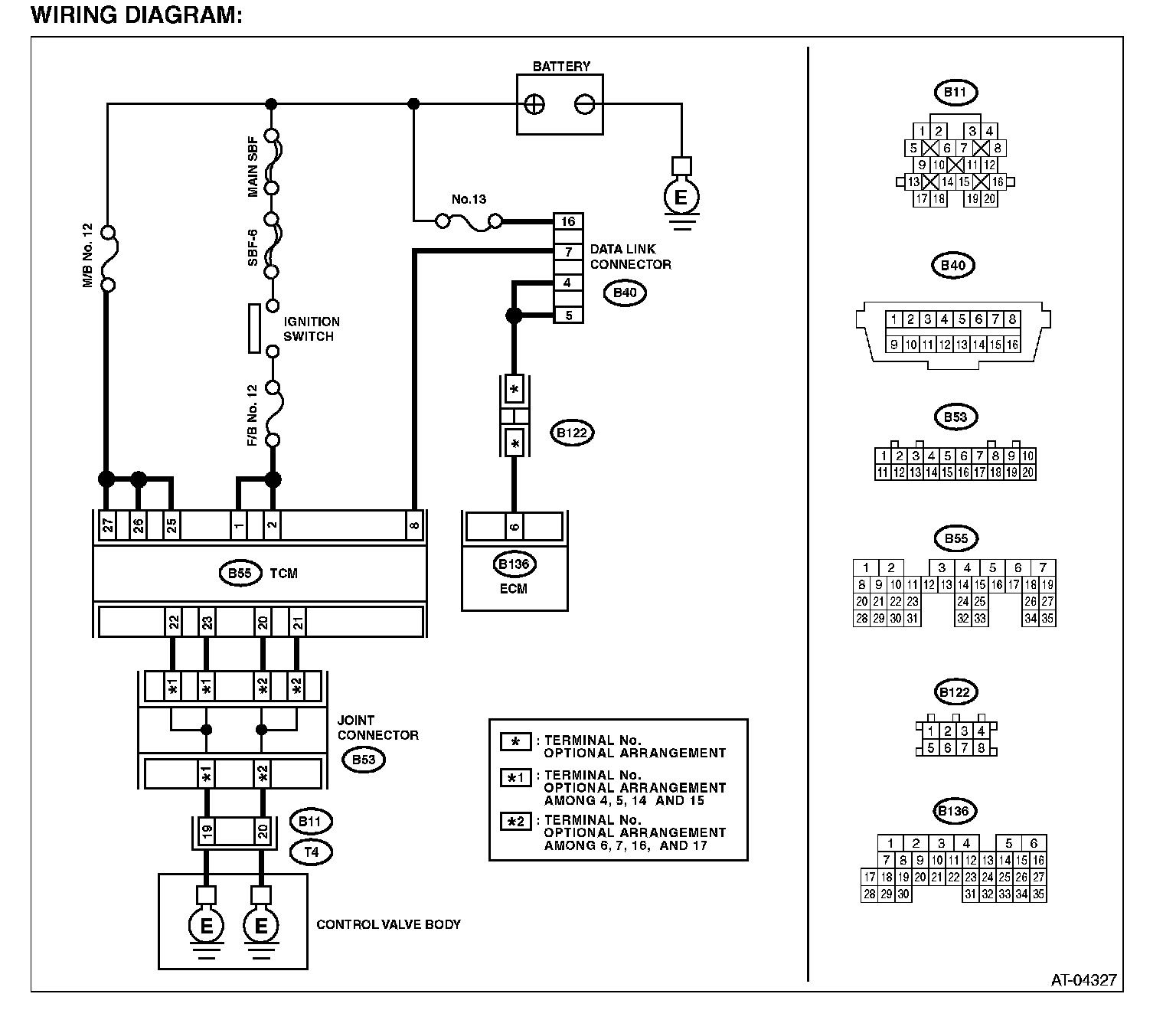

WIRING DIAGRAM:

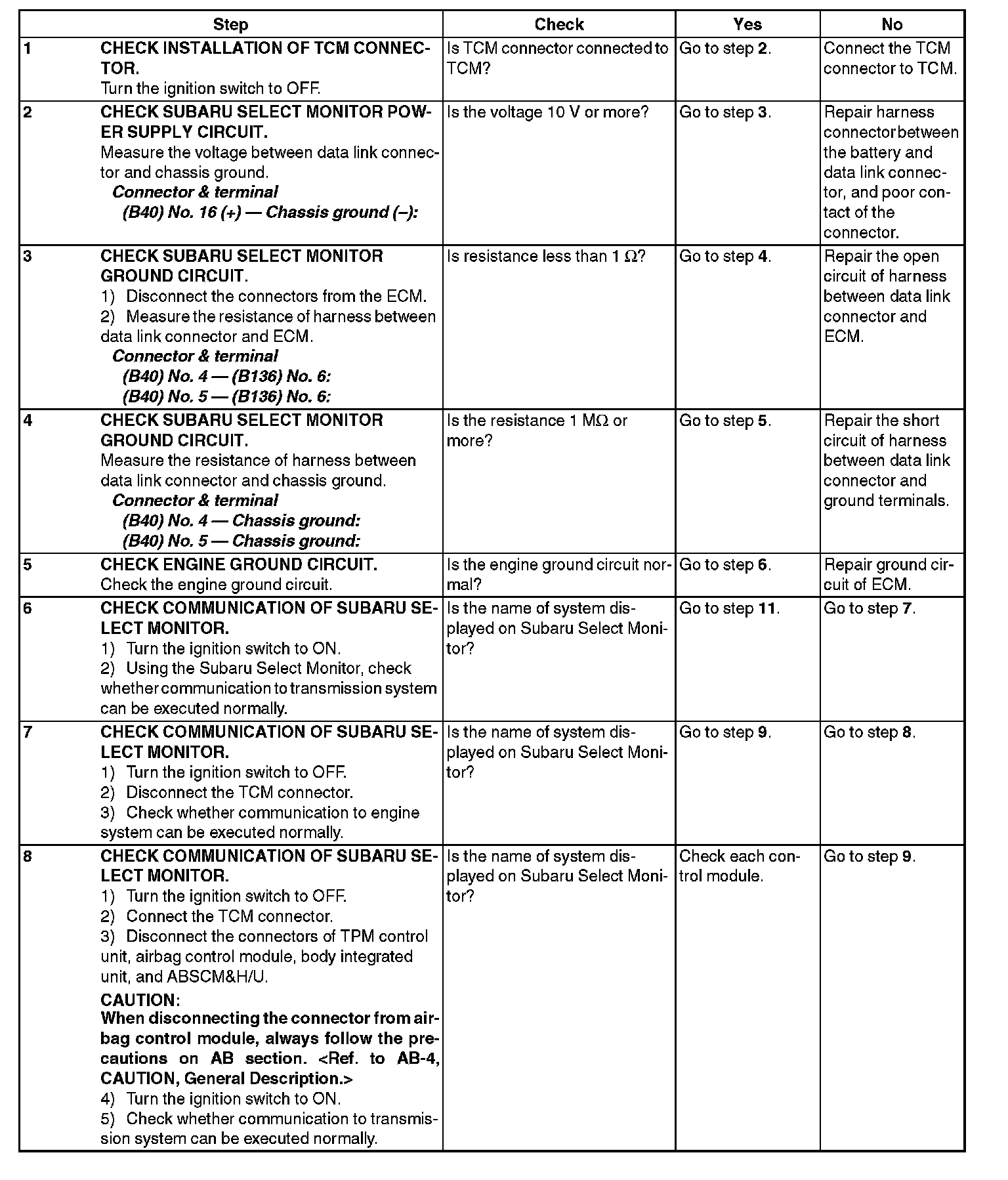

Step 1-Step 8:

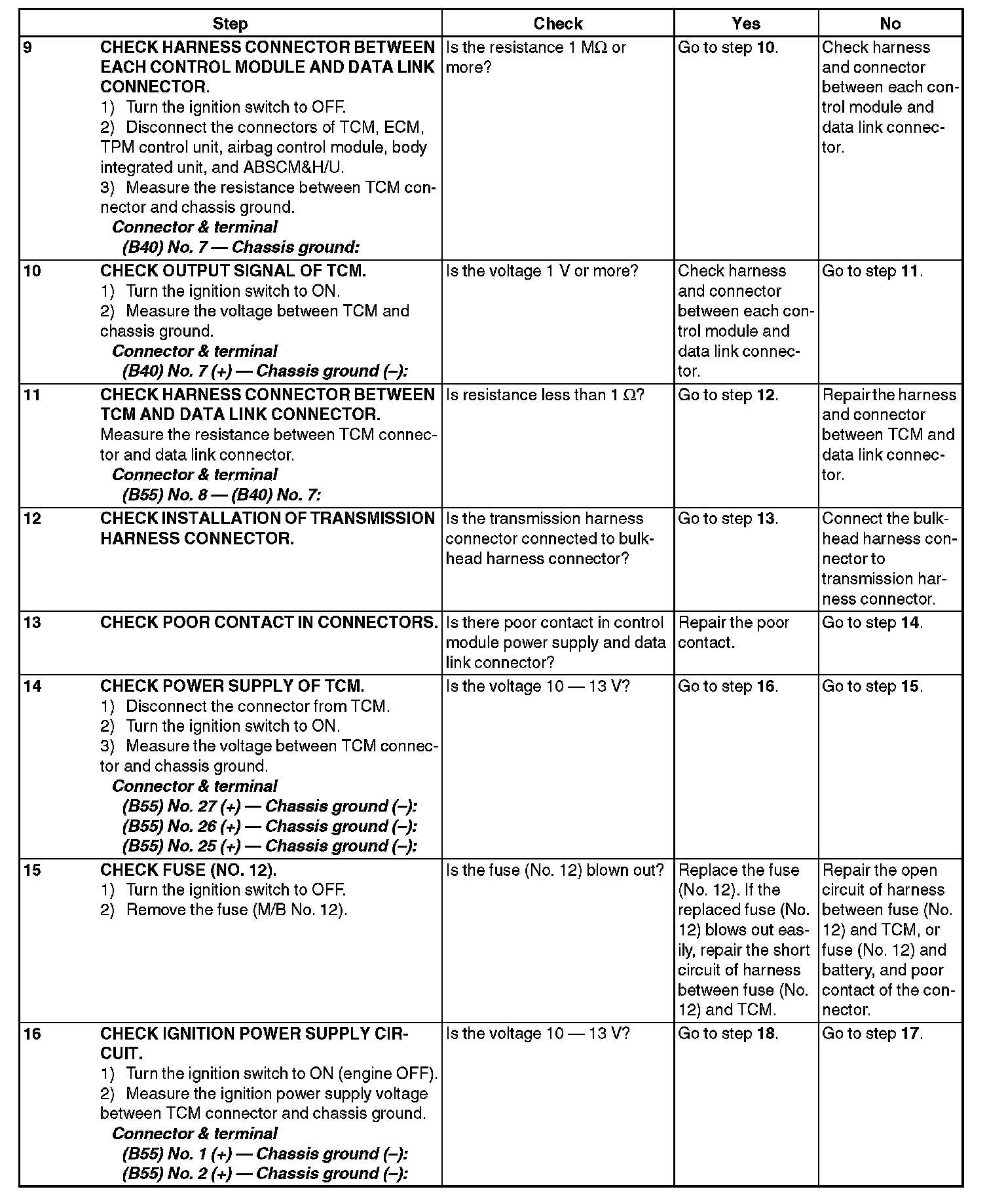

Step 9-Step 16:

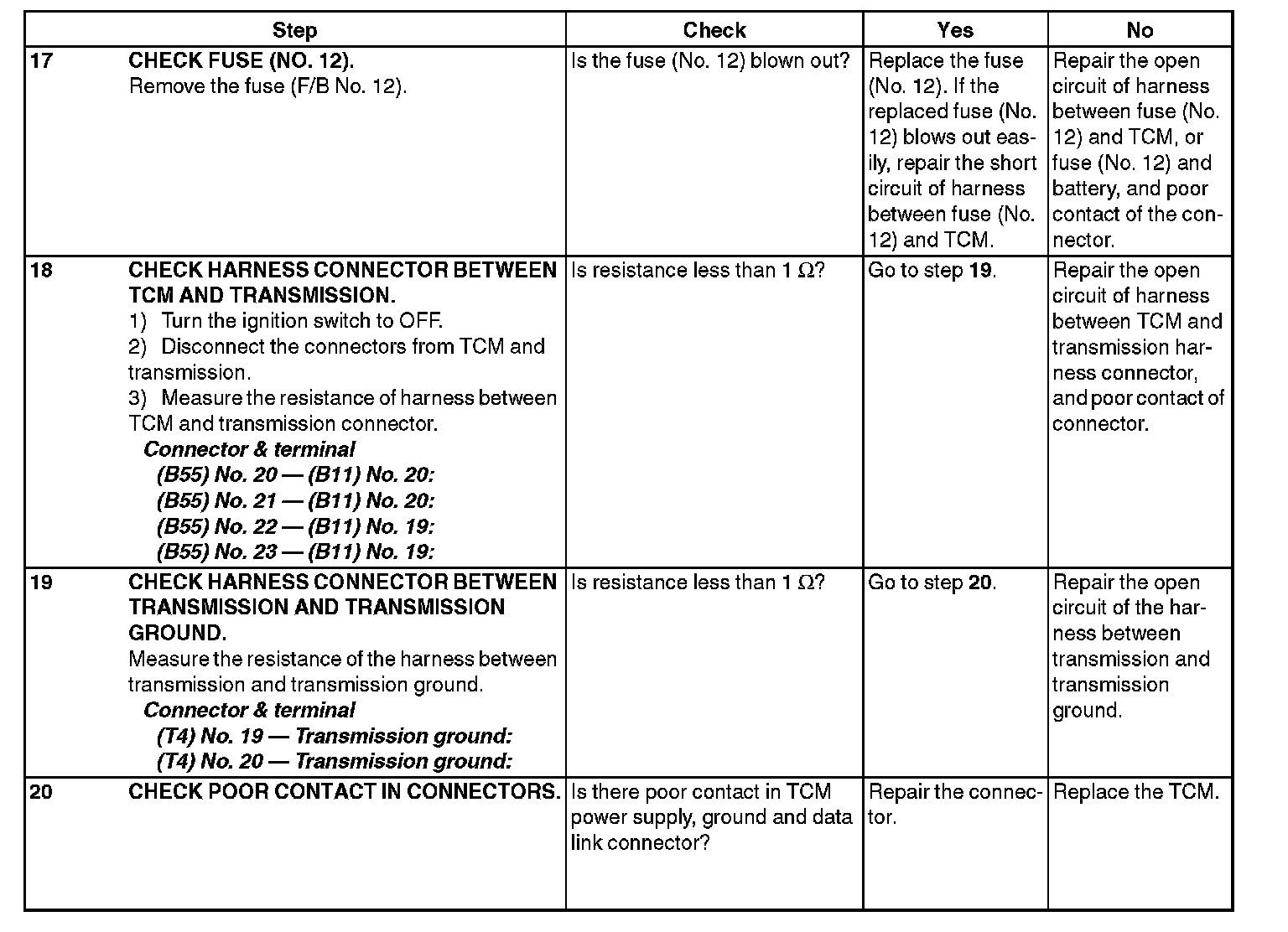

Step 17-Step 20:
