Keyless Entry
Keyless Entry System
ELECTRICAL SPECIFICATION
1.
KEYLESS ENTRY
CONTROL MODULE

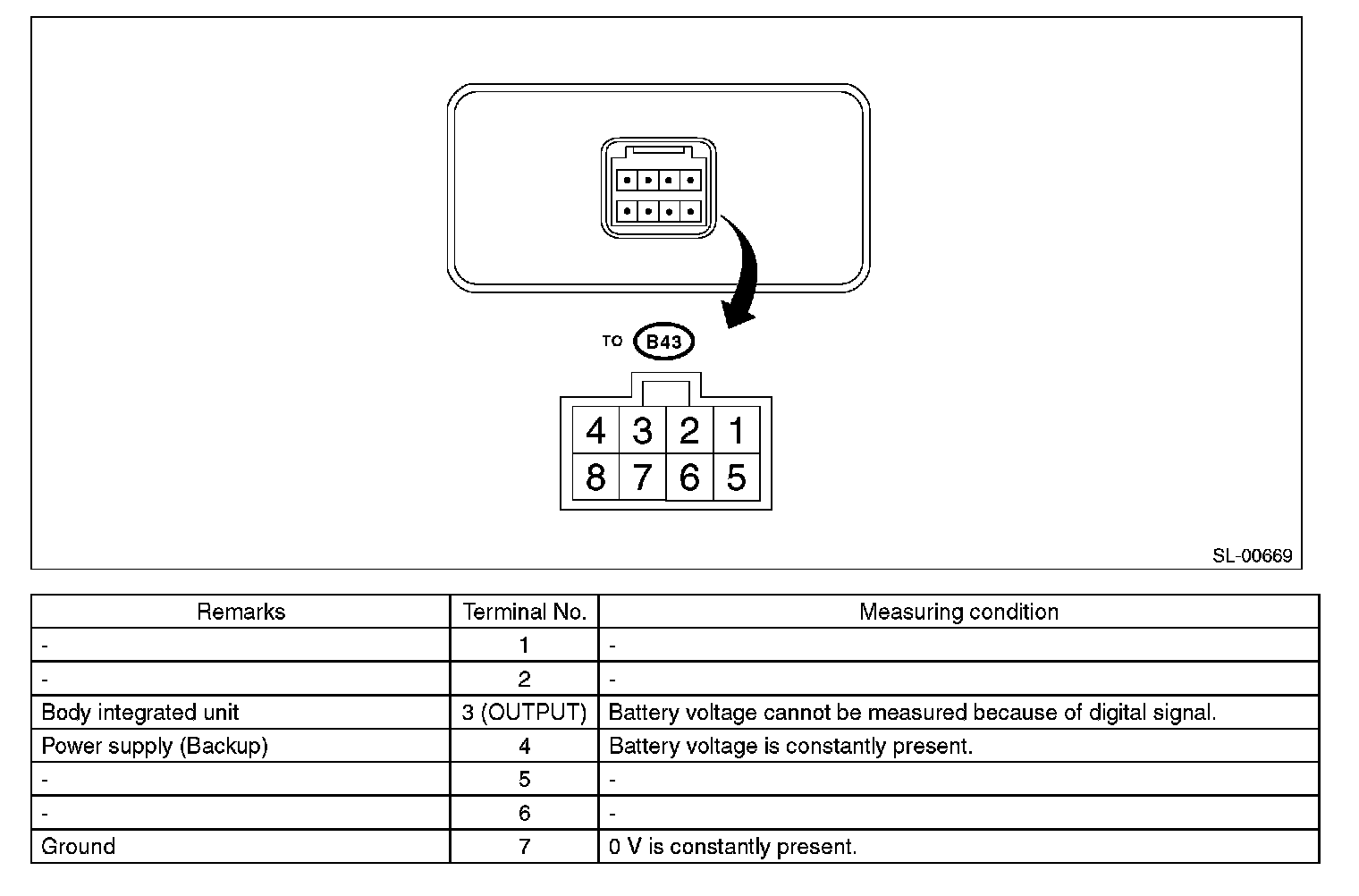

Keyless Entry Control Module:
2.
BODY INTEGRATED UNIT

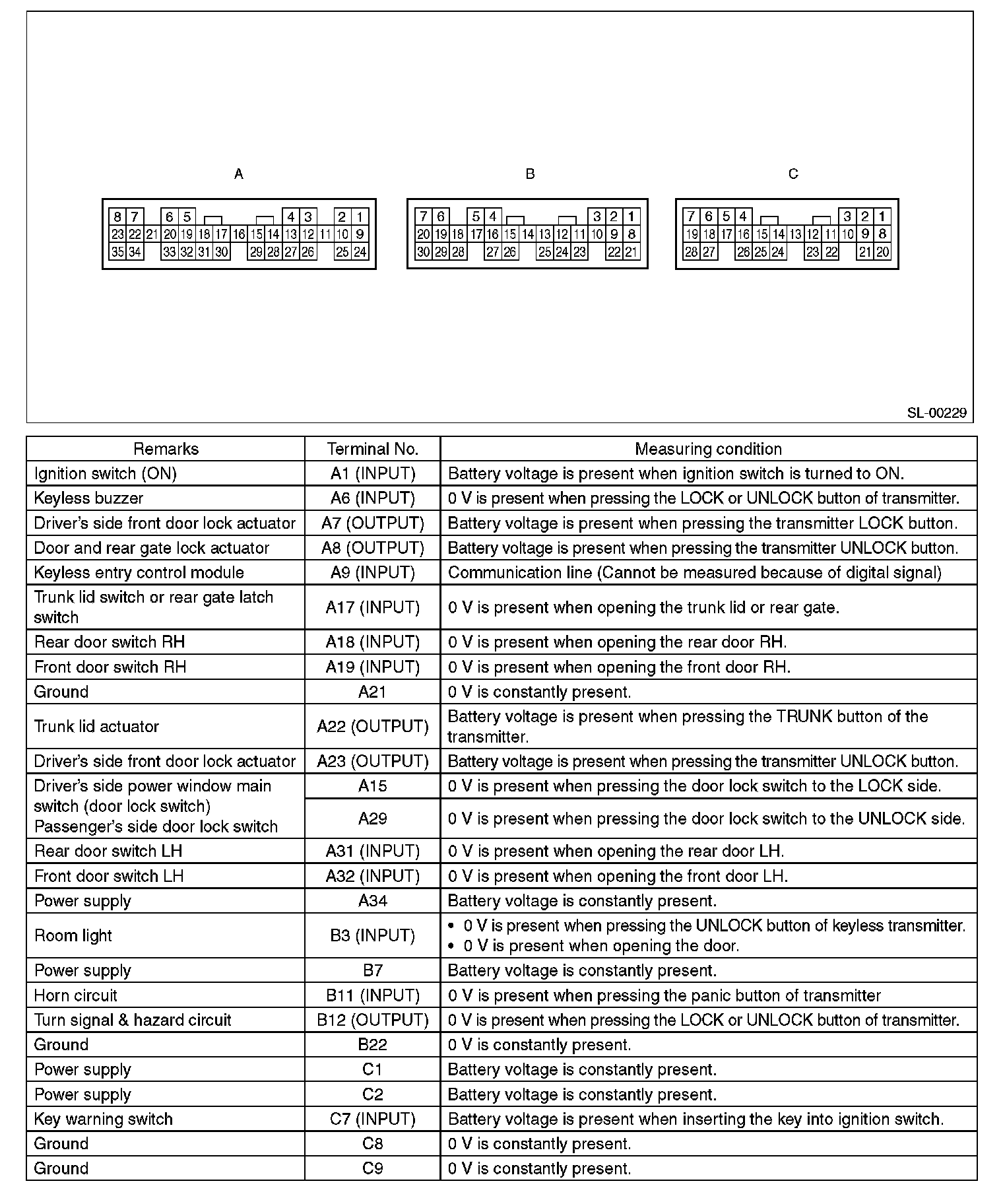

Body Integrated Unit:
