System Specifications

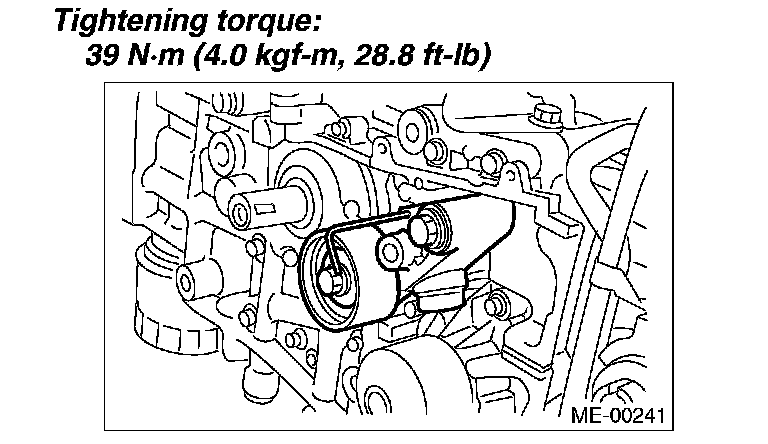

Timing Belt Tensioner

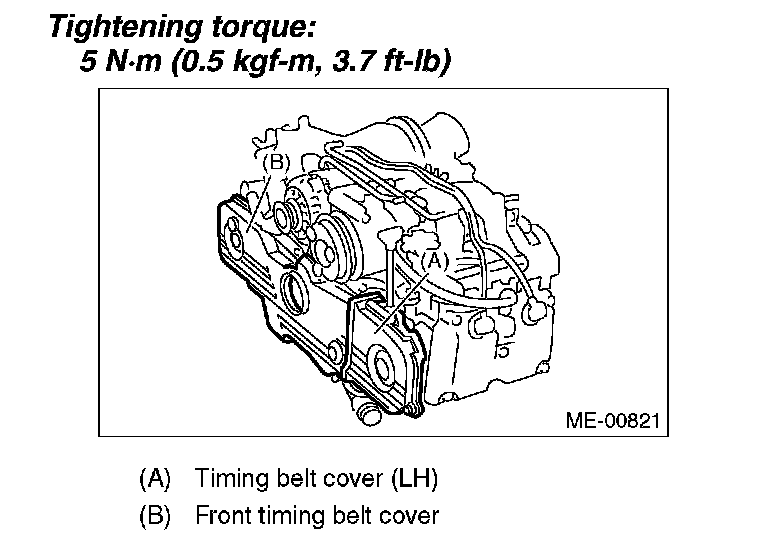

Timing Cover





Crankshaft pully bolt:
Temporarily 44 N-m (4.5 kgf-m, 32.5 ft-lb)
Tighten torque 180 Nm (18.4 kgf-m, 132.8 ft. lb.)
Tightening angle of the crank pulley bolt is 65° or more
