Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

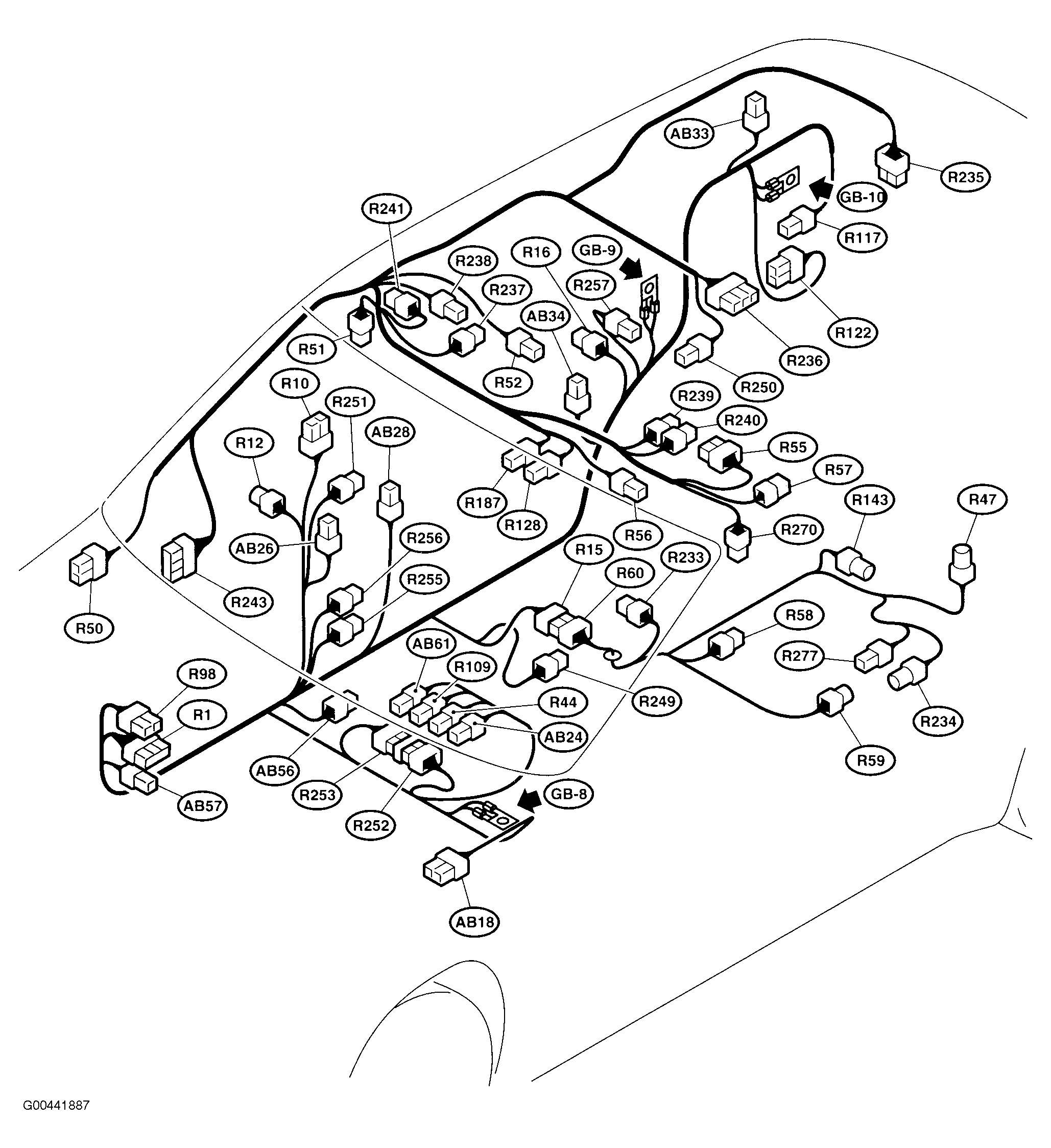

| Airbag Control Module (AB18) | Under center console. See Figure. |
| Auto A/C Control Module (B282 & B283) | Behind right side of dash. See Figure. |
| Body Integrated Unit (B280, B281) | Under front of center console. See Figure. |
| Daytime Running Light Control Module (B96) | Behind left center of dash. See Figure. |

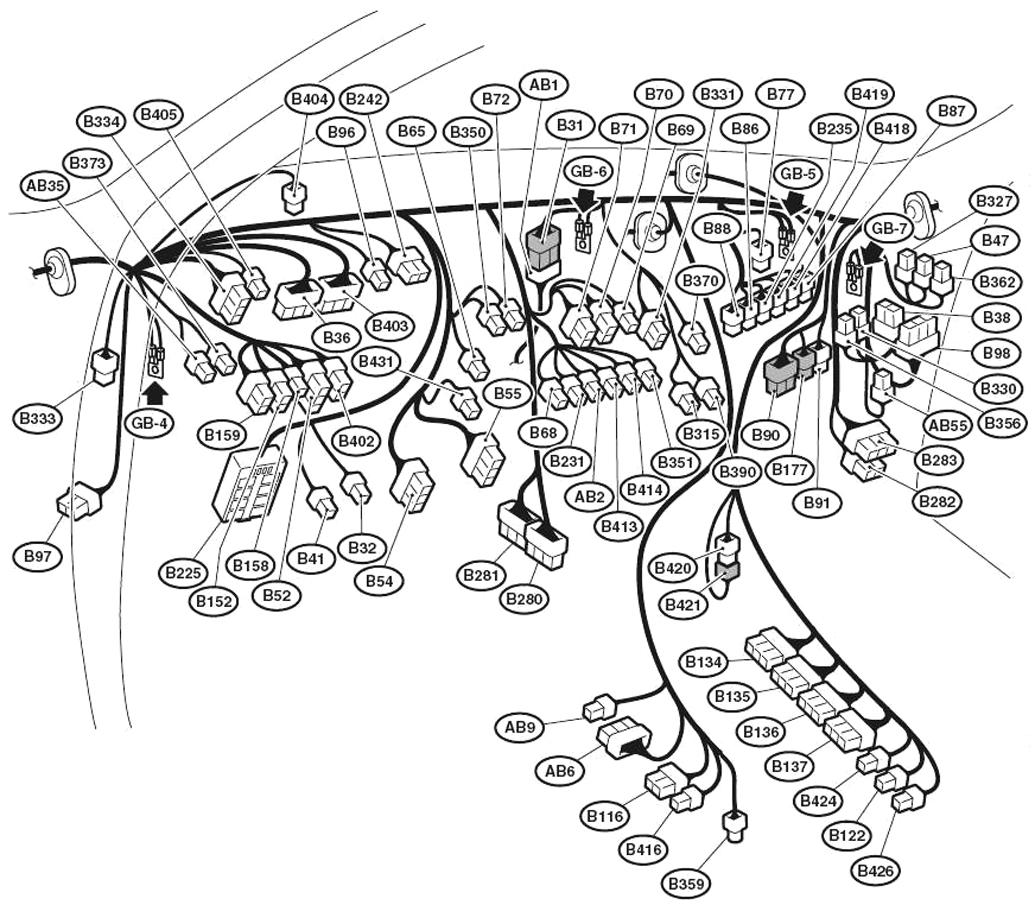

| ECM (Engine Control Module) (B134, B135, B136 & B137) | In passenger side front footwell below carpet and protective panel. See Figure. |

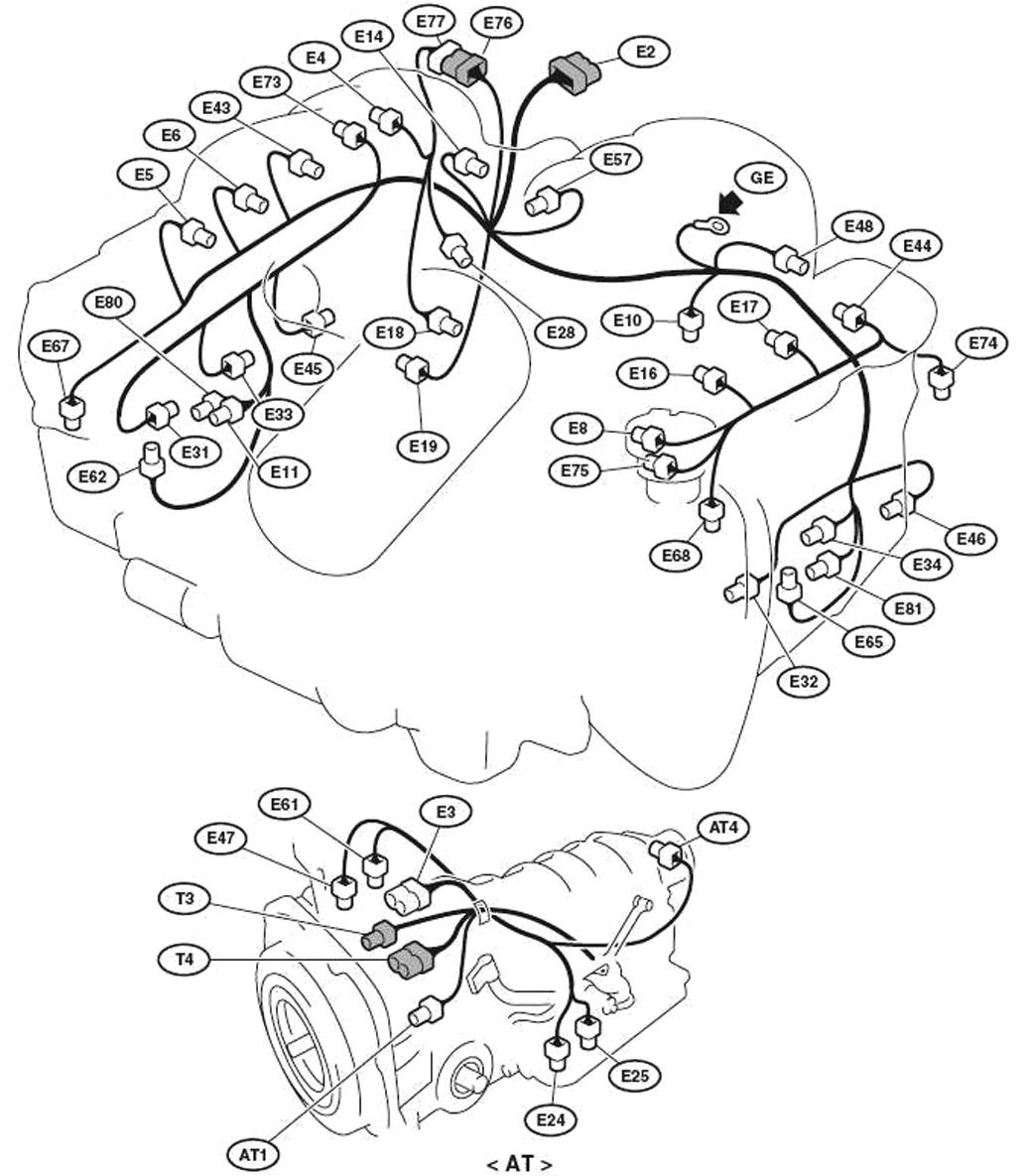

| Electronic Throttle Control (E57) | Right rear of engine. See Figure. |
| Fuel Pump Control Unit (R122) | At right "D" pillar. See Figure. |

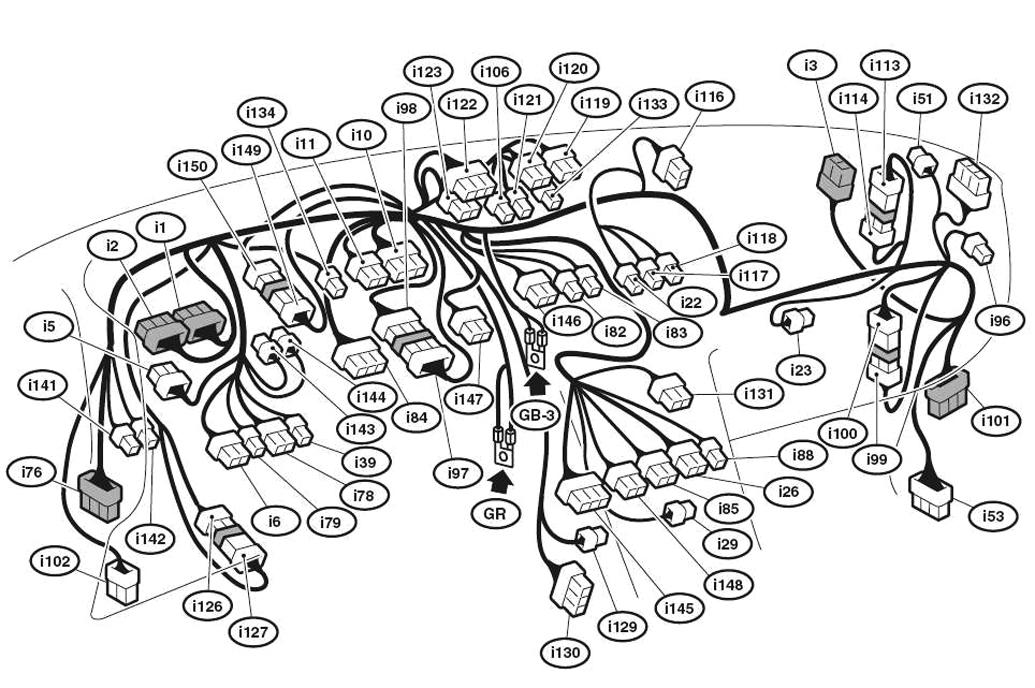

| Keyless Entry Control Module (i96) | Behind right side of dash. See Figure. |

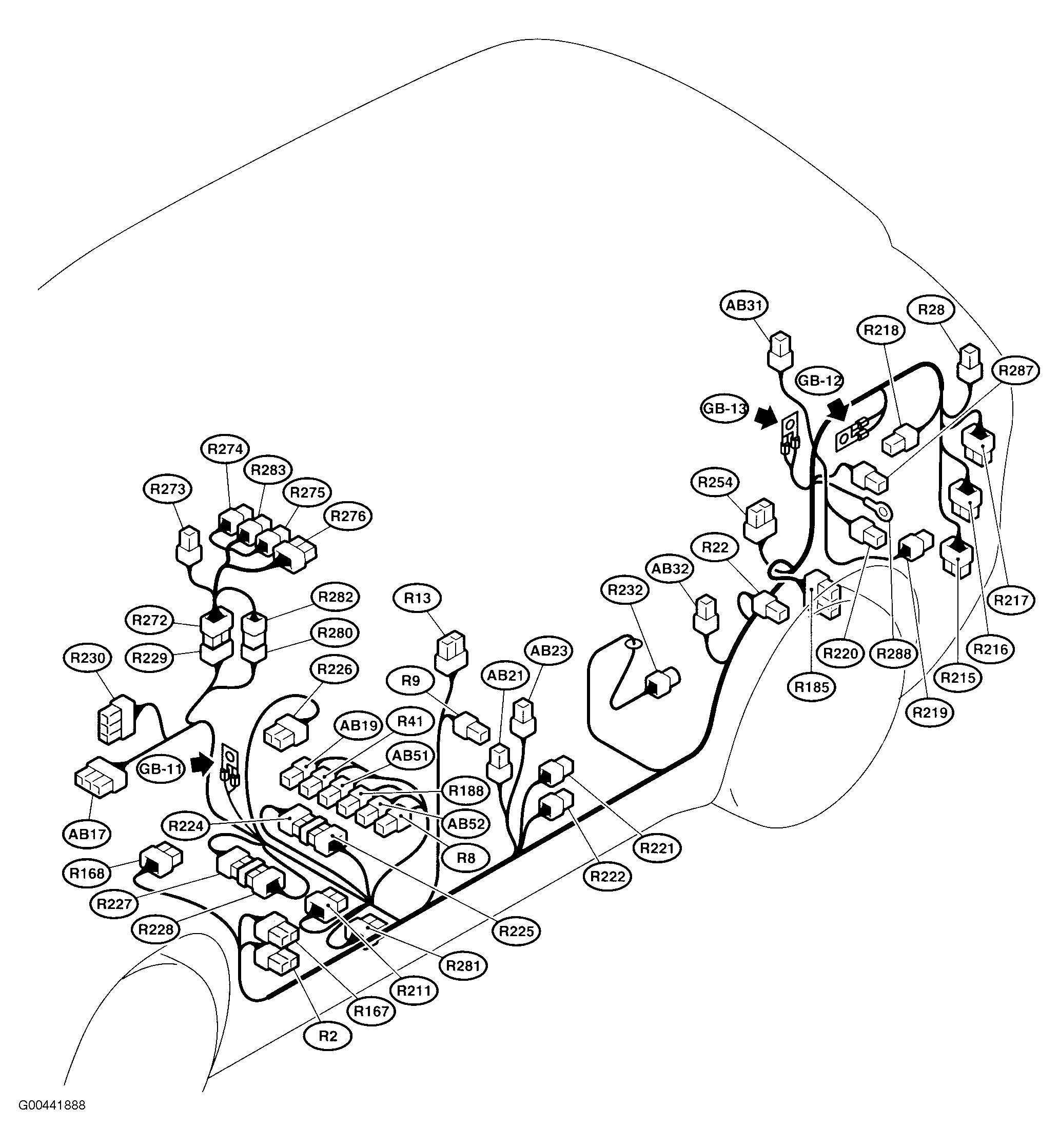

| Navigation Module (R226) | Center of dash. See Figure. |

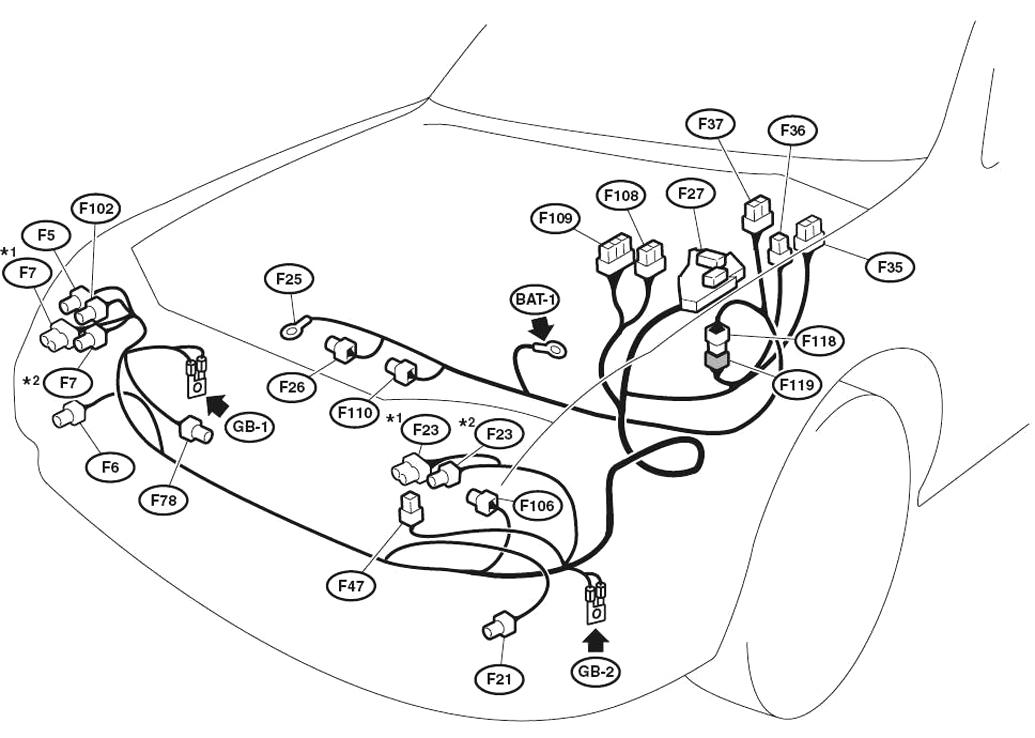

| Radiator Fan Control Unit (F106) | Left front of engine compartment. See Figure. |
| Rear View Camera Module (R185) | Left rear of vehicle. See Figure. |
| Remote Engine Start Control Module (B334) | Upper left side of dash. See Figure. |
| Sunroof Control Unit & Motor (R55) | At sunroof opening. See Figure. |
| TCM (B54, B55) | Behind left side of dash. See Figure. |
| TPM Control Module (R211) | Under driver's seat. See Figure. |

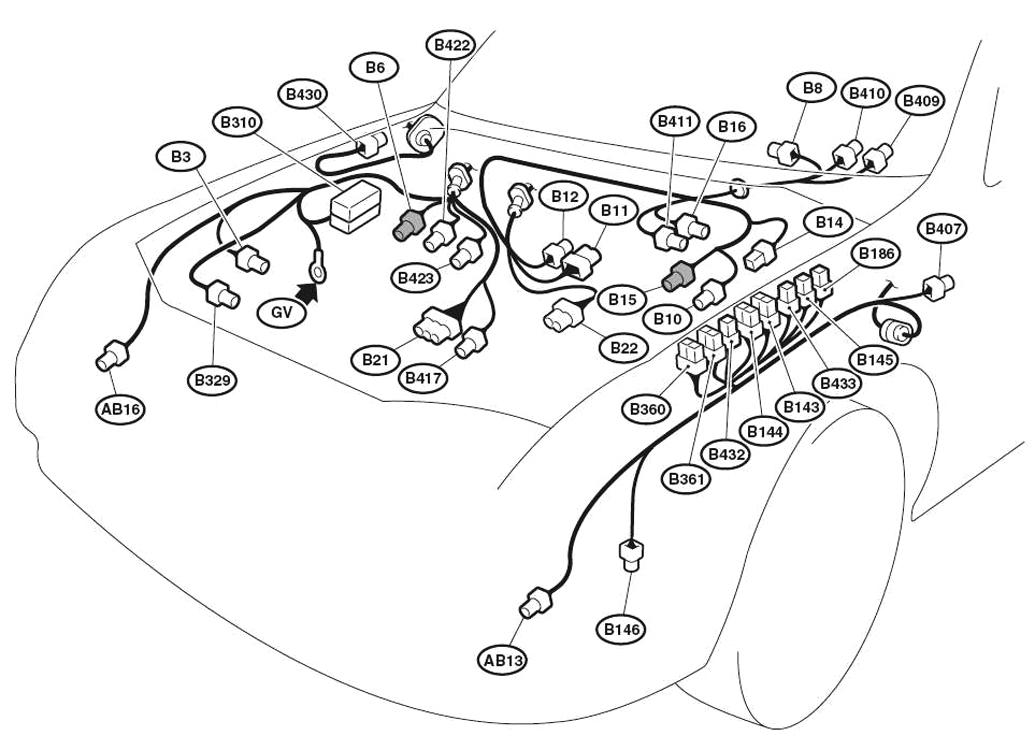

| VDC Control Module (B310) | At right rear corner of engine compartment. See Figure. |
