Intake Manifold

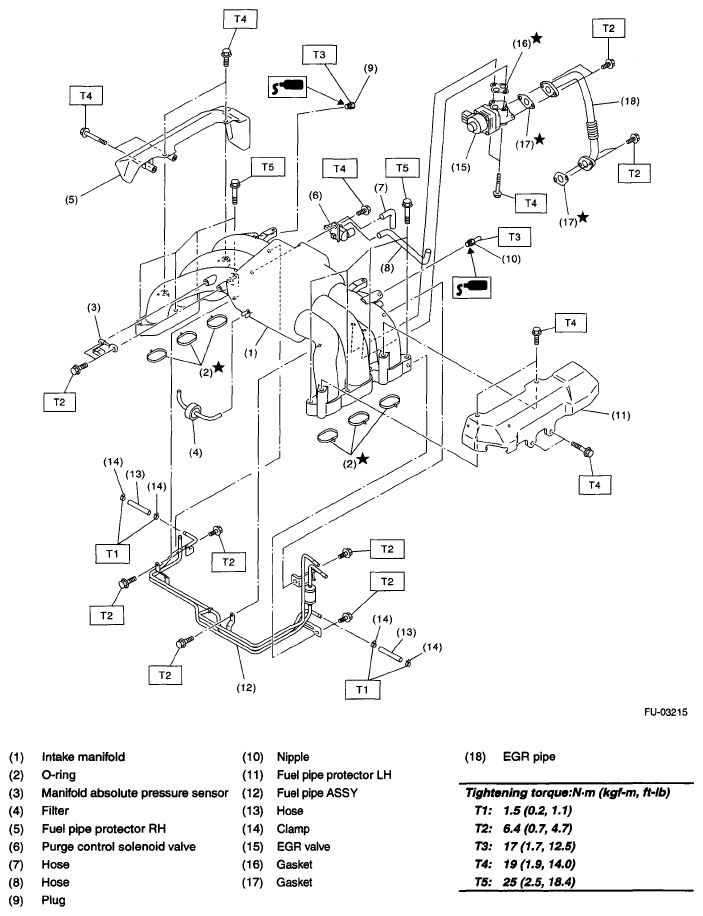

Fig 1: Exploded View Of Intake Manifold Replacement Components With Torque Specifications
G05667530Courtesy of SUBARU OF AMERICA, INC.
