Front Suspension System: General Description: Specification
GENERAL SPECIFICATION
| Front | Wheel arch height (Tolerance:+12 mm-24 mm (+0.47 in-94 in )) |
mm (in) | 442 (17.4) |
| Camber (Tolerance:±0°45' Differences between RH and LH: 45' or less) | 0°00' | ||
| Caster (Referential Value) | 4°04' | ||
| Steering angle (Tolerance: ± 1.5°) | Inner wheel | 37.0° | |
| Outer wheel | 32.0° | ||

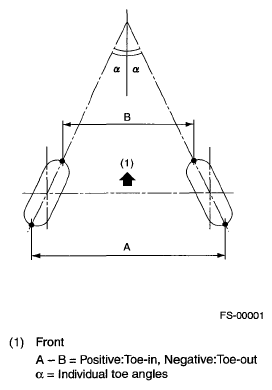

| Toe-in | mm (in) | 0+3 (0+0.12) Toe angle (sum of both wheels): 0°±0°14' | |
| Kingpin angle (Referential Value) | 12°12' | ||
| Rear | Wheel arch height (Tolerance:+12mm-24mm (+047in-94 in )) |
mm (in) | 439 (17.3) |
| Camber (Tolerance:±0°45' Differences between RH and LH: 45' or less) | -0°31' | ||
| Toe-in | mm (in) | 2 ± 2 (0.08±0.08) Toe angle (sum of both wheels): 0°10'±0°10' | |
| Thrust angle (Tolerance:±0°30') | 0° | ||
NOTE:
- Front and rear toe-in and front camber can be adjusted. Adjust if the toe-in or camber tolerance exceeds specifications.
- Other items indicated in the specifications table cannot be adjusted. If other items exceed specifications, check the suspension parts and connections for deformation, and replace with new parts as required.
