Fuel Filler Pipe: Assembly

Tighten the nuts which secure the evaporation pipe assembly to the fuel filler pipe.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

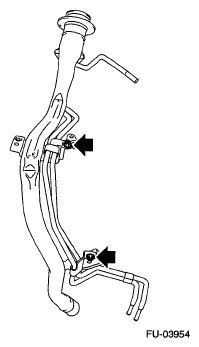

Fig 1: Locating Evaporation Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the shut valve to the fuel filler pipe. Refer to INSTALLATION , Shut Valve .
