Intake Manifold

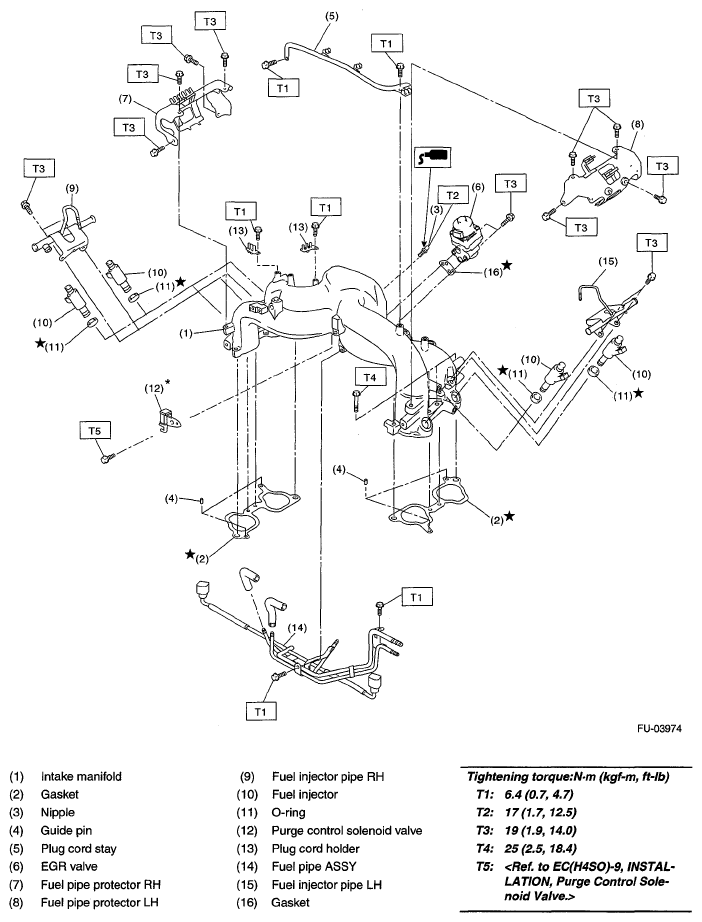

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

*: Refer to "Purge Control Solenoid Valve, INSTALLATION" for the mounting hole of the purge control solenoid valve. Refer to INSTALLATION , Purge Control Solenoid Valve .
