Control Units

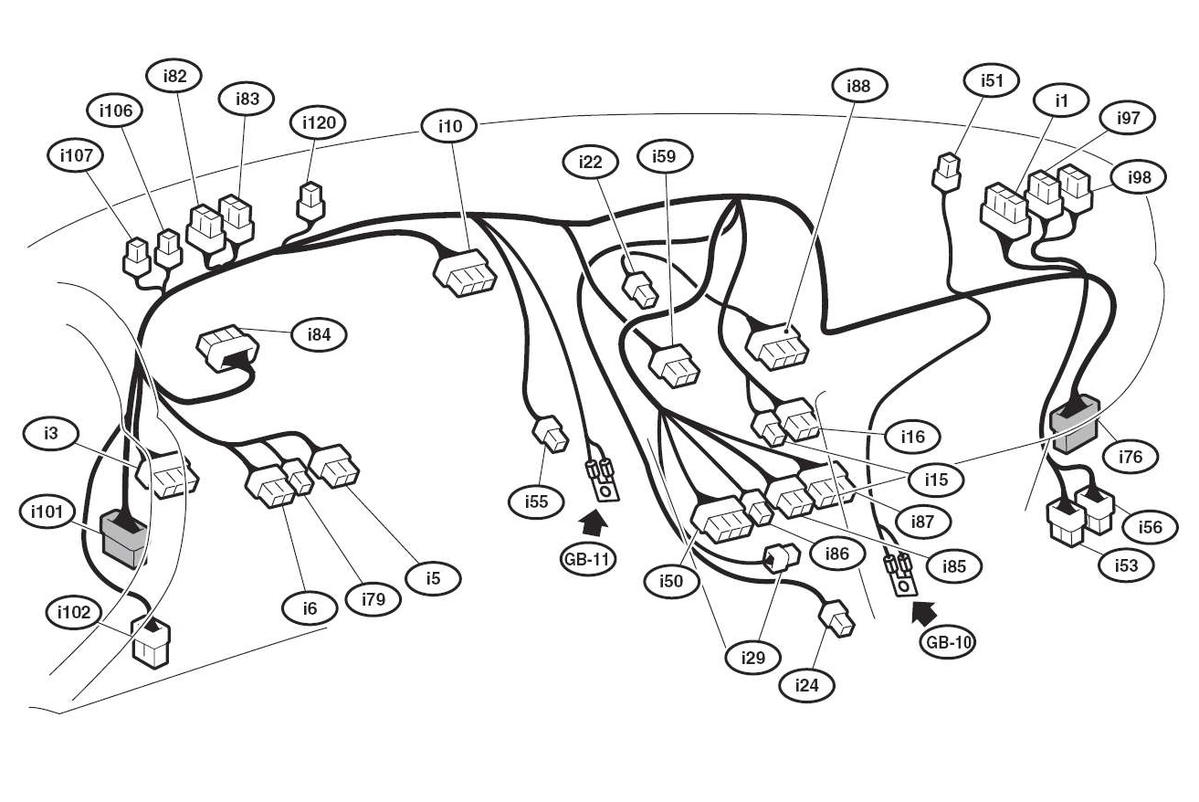

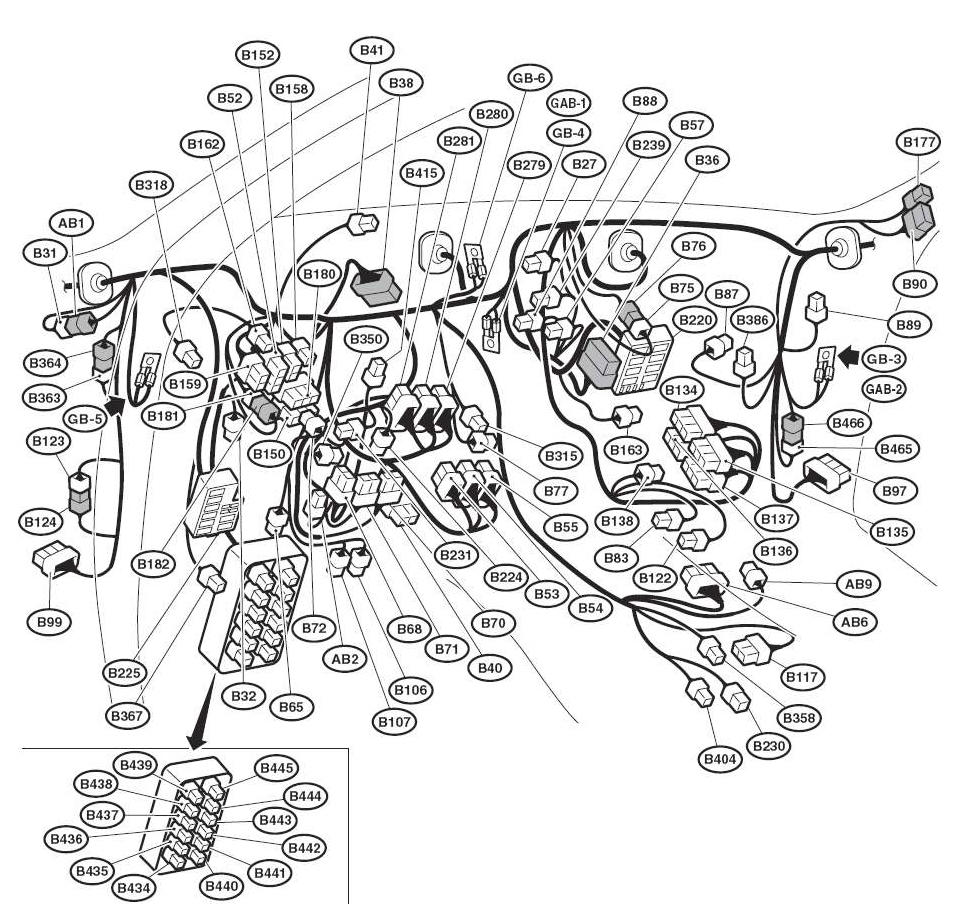

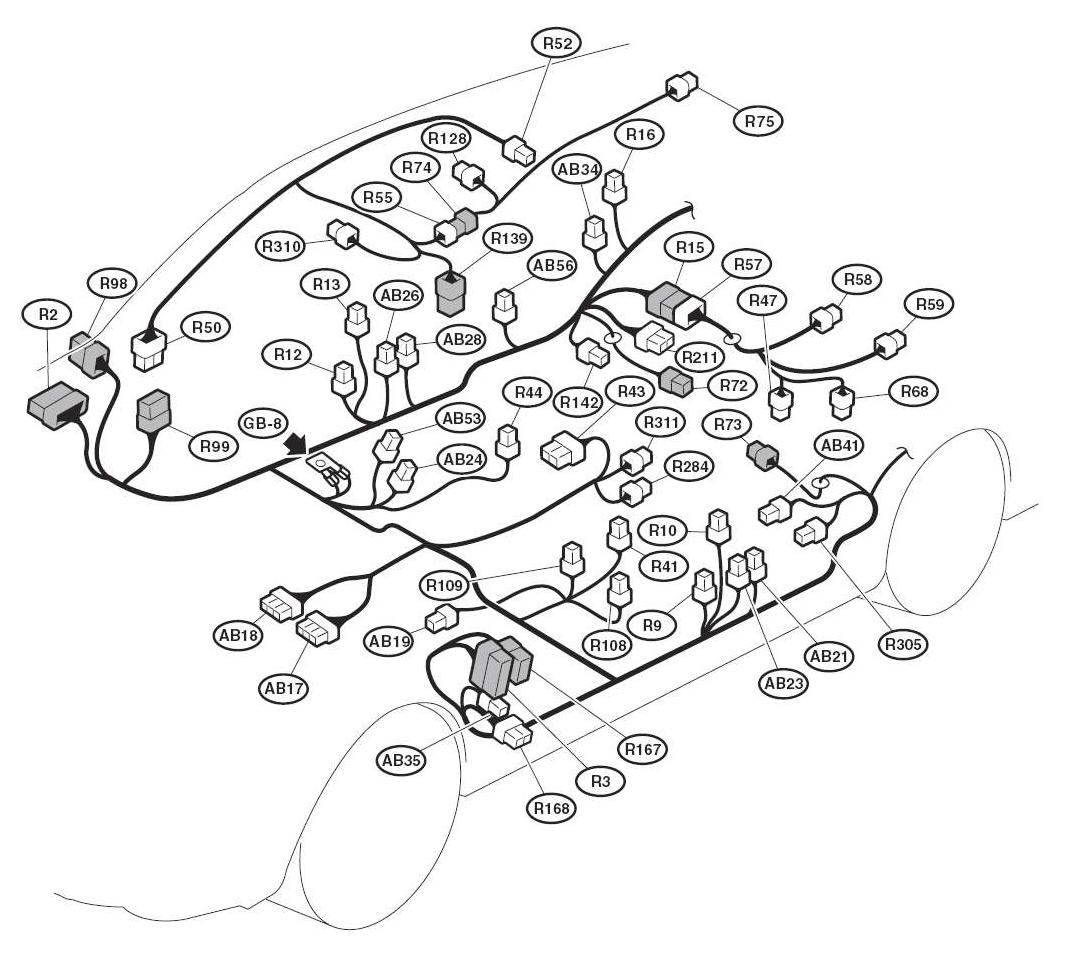

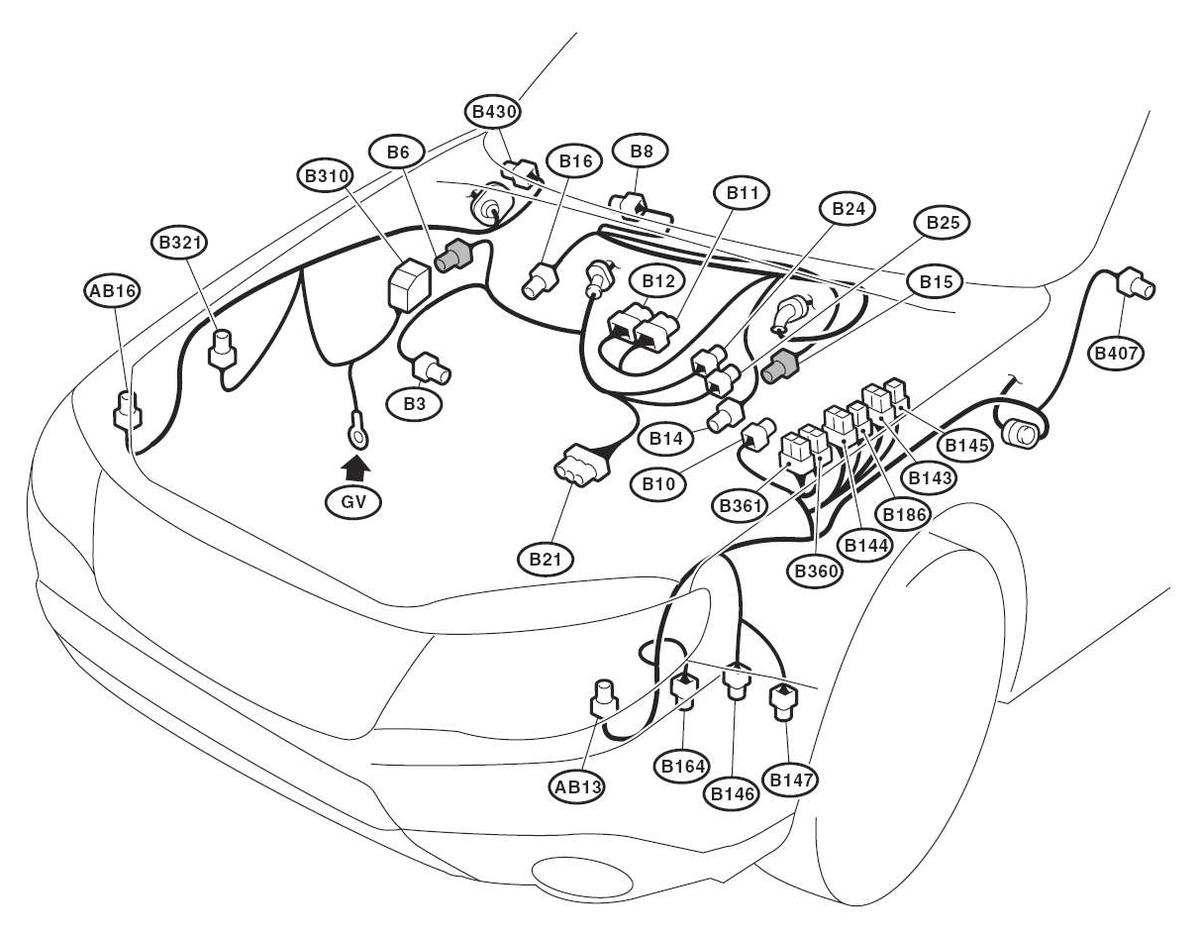

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Airbag Control Module (AB17) | Under right front of center console. See Figure. |
| Auto Headlight Beam Leveler CM (B150) | Left side of dash. See Figure. |
| Body Integrated Unit (I84) | Behind center of dash. See Figure. |
| Engine Control Module (B134, B135, B136 & B137) | In passenger side front footwell below carpet and protective panel. See Figure. |
| Fuel Pump Control Module (R122) | Behind right rear quarterpanel. See Figure. |
| Illumination Control Module (I79) | Left side of dash. See Figure. |
| Keyless Entry Control Module (R80) | Left rear vehicle chassis. See Figure. |
| Occupant Detection Control Module (AB53) | Center of vehicle chassis. See Figure. |
| Remote Engine Start Control Module (B180) | Left side of dash. See Figure. |
| Side Air Bag Control Module (AB19) | Left front of vehicle chassis. See Figure. |
| TPMS Control Module (B54) | Center of dash. See Figure. |
| Turn Signal & Hazard Unit (B32) | Left side of dash. See Figure. |
| VDC Control Module (B310) | Right side of dash. See Figure. |
