Fuel Pipe

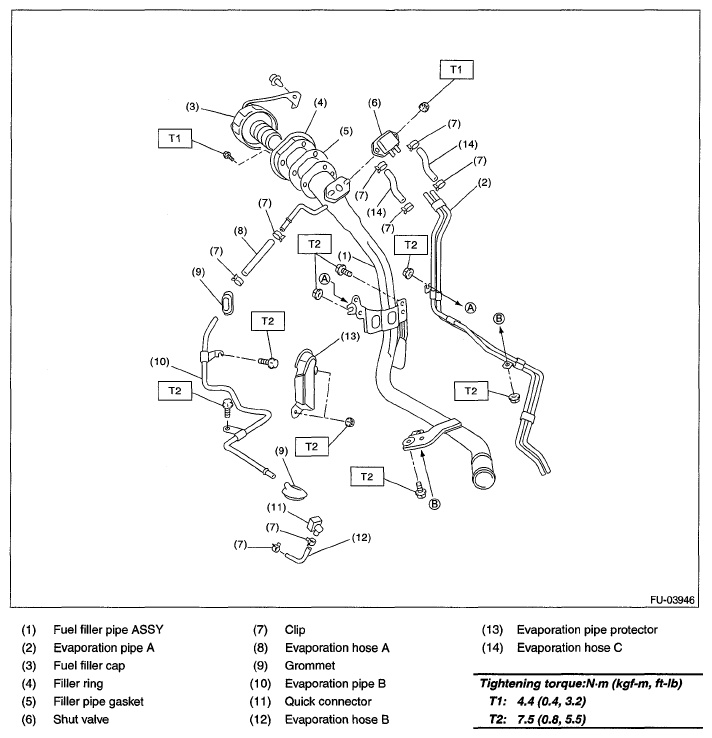

Fig 1: Exploded View Of Fuel Pipe With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
