Camshaft Position Sensor: Removal

Remove the collector cover.
Disconnect the ground cable from the battery.

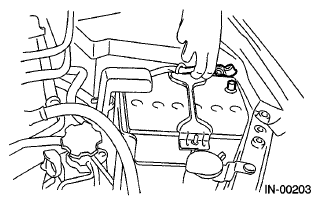

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator harness from the fuel pipe protector LH.
Remove the fuel pipe protector LH.

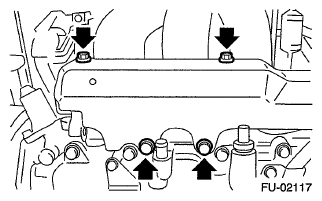

Fig 2: Identifying Fuel Pipe Protector LH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from camshaft position sensor LH.

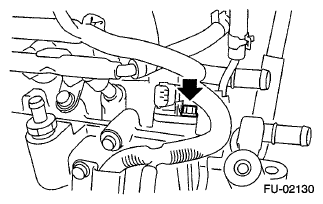

Fig 3: Locating Camshaft Position Sensor LH Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor RH in the same procedure as LH.

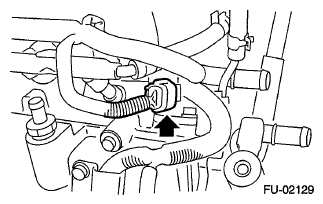

Fig 4: Locating Camshaft Position Sensor LH
Courtesy of SUBARU OF AMERICA, INC.
