Fuel Pump Control Unit: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear quarter trim of the left side. (Wagon model) Refer to REMOVAL , Rear Quarter Trim.
Peel the trunk side trim of the left side. (Sedan model)
Remove the fuel pump control unit. Wagon model
- Sedan model

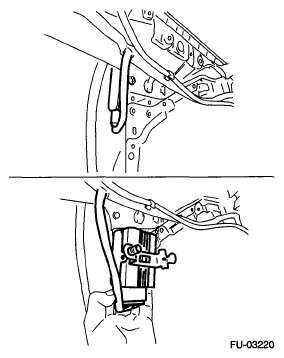

  Fig 2: Removing Fuel Pump Control Unit (Wagon Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Sedan model

  Fig 3: Removing Fuel Pump Control Unit (Sedan Model)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel pump control unit.
