Intake Manifold: Disassembly

Remove the engine harness from intake manifold.
Remove the throttle body. Refer to REMOVAL , Throttle Body.
Remove the EGR valve. Refer to REMOVAL , EGR Valve.
Remove the manifold absolute pressure sensor. Refer to REMOVAL , Manifold Absolute Pressure Sensor.
Remove the purge control solenoid valve. Refer to REMOVAL , Purge Control Solenoid Valve.
Loosen the clamp which holds fuel injector pipe to the fuel hose, and then disconnect the pipe from fuel hose.

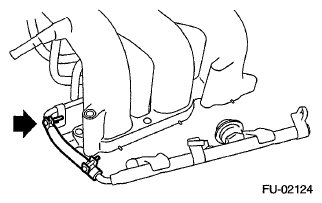

Fig 1: Locating Fuel Hose Clamp Screw
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install fuel pipes on intake manifold.

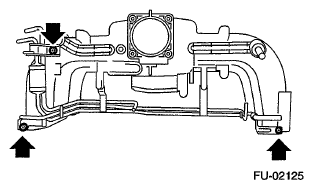

Fig 2: Locating Fuel Pipes Bolts
Courtesy of SUBARU OF AMERICA, INC.

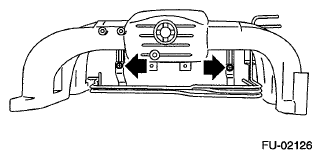

Fig 3: Locating Fuel Pipes Bolts
Courtesy of SUBARU OF AMERICA, INC.
