Knock Sensor: Removal

Remove the collector cover.
Disconnect the ground cable from battery.

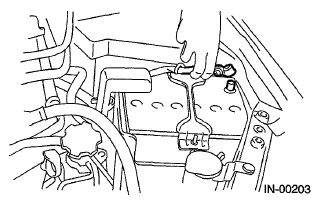

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold. Refer to REMOVAL , Intake Manifold.
Disconnect the knock sensor connector.
Remove the knock sensor from the cylinder block.

Fig 2: Identifying Knock Sensor
Courtesy of SUBARU OF AMERICA, INC.
