Power Locks: Testing and Inspection

INSPECTION

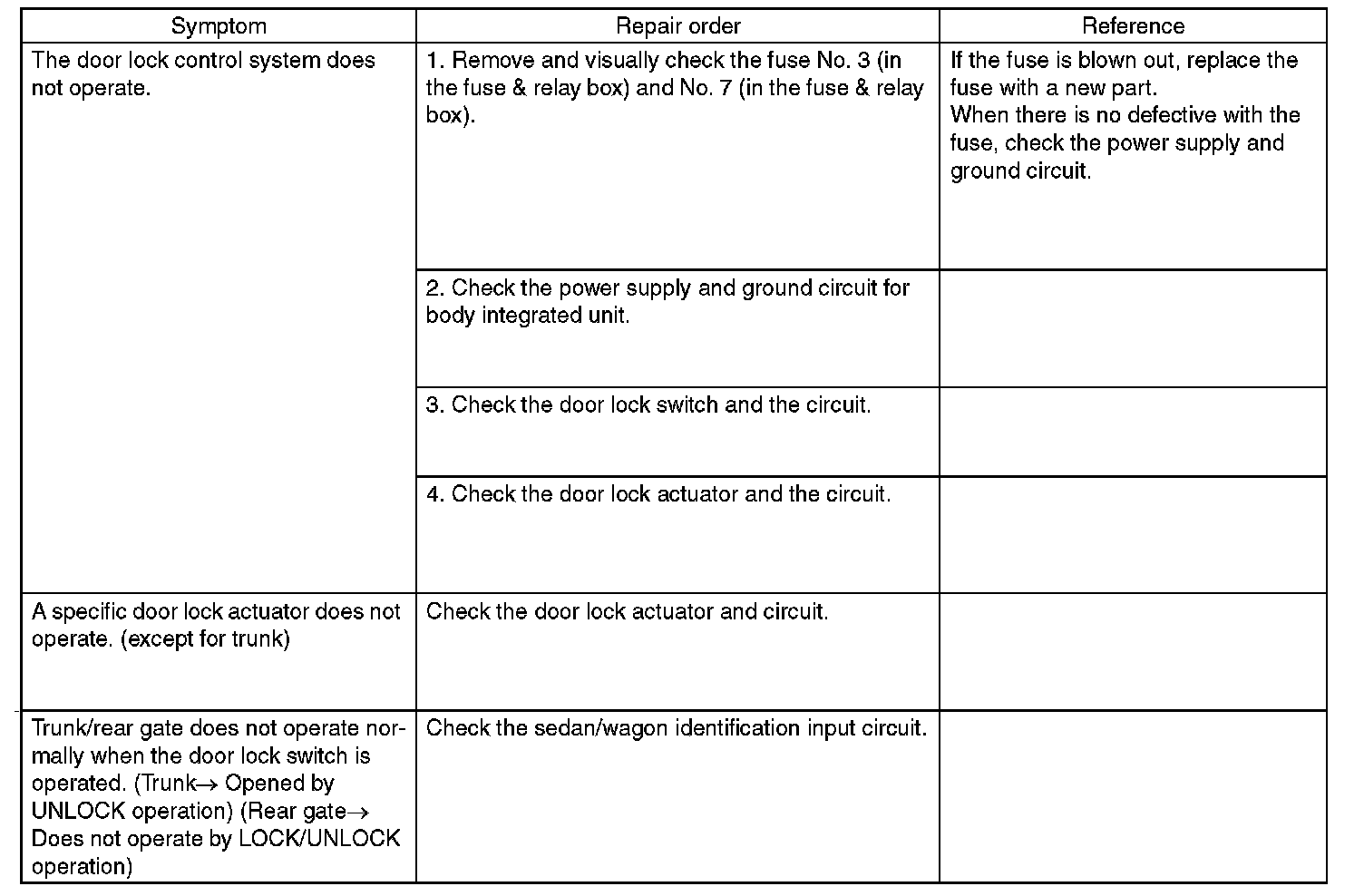

1. SYMPTOM CHART

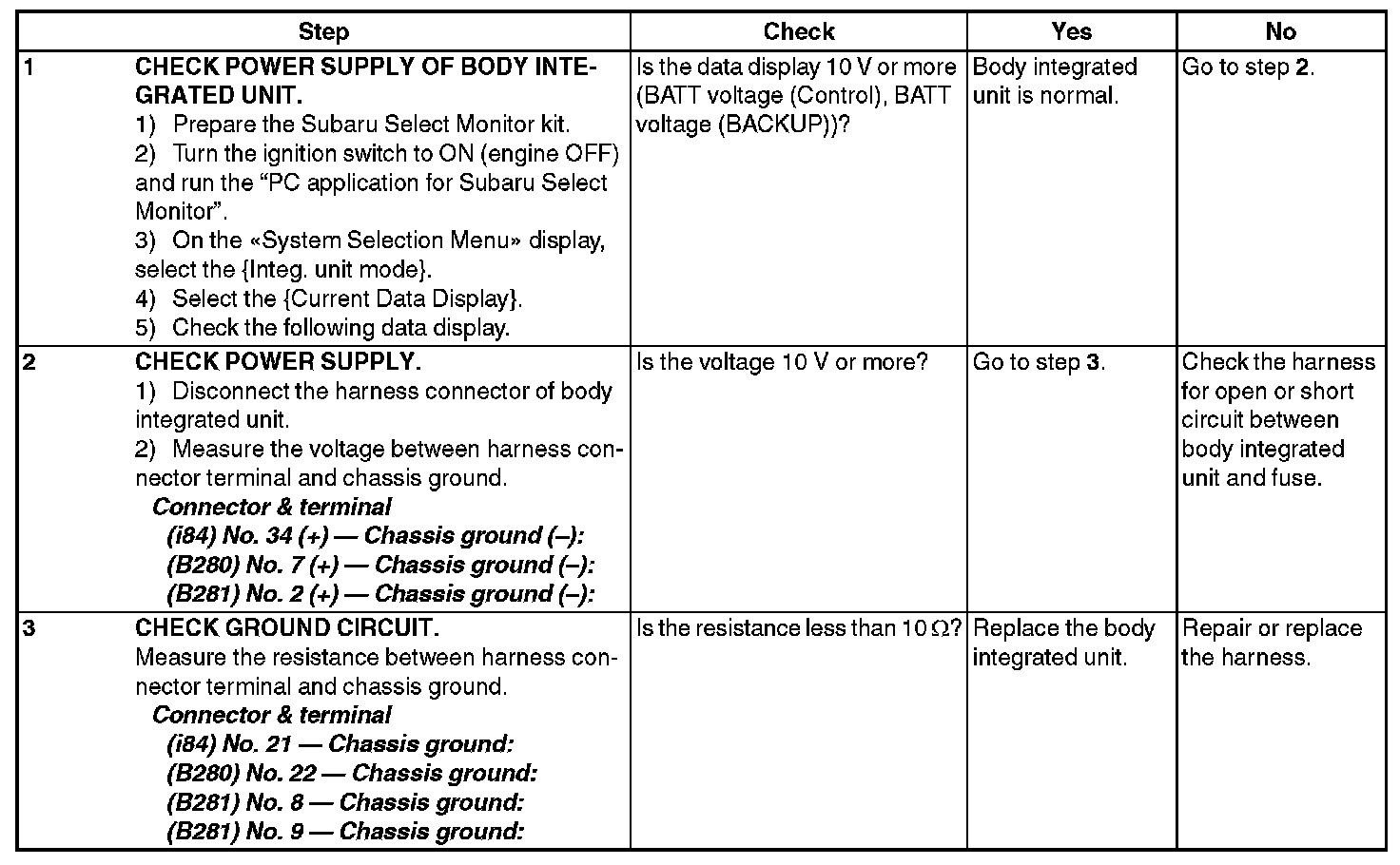

2. CHECK POWER SUPPLY AND GROUND CIRCUIT

Step 1-3:

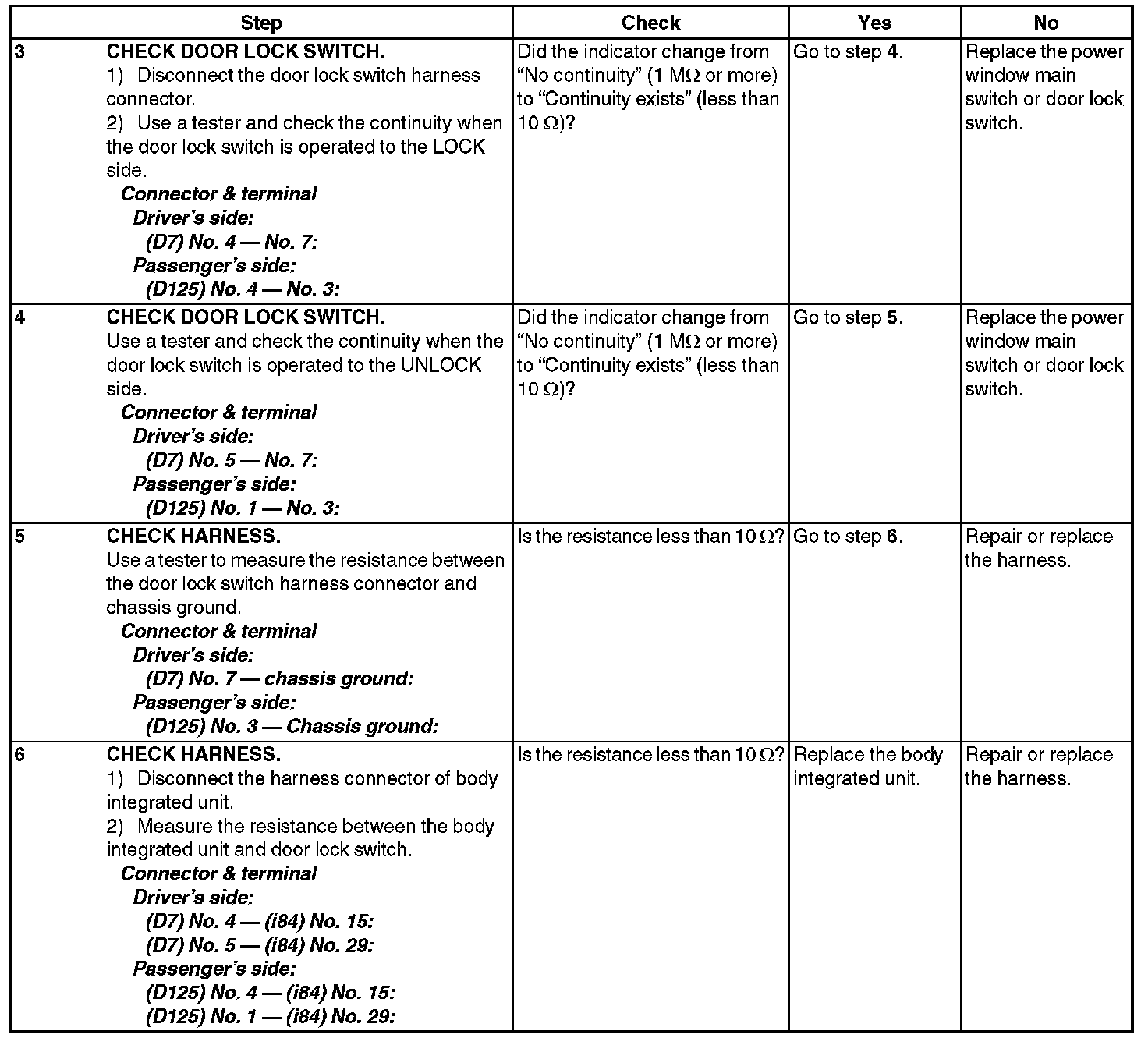

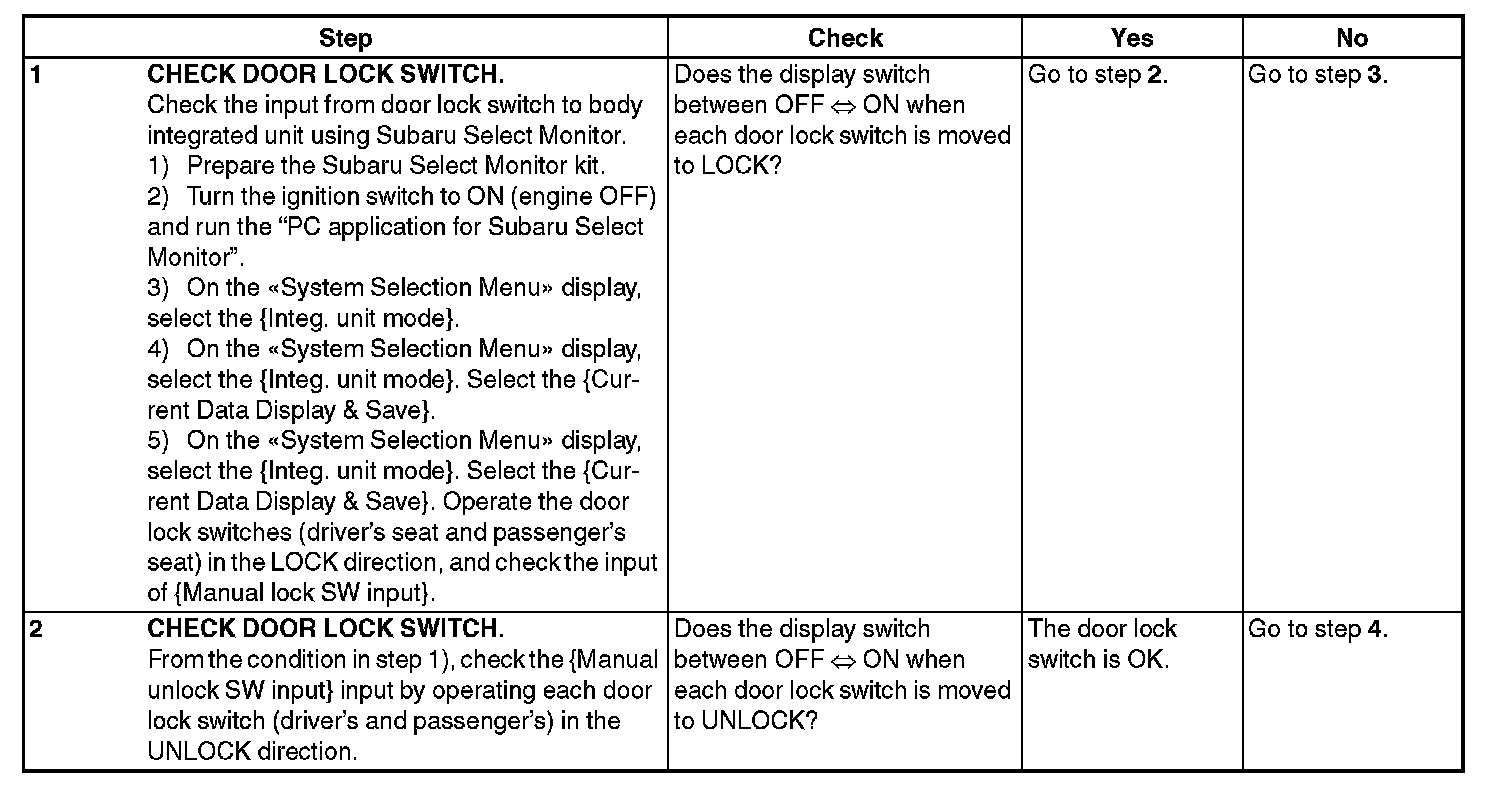

3. CHECK DOOR LOCK SWITCH

Step 1-2:

Step 3-6:

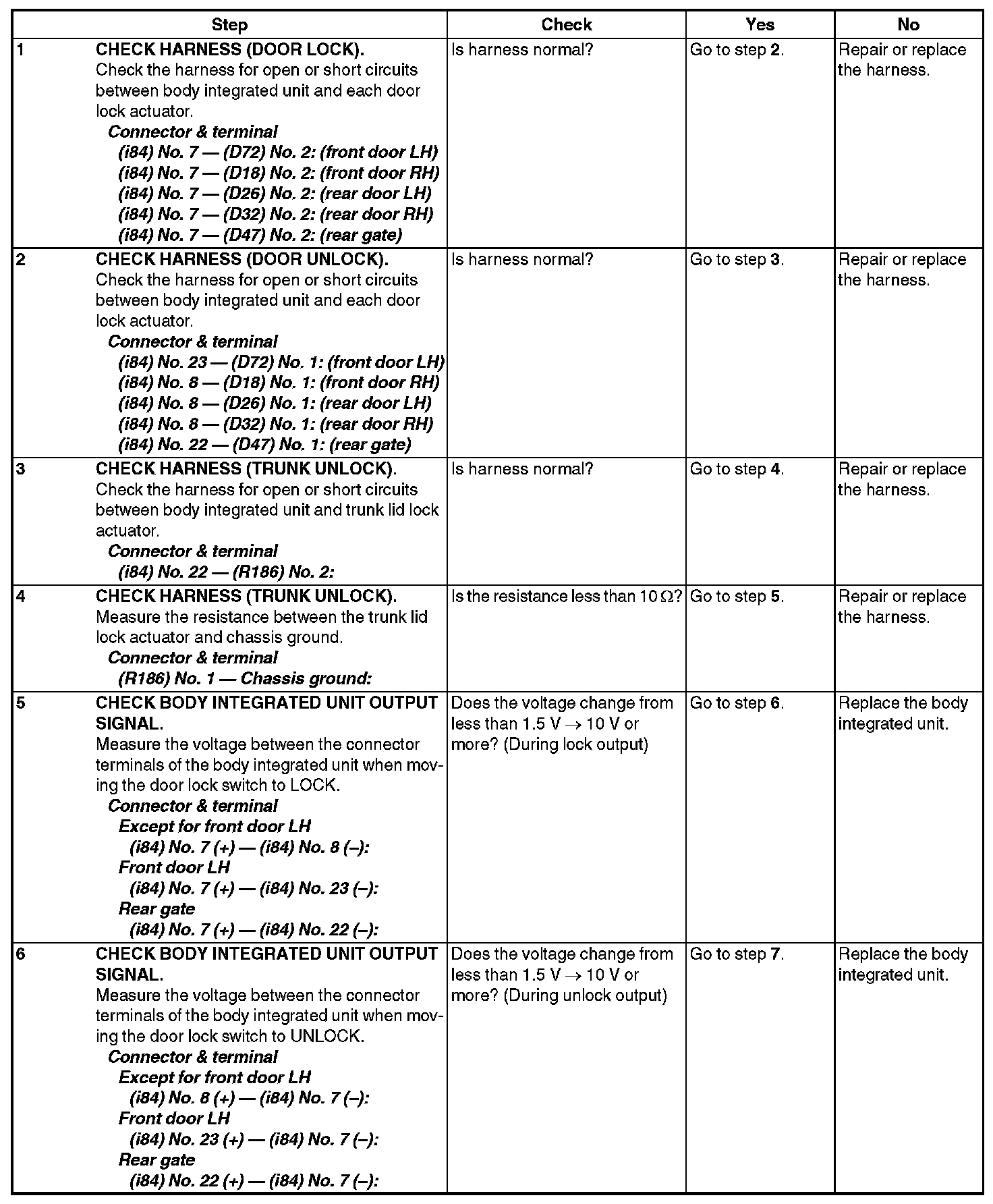

4. CHECK DOOR LOCK ACTUATOR AND CIRCUIT

Step 1-6:

Step 7-8:

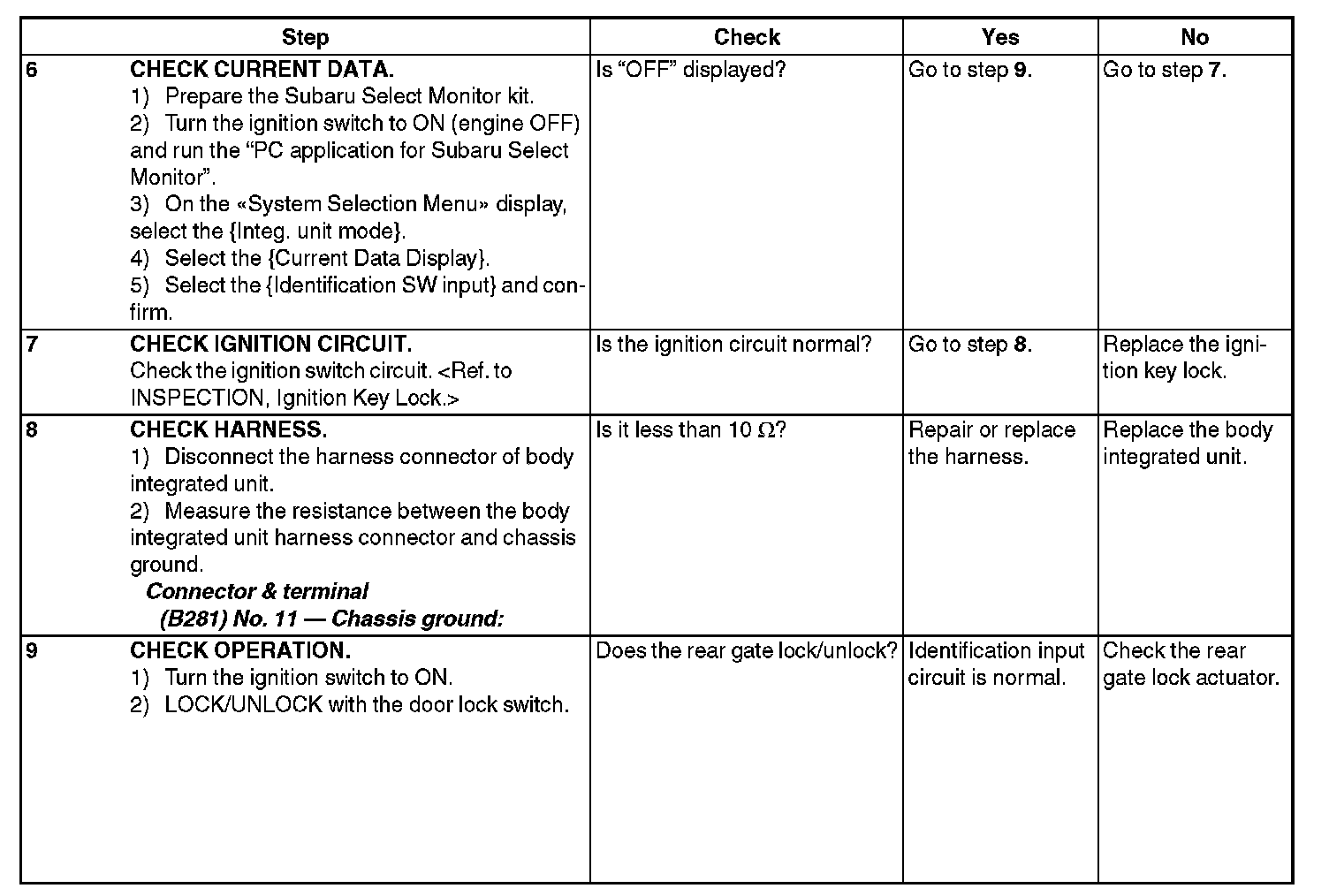

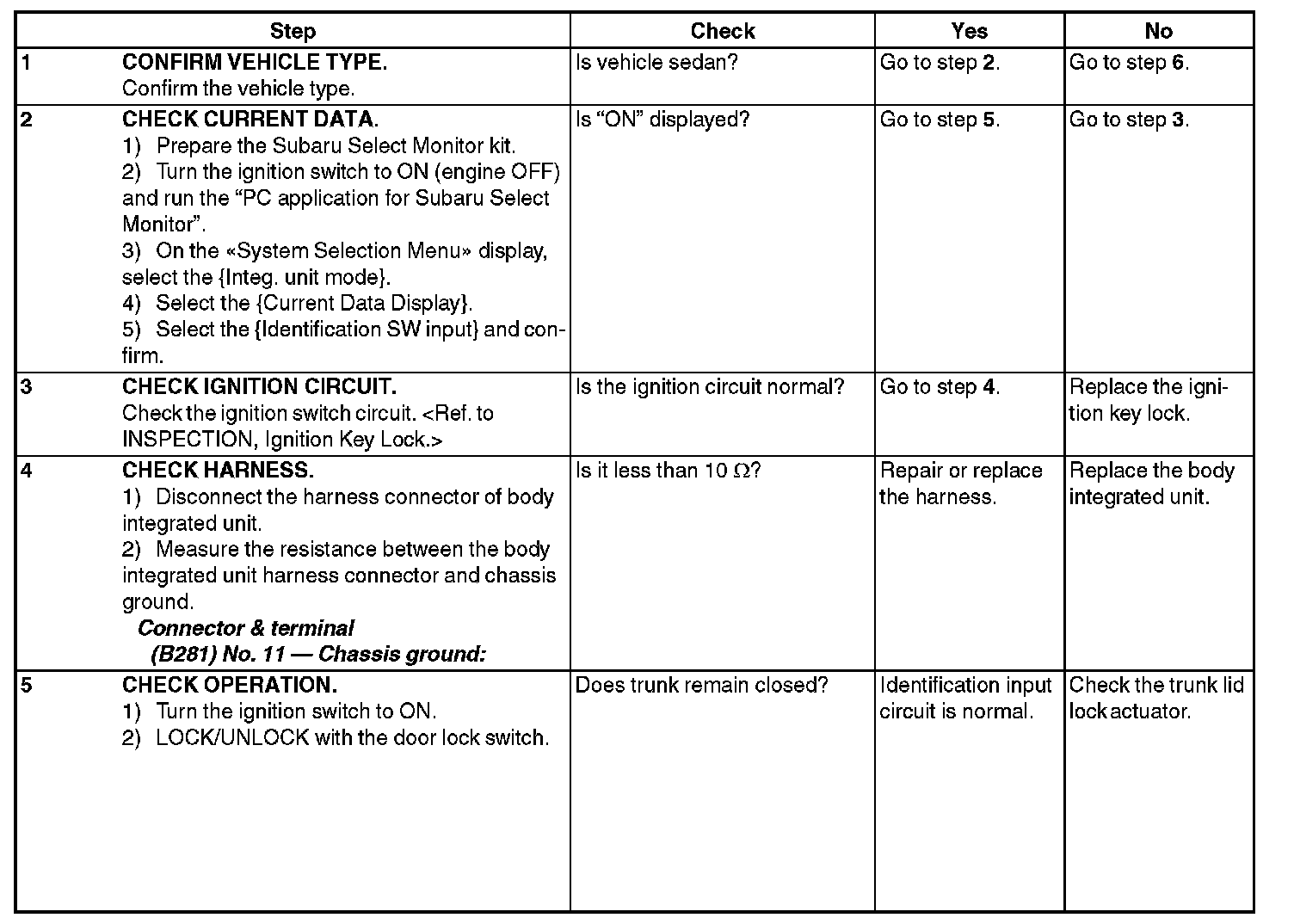

5. CHECK SEDAN/WAGON IDENTIFICATION INPUT CIRCUIT

Step 1-5:

Step 6-9:
