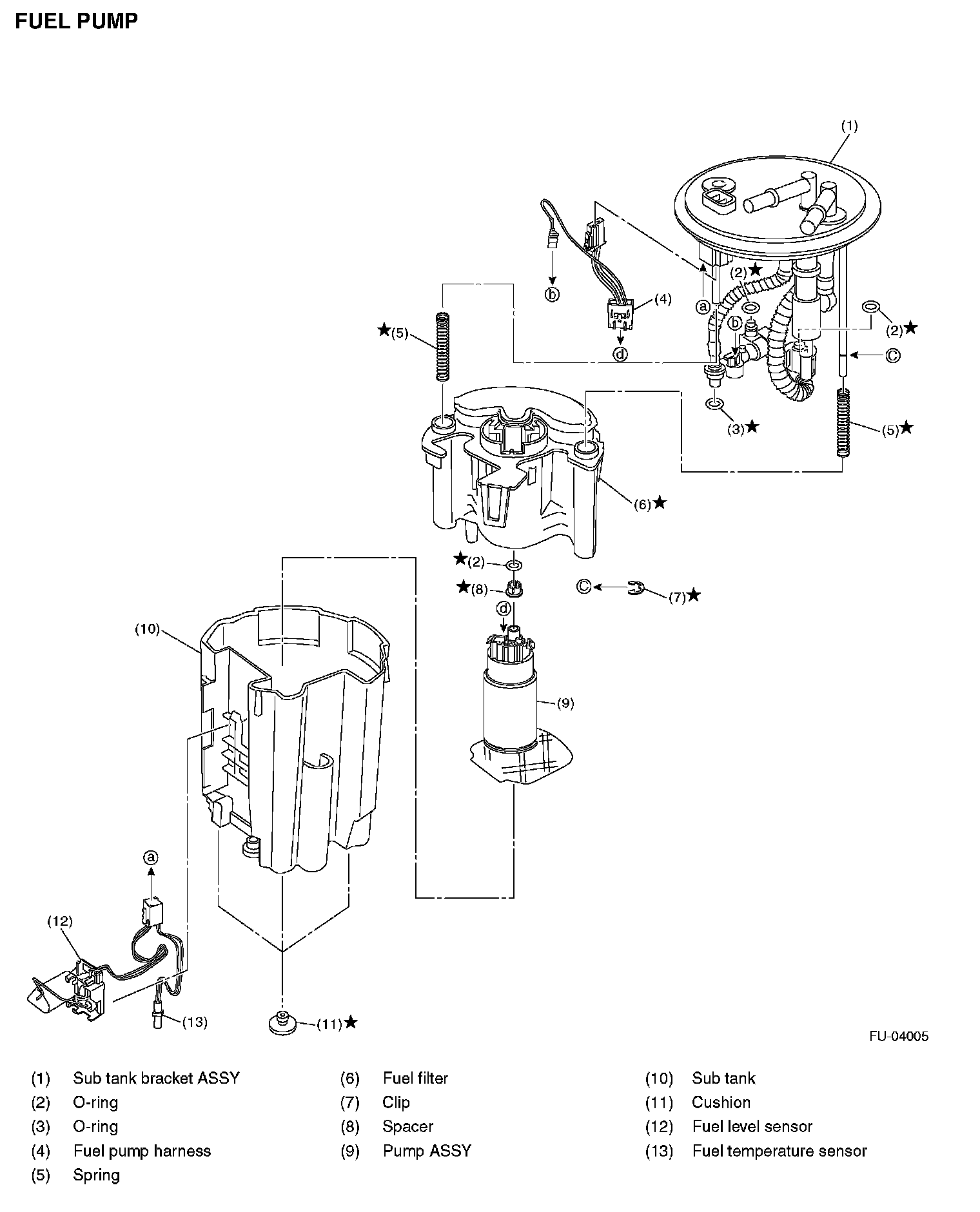

Fuel Pump
This article / image reflects the changes called out in manual update
18-135-09 dated 02\02/09.
