Exploded Views

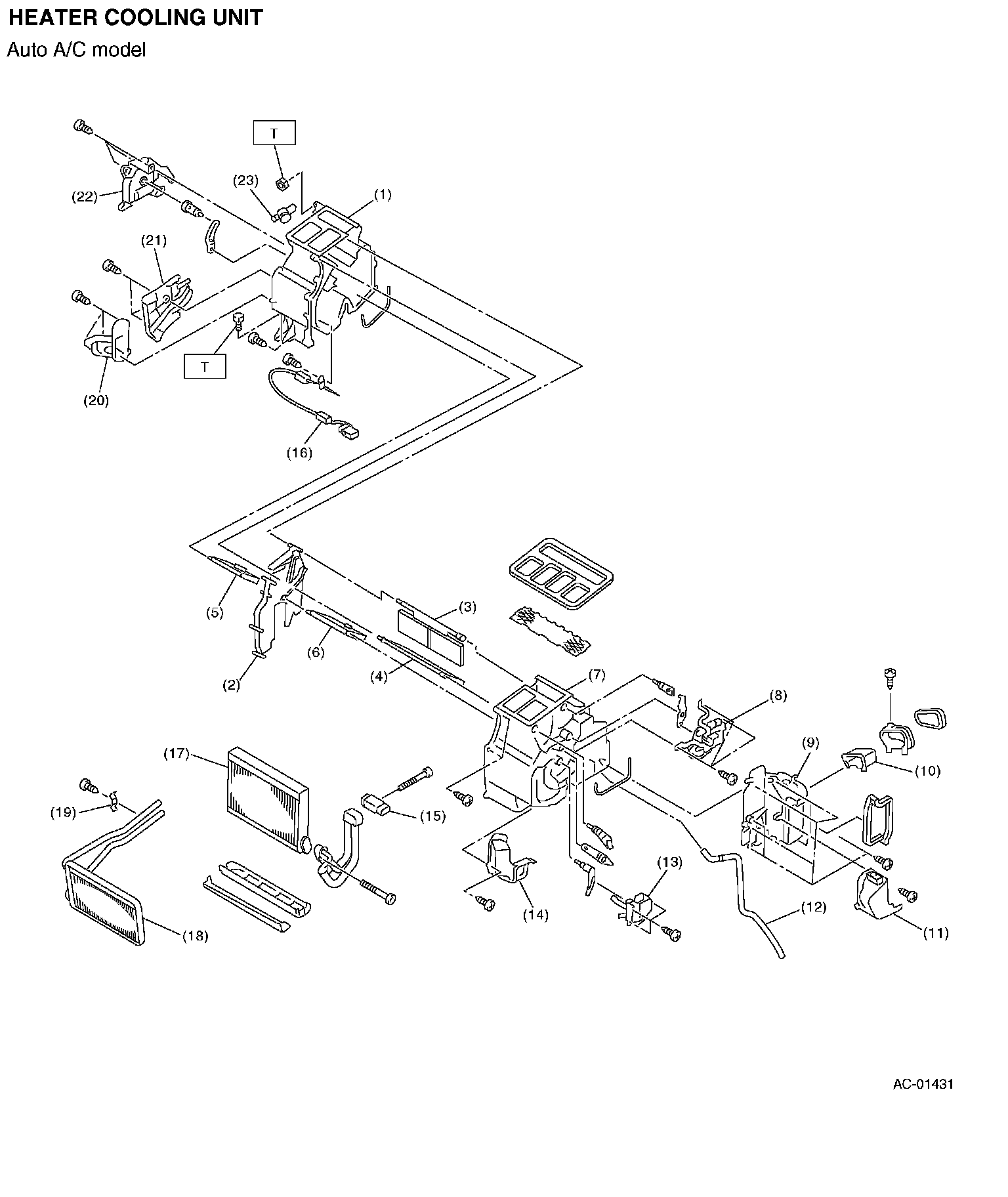

Heater Cooling Unit - Auto A/C Model (Part 1):

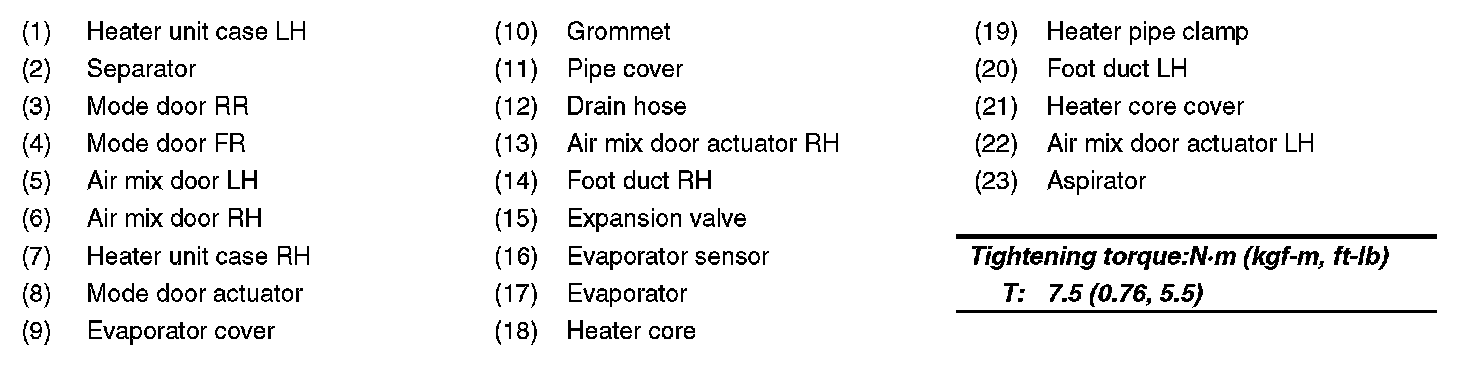

Heater Cooling Unit - Auto A/C Model (Part 2):

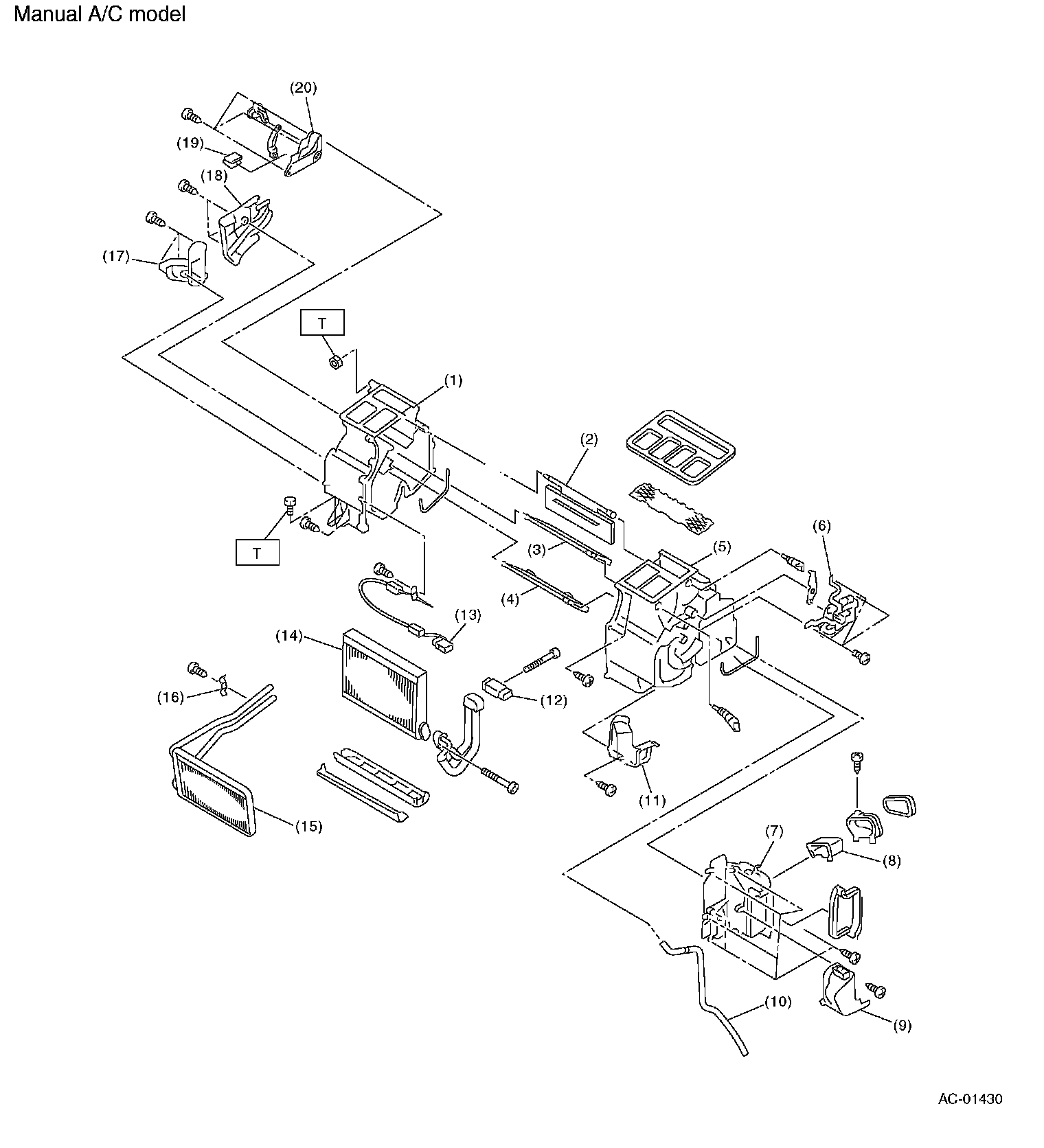

Heater Cooling Unit - Manual A/C Model (Part 1):

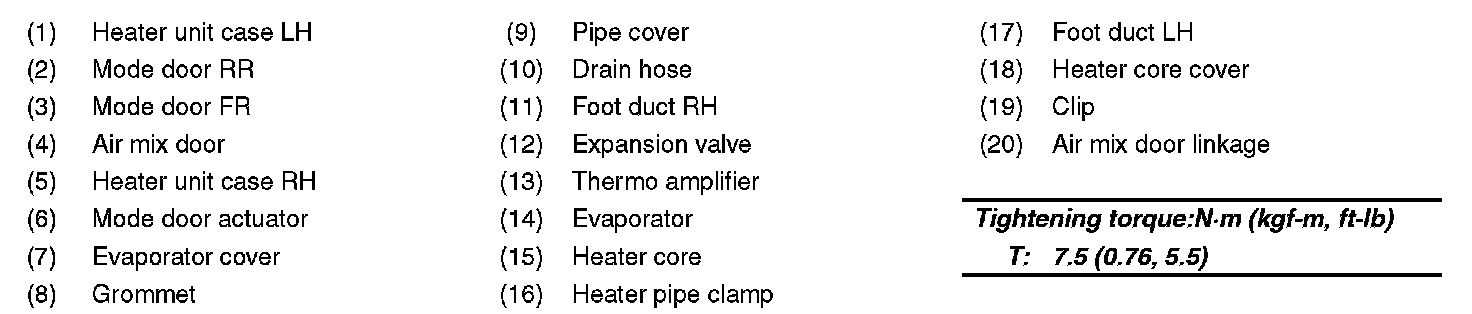

Heater Cooling Unit - Manual A/C Model (Part 2):

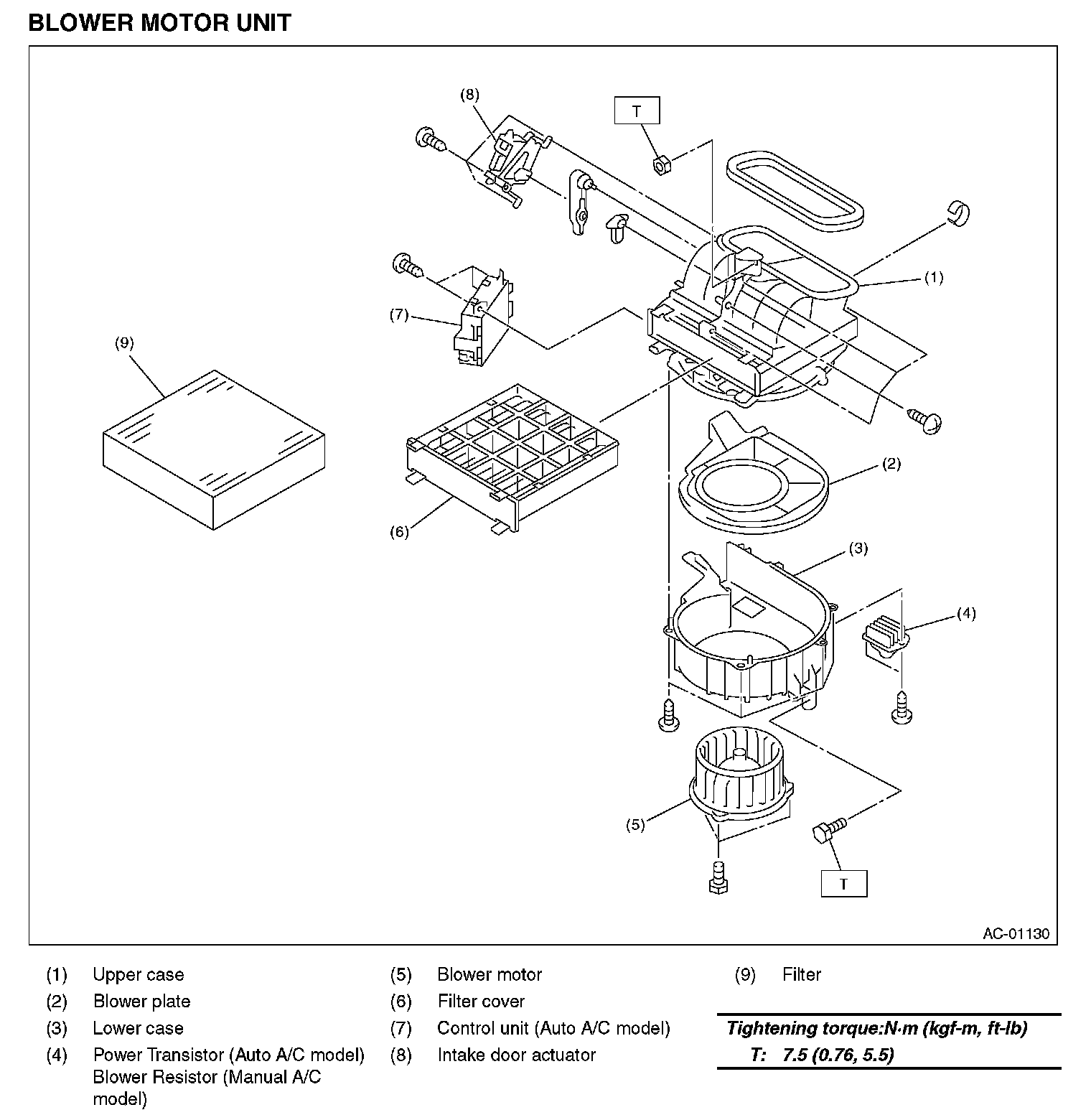

Blower Motor Unit:

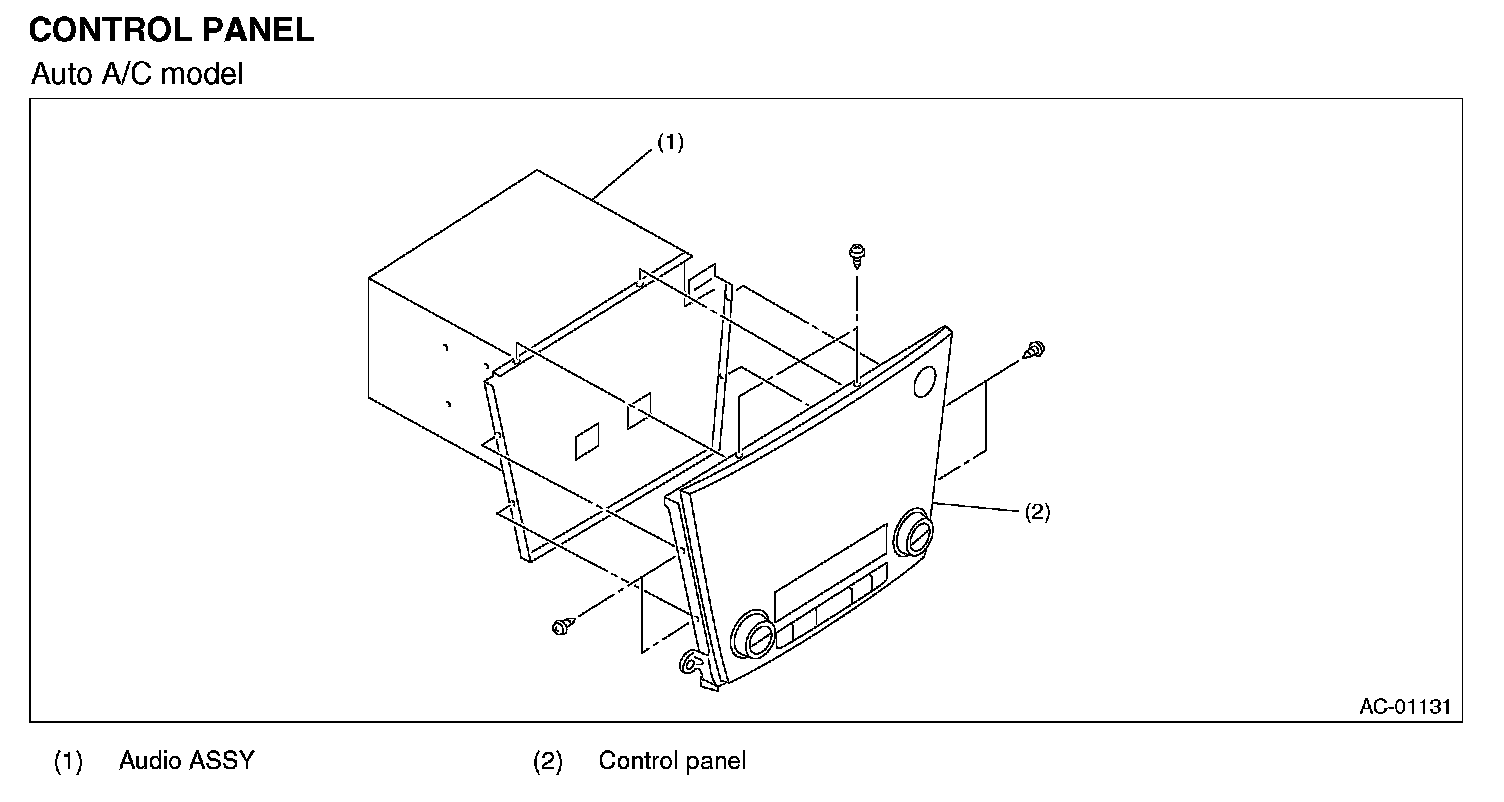

Control Panel - Auto A/C Model:

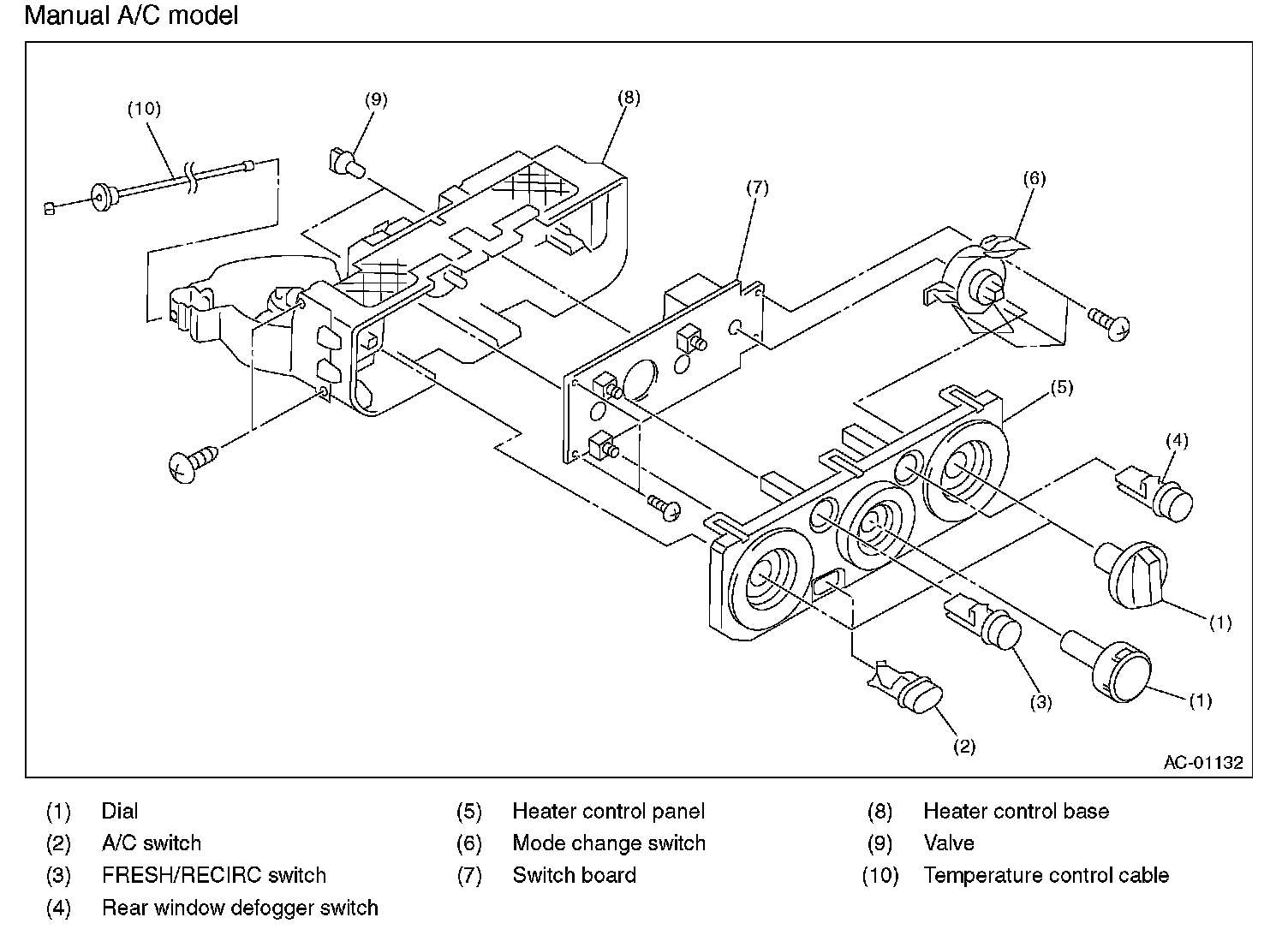

Control Panel - Manual A/C Model:

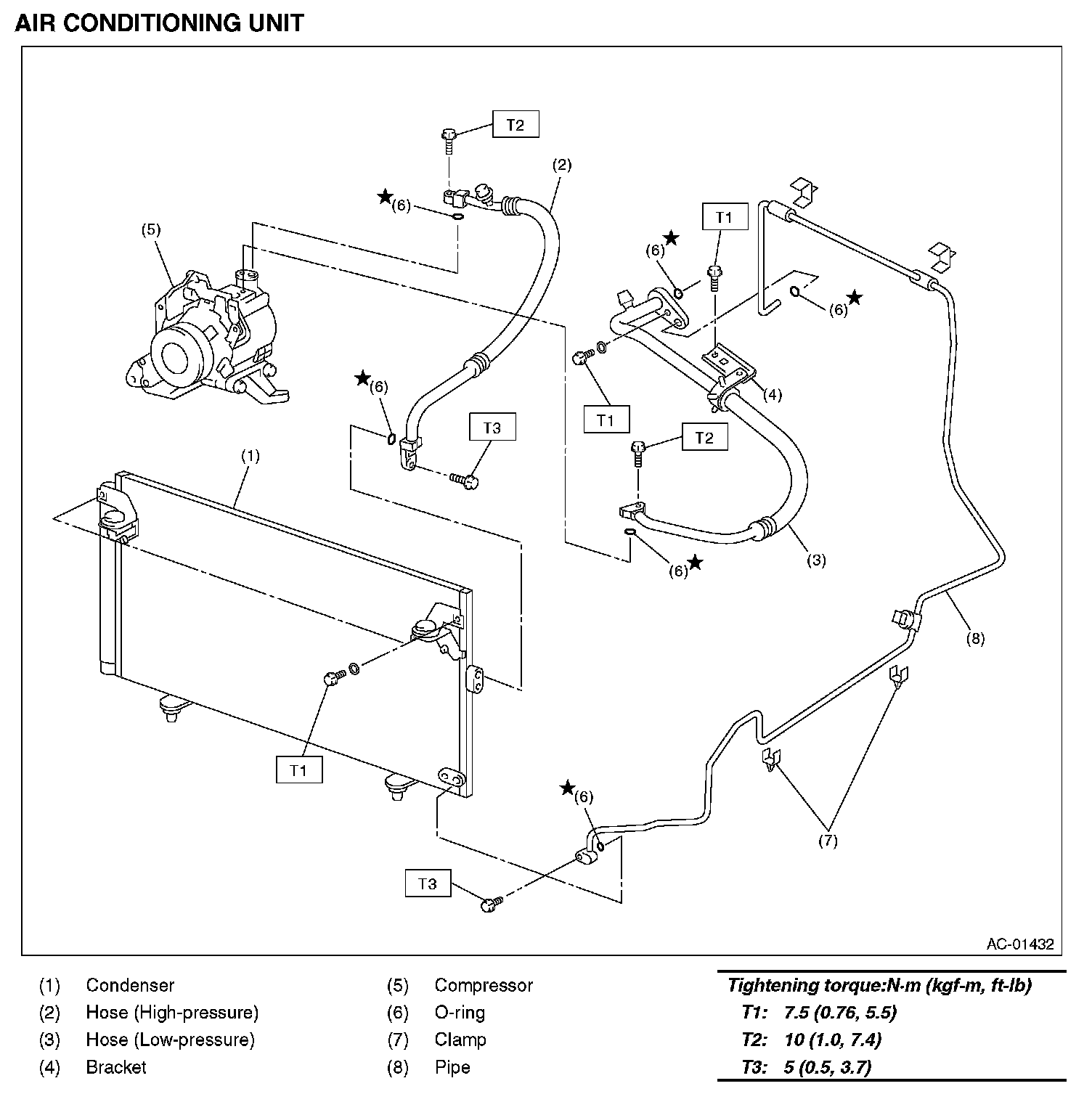

Air Conditioning Unit:

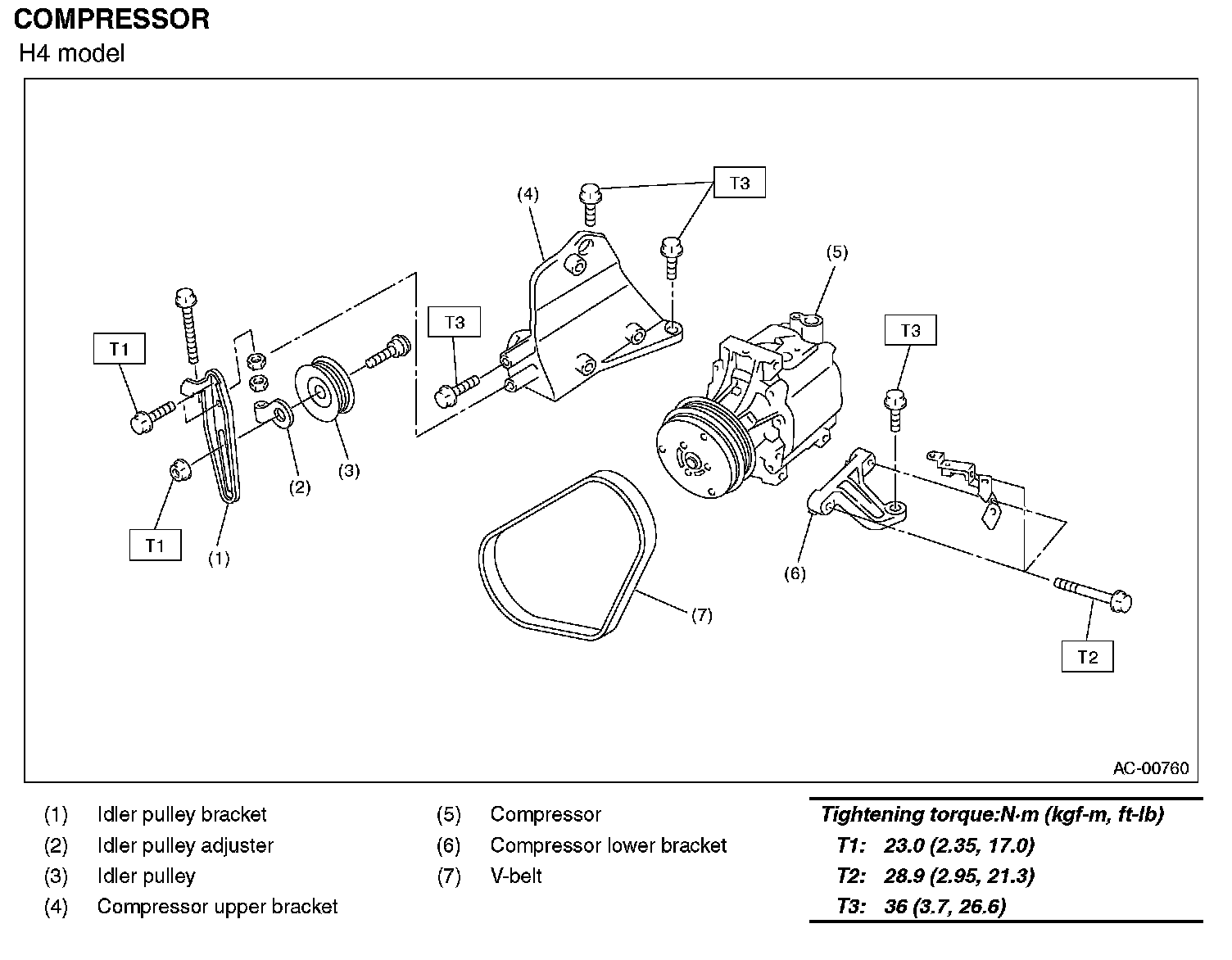

Compressor - H4 Model:

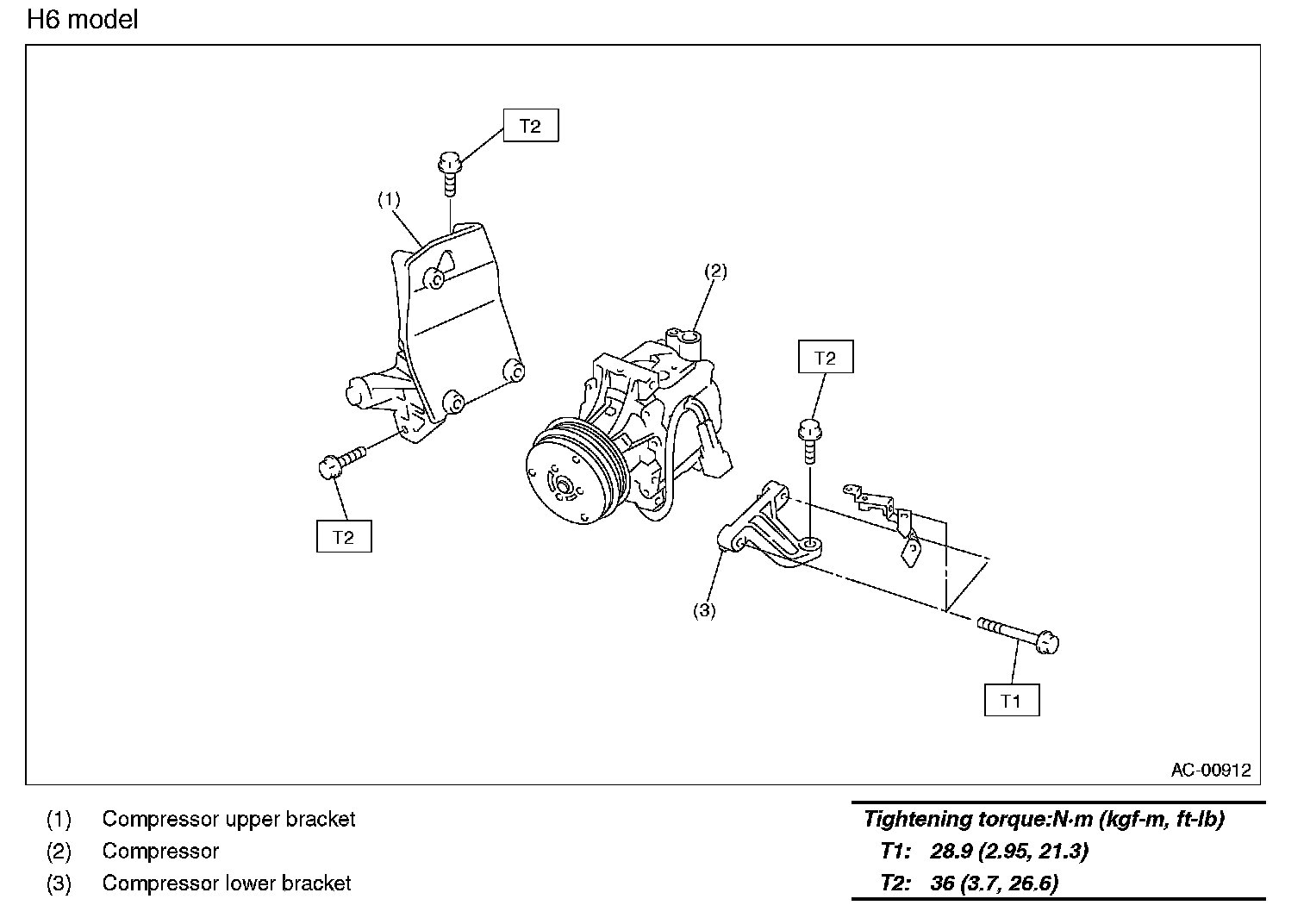

Compressor - H6 Model:

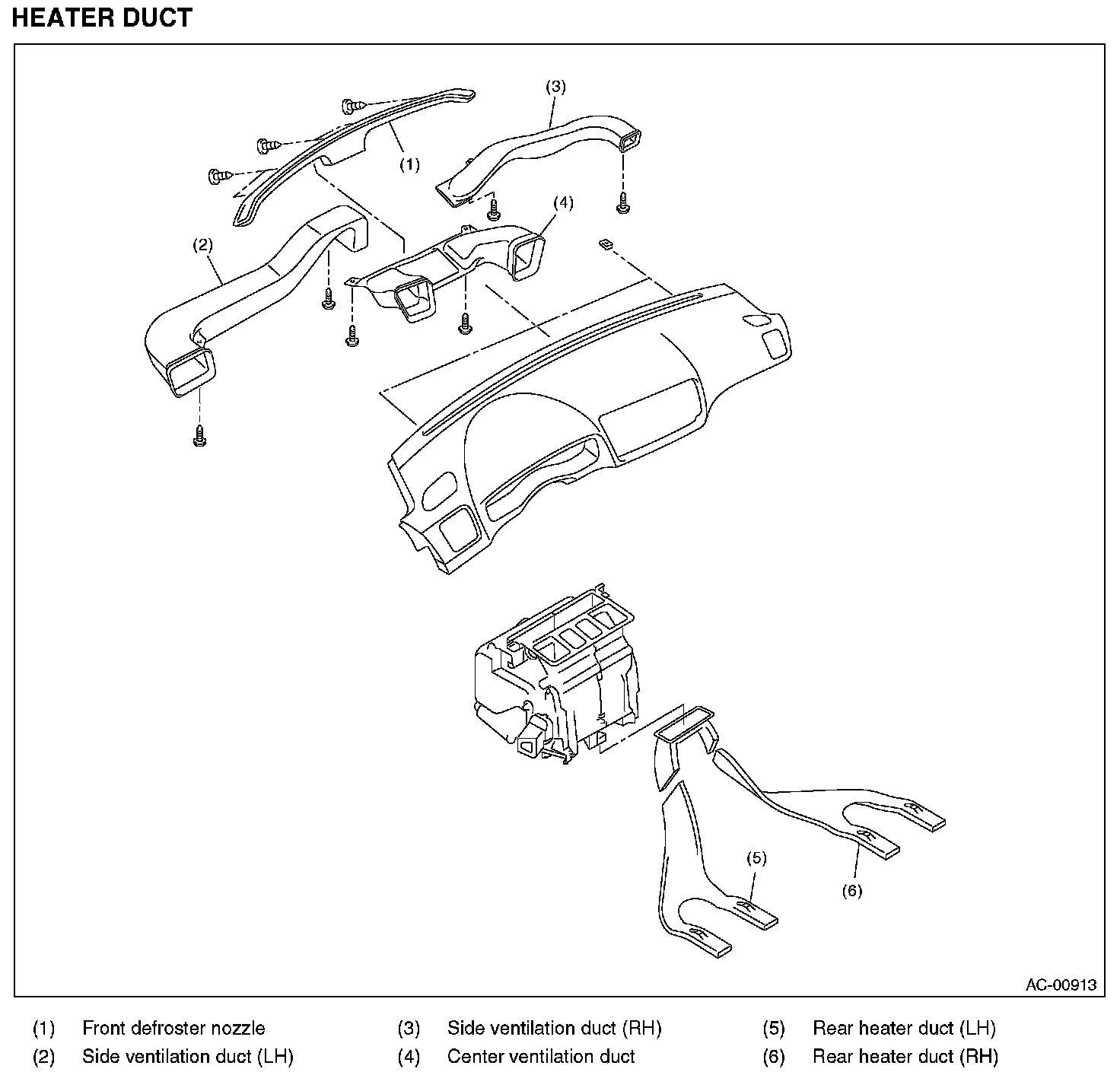

Heater Duct:
