Main Relay (Computer/Fuel System): Locations

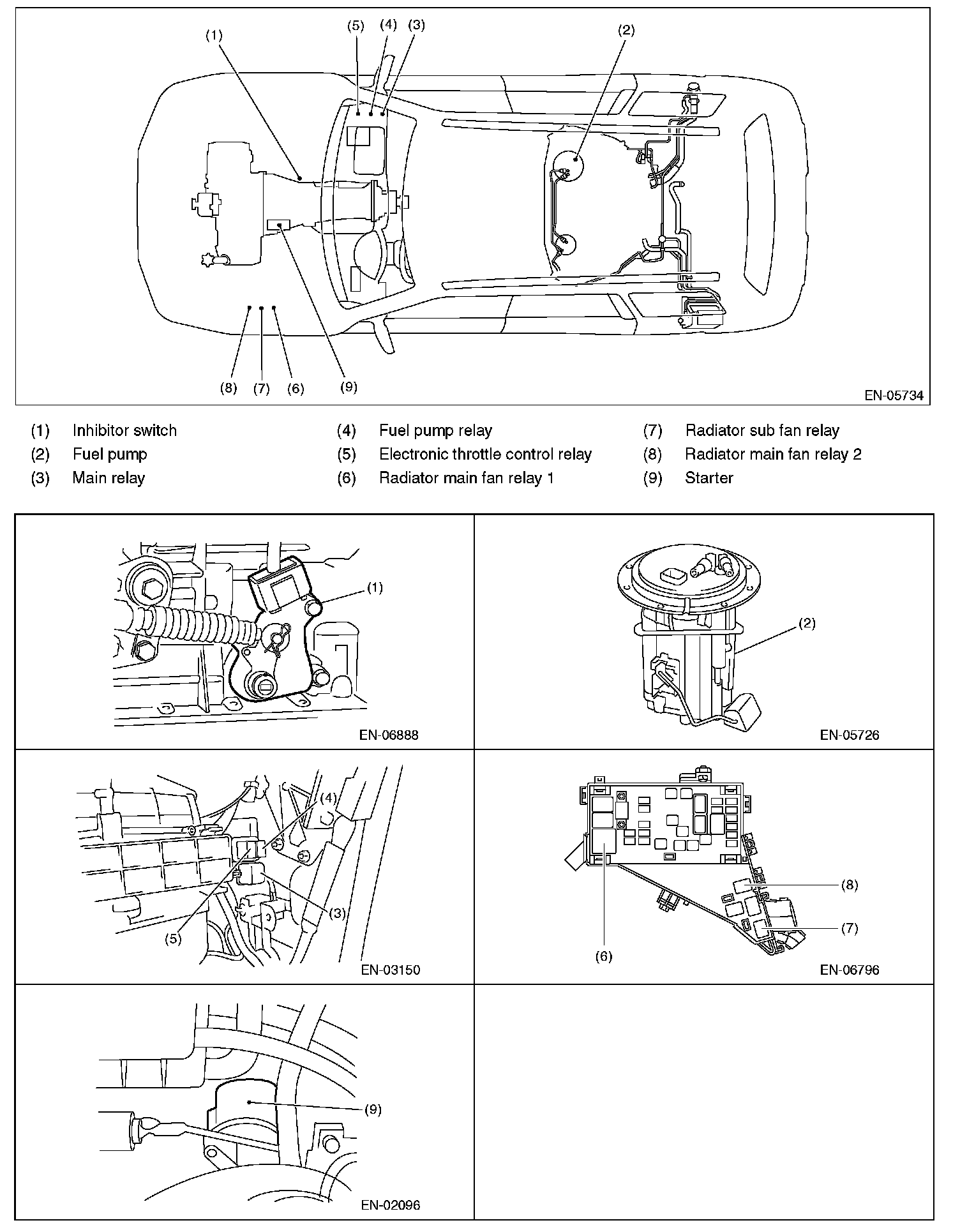

Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (Part 4):
