Oil Temperature Sensor For ECM: Service and Repair

Oil Temperature Sensor

REMOVAL

1. Disconnect the ground cable from battery.






2. Remove the air intake chamber.
3. Remove the engine harness connector from the bracket.

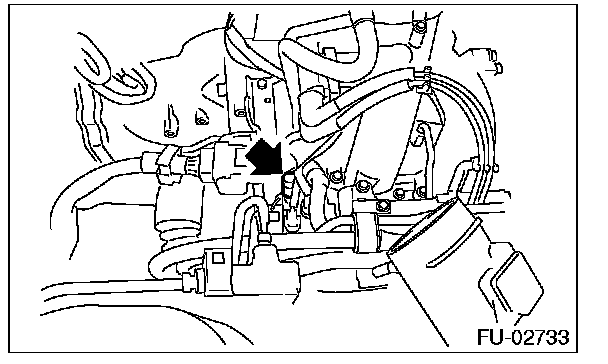

4. Disconnect the connector from the oil temperature sensor.
5. Remove the oil temperature sensor.






INSTALLATION

Install in the reverse order of removal.

NOTE: Apply liquid gasket to the oil temperature sensor threads.

Liquid gasket: THREE BOND 1324 (Part No. 004403042) or equivalent

Tightening torque: 18 N.m (1.8 kgf.m, 13.3 ft.lb)
