Ignition Control Module: Testing and Inspection
Ignition Coil and Ignitor AssemblyINSPECTION

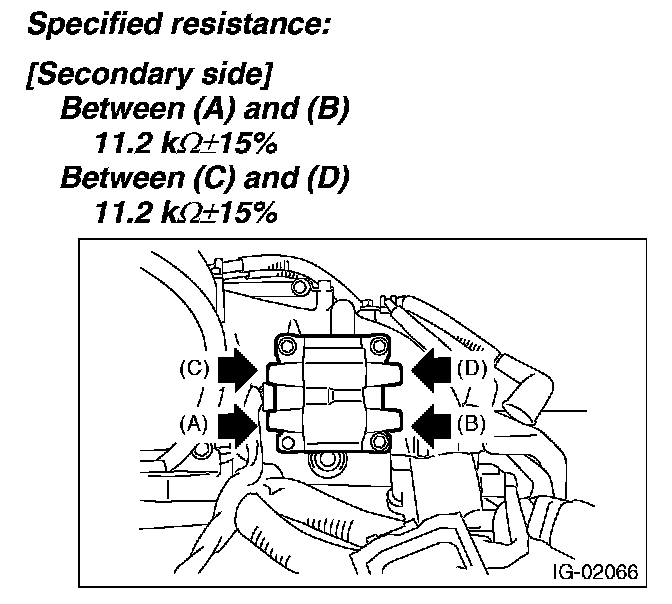

Check the secondary coil resistance using a tester. Replace if defective.
CAUTION:
- If the resistance is extremely low, it indicates the presence of a short-circuit.
- Ignitor is integrated with the coil. Therefore the resistance of primary side coil cannot be measured.
