Check FWD Switch

CHECK FWD SWITCH
DIAGNOSIS:
- LED does not illuminate even with the fuse installed on FWD fuse holder.
- FWD signal circuit is open or shorted.

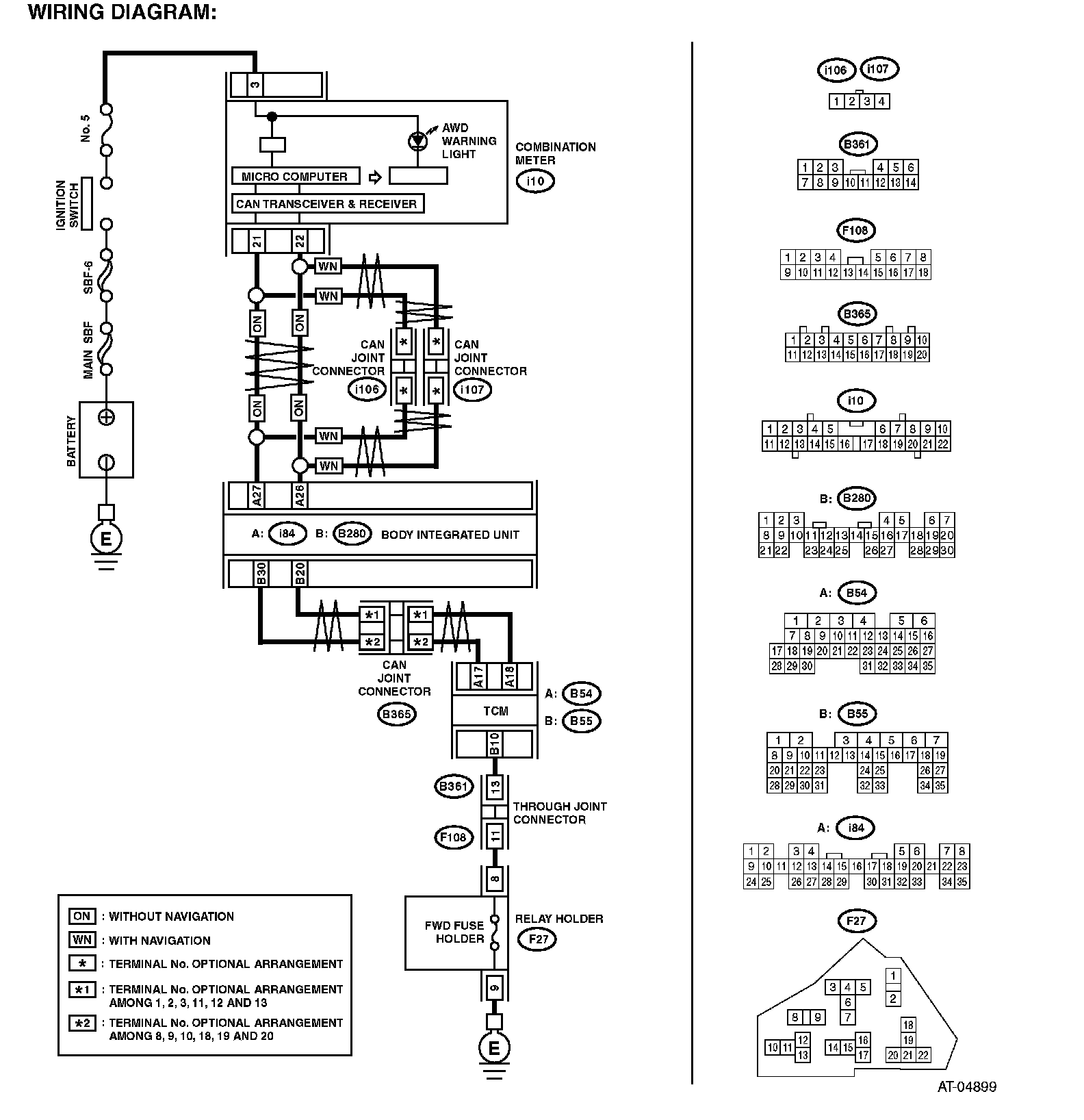

WIRING DIAGRAM:

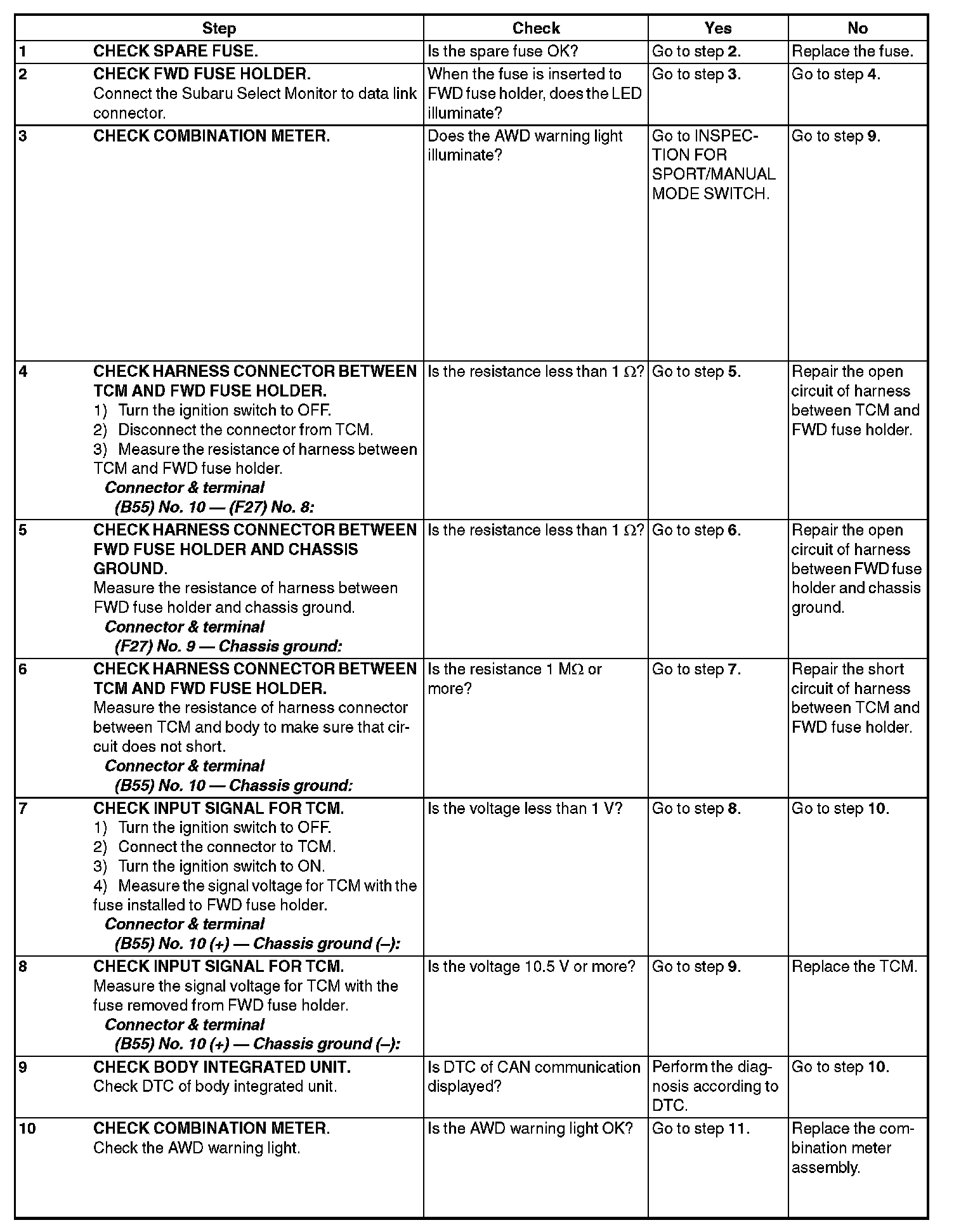

Step 1-Step 10:

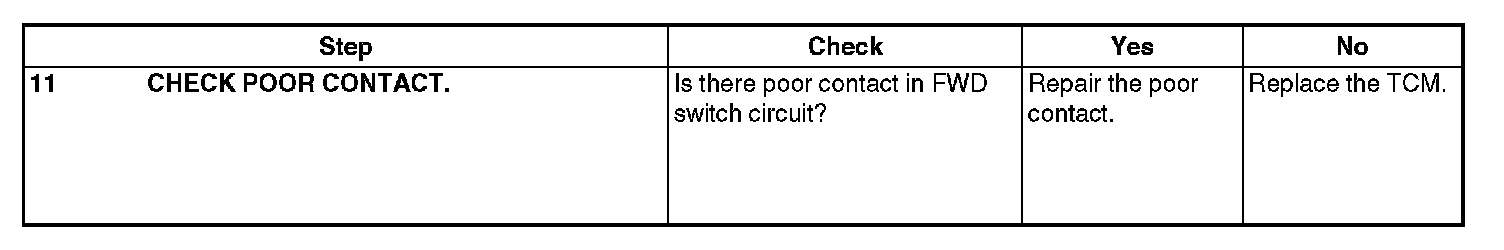

Step 11:
