Check Sport Shift Indicator

CHECK SPORT SHIFT INDICATOR
DIAGNOSIS: Output signal circuit of SPORT shift indicator is open or shorted.
TROUBLE SYMPTOM:
- SPORT shift indicator does not display or remains displayed.
- SPORT shift indicator display does not change.

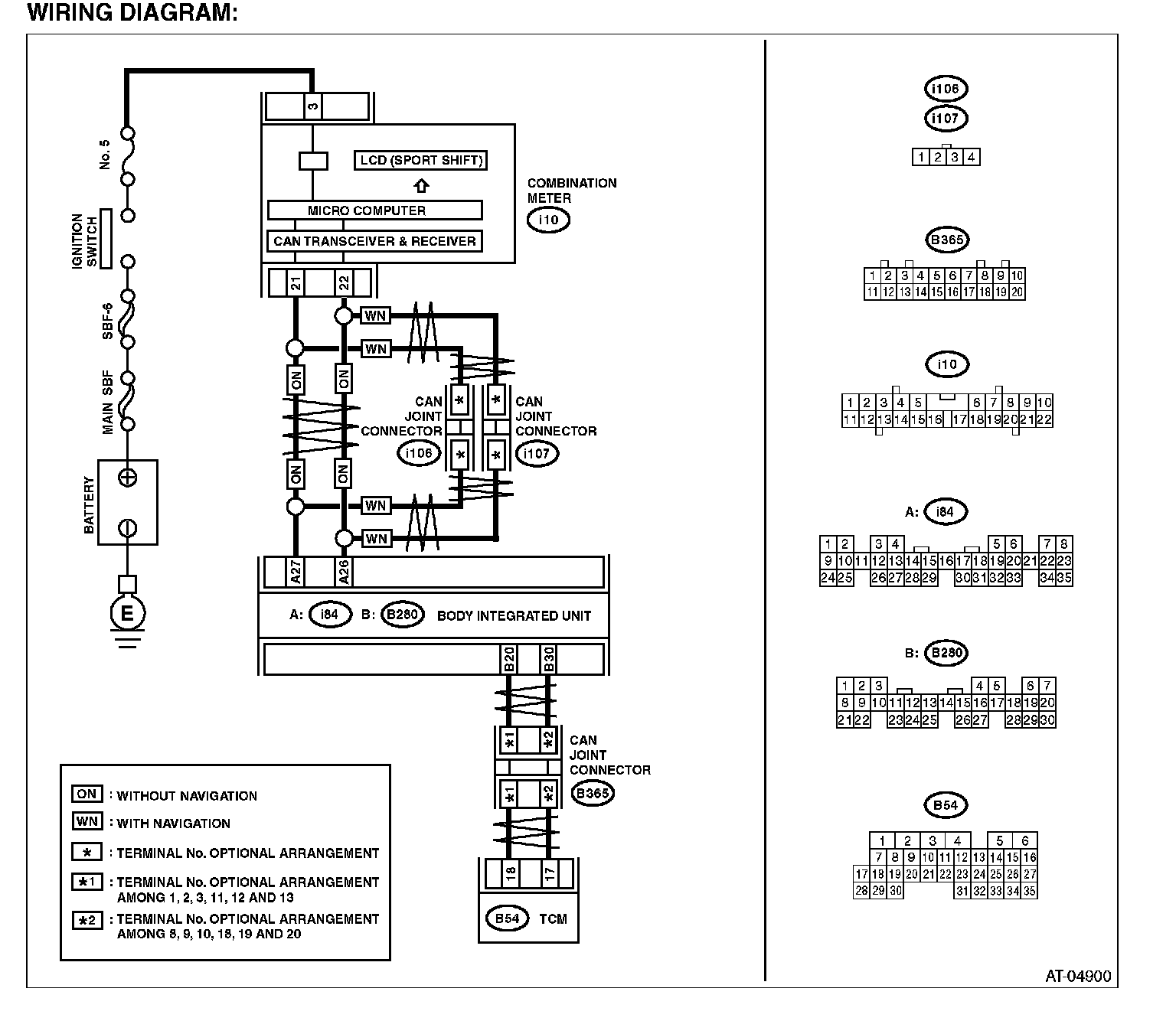

WIRING DIAGRAM:

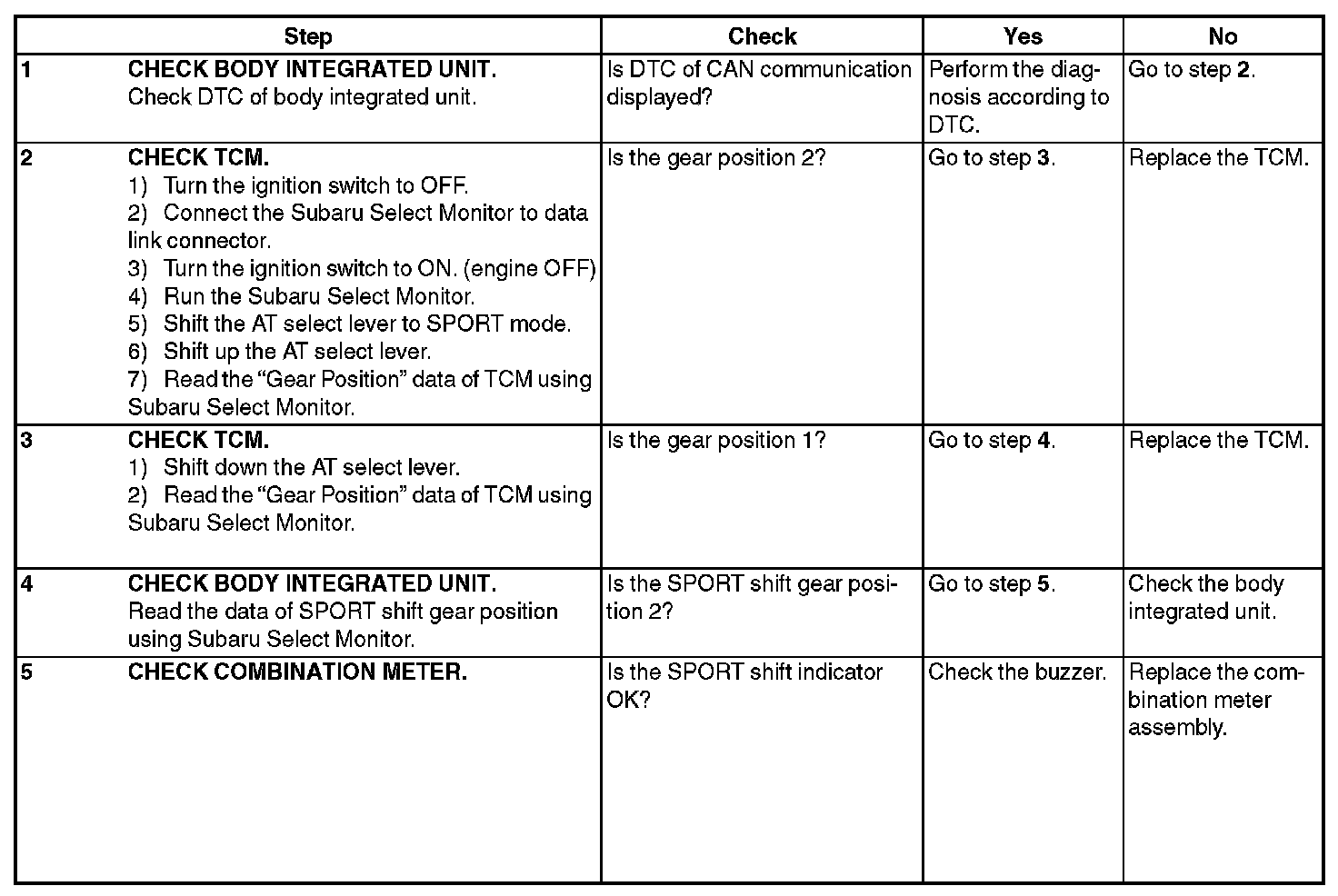

Step 1-Step 5:
