Check Sport Shift Switch
CHECK SPORT SHIFT SWITCHDIAGNOSIS: Input signal circuit of SPORT/manual mode switch is open or shorted.
TROUBLE SYMPTOM: Does not shift on manual mode.

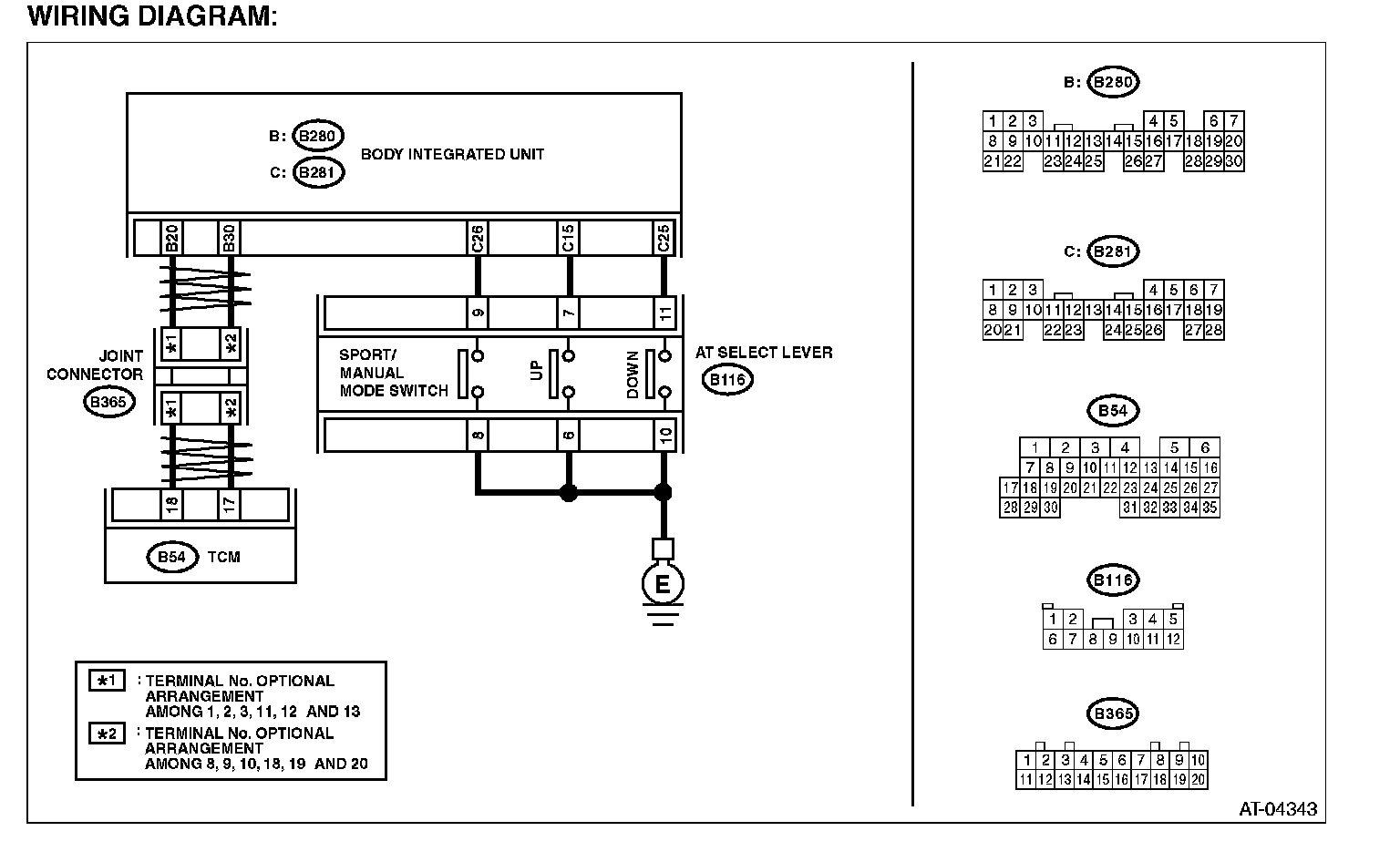

WIRING DIAGRAM:

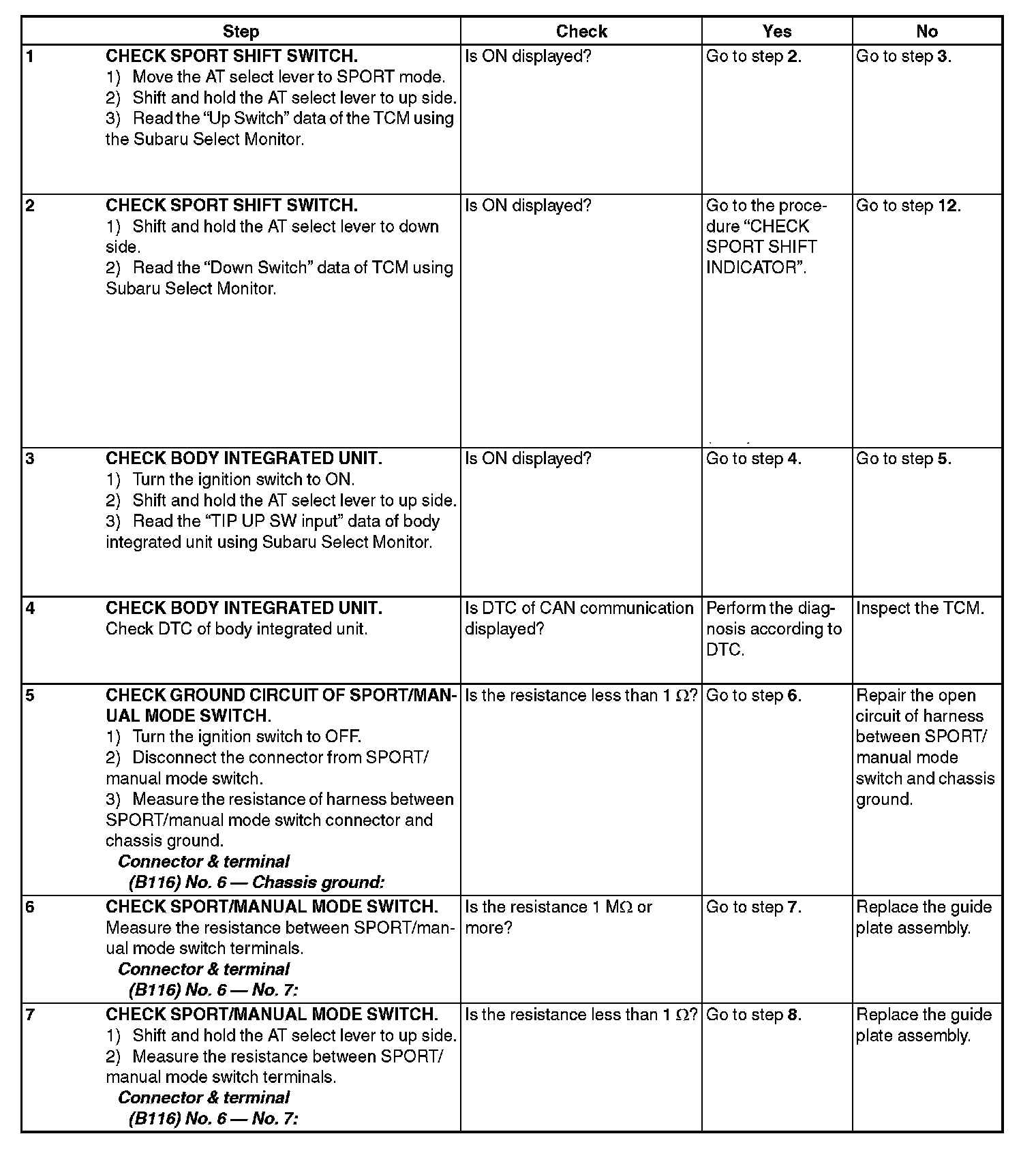

Step 1-Step 7:

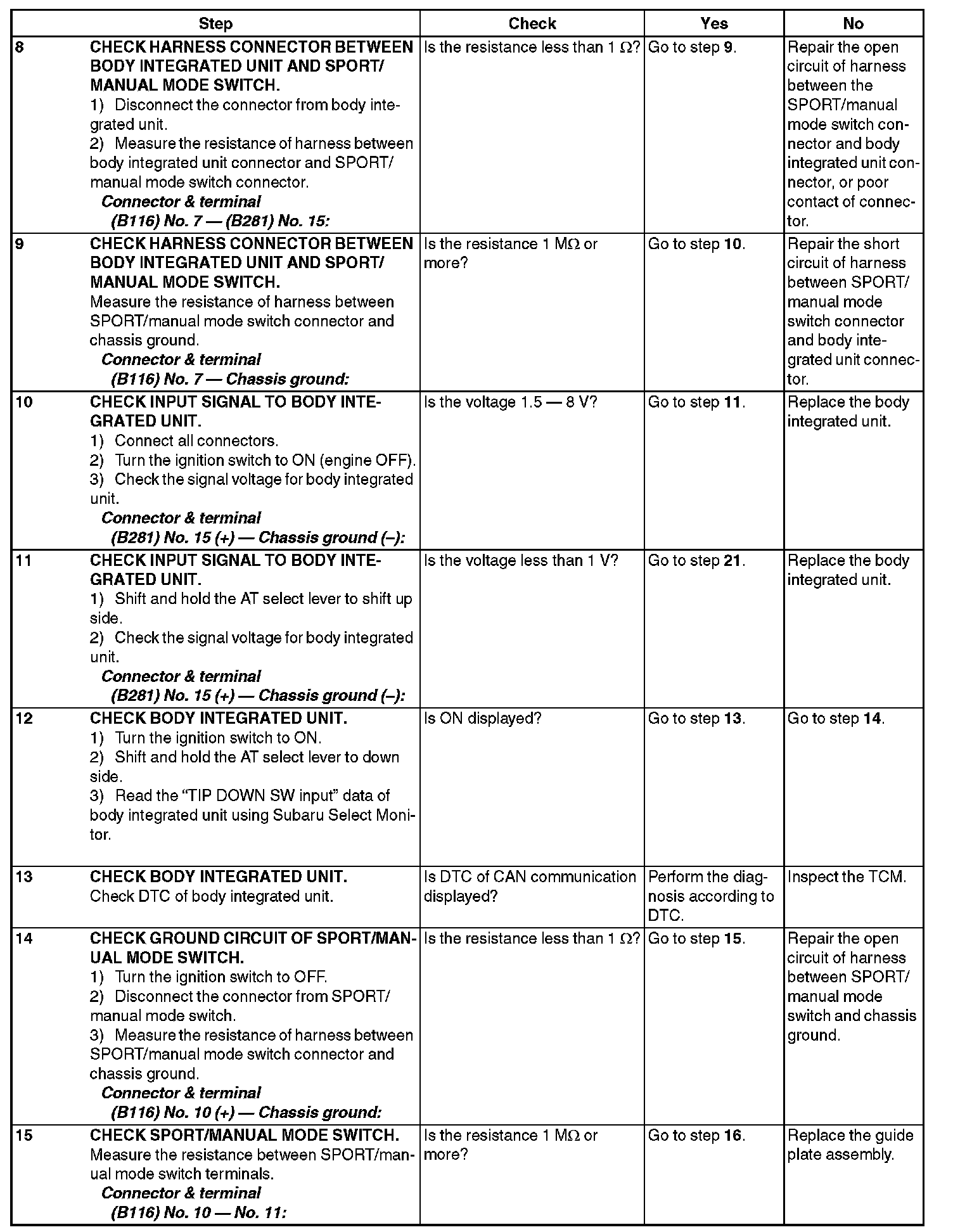

Step 8-Step 15:

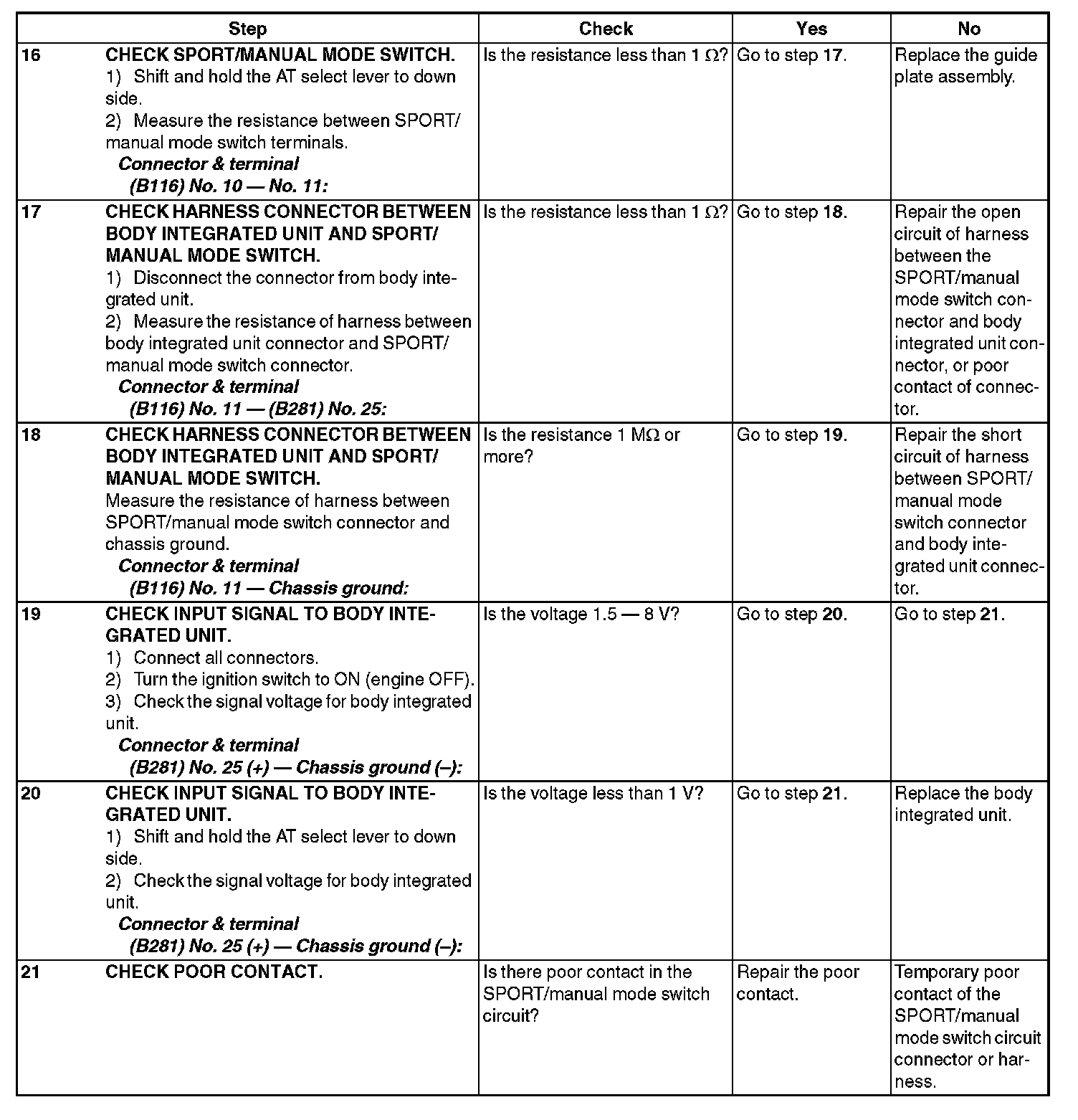

Step 15-Step 21:
DIAGNOSIS: Input signal circuit of SPORT/manual mode switch is open or shorted.
TROUBLE SYMPTOM: Does not shift on manual mode.
WIRING DIAGRAM:
