System Specifications

SPECIFICATION

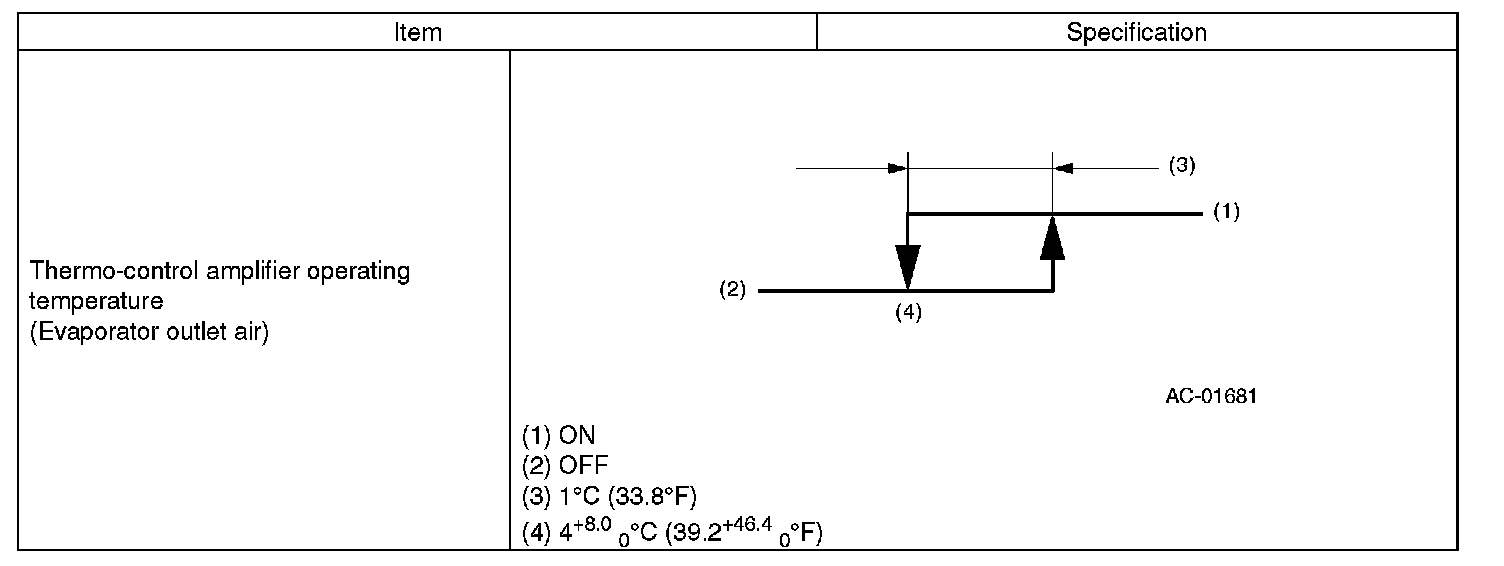

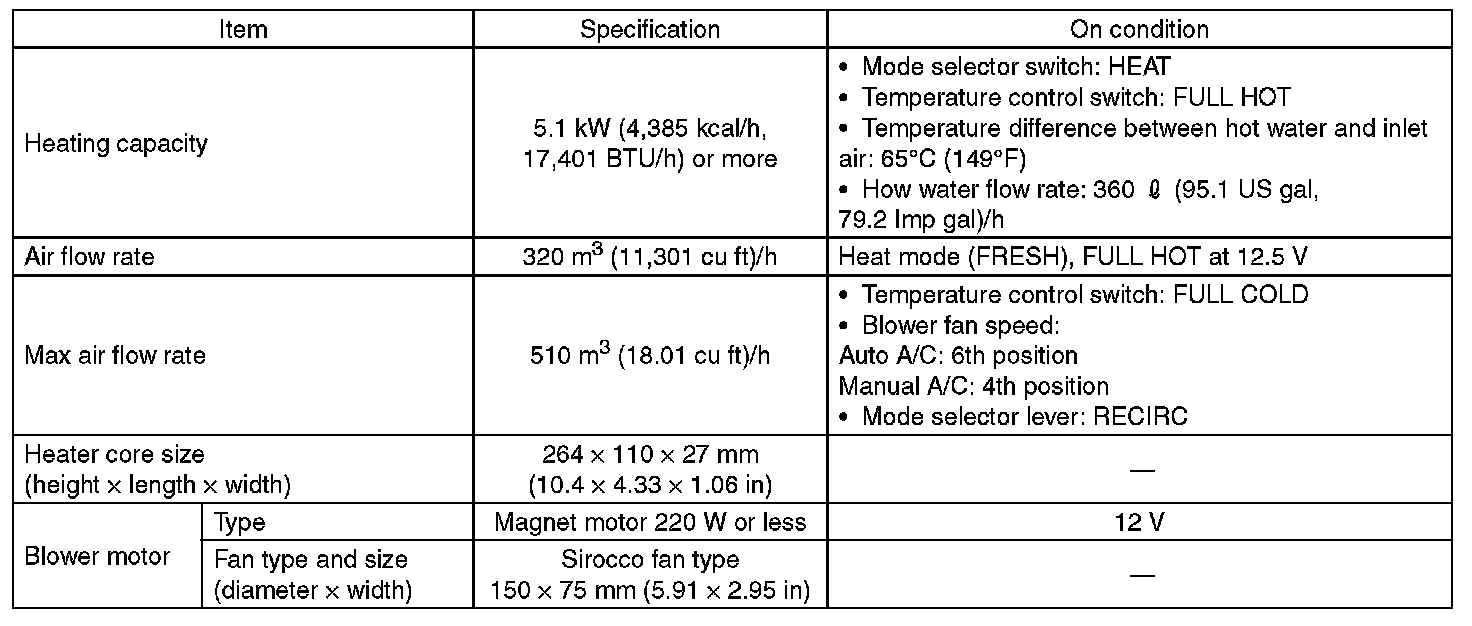

1. HEATER SYSTEM

Heater System:

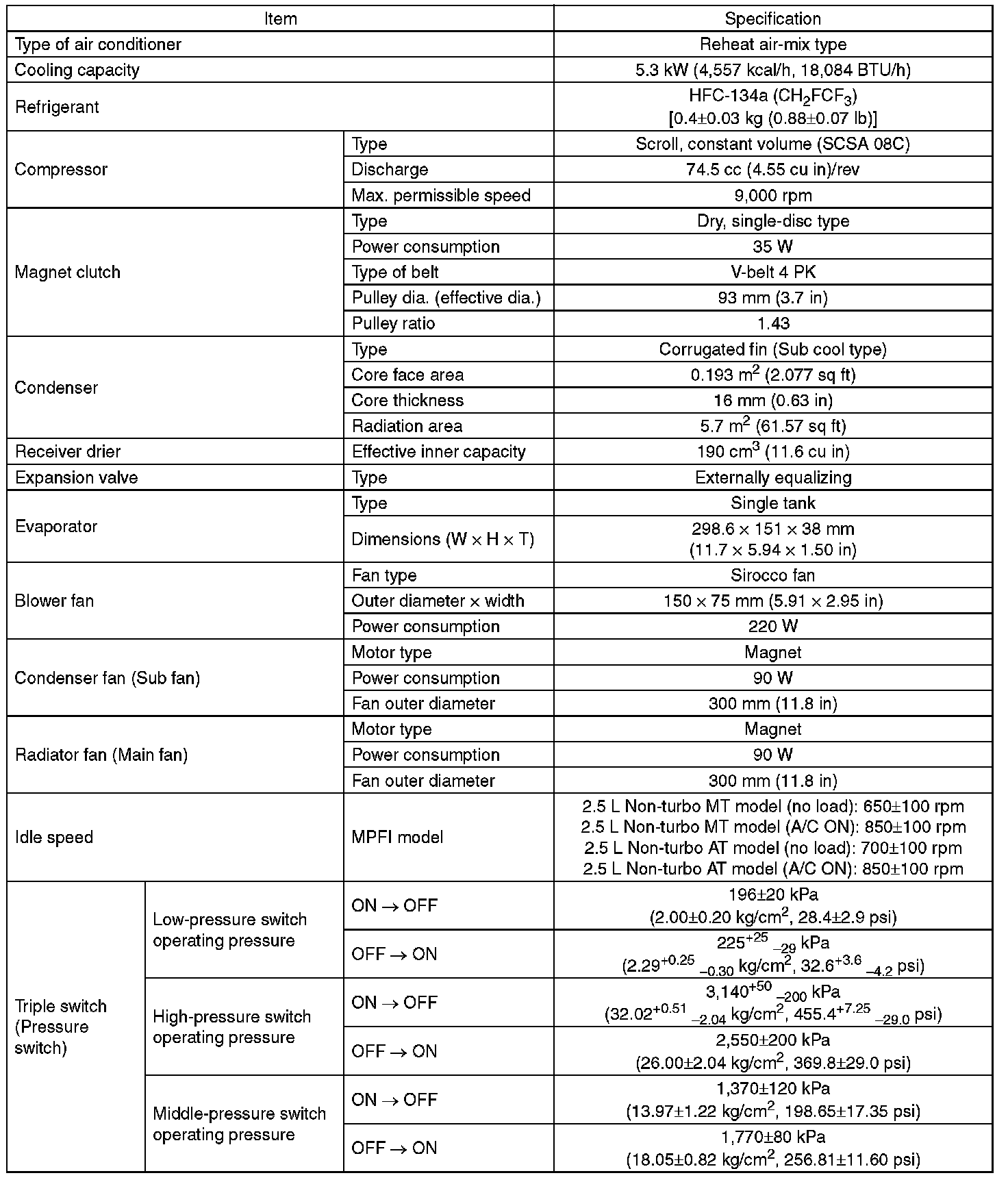

2. A/C SYSTEM
- Auto A/C model

Part 1:




Part 2:

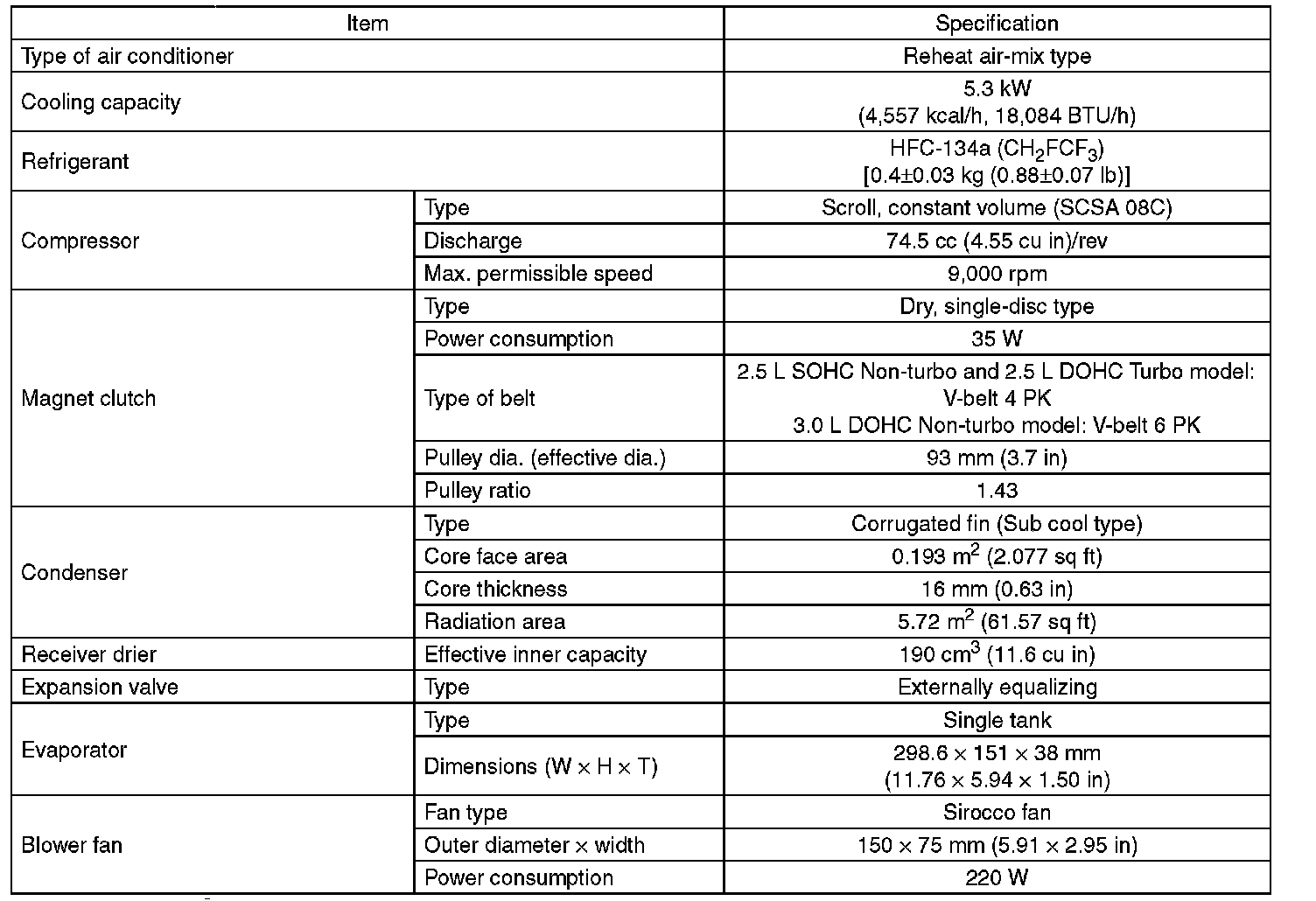

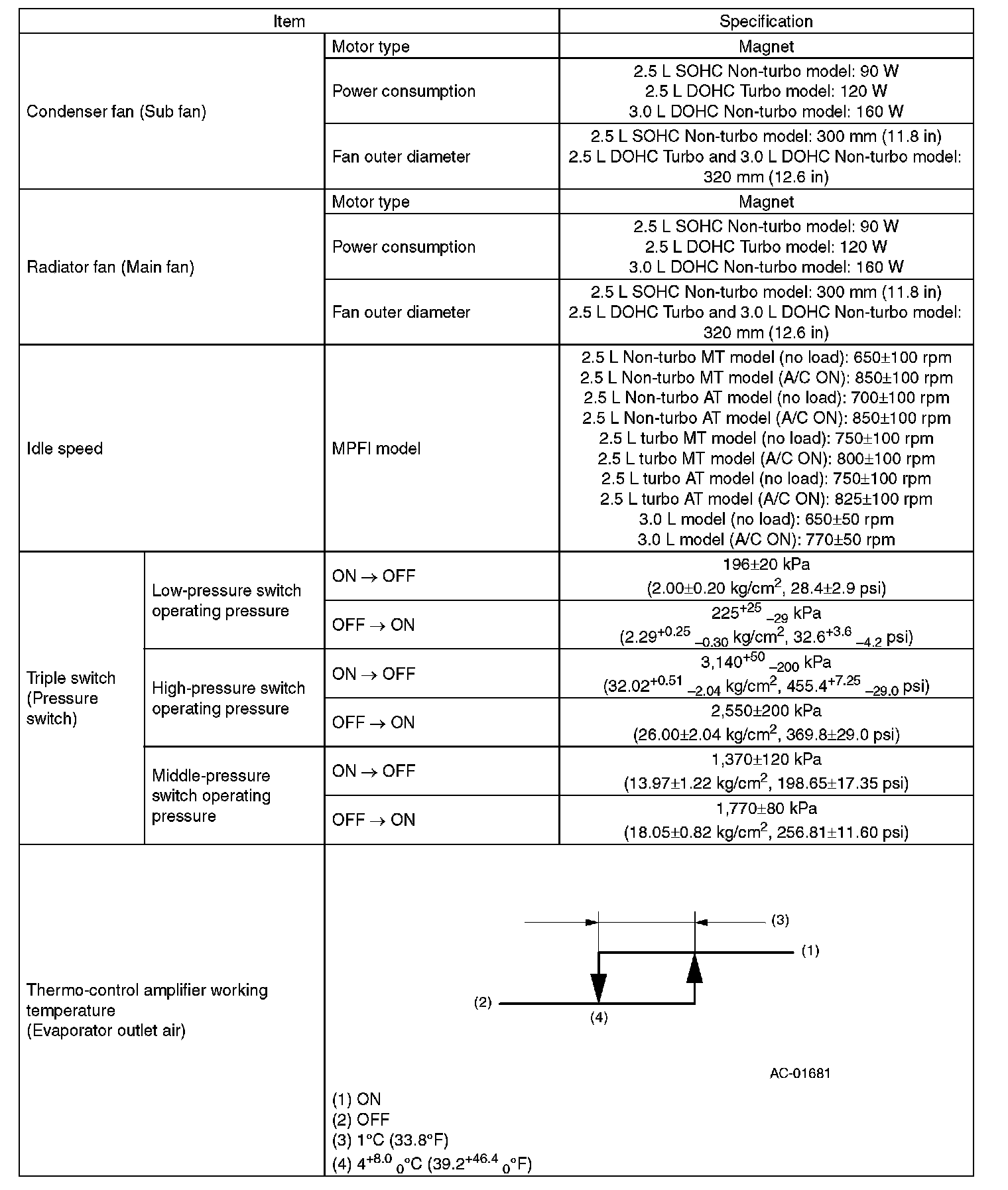

- Manual A/C model

Part 1:




Part 2:
