Ignition Lock: Service and Repair

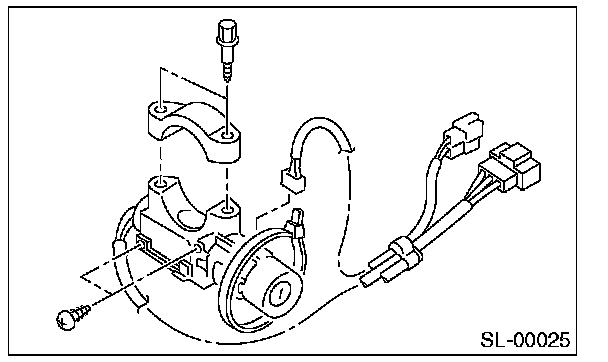

Ignition Key Lock

REPLACEMENT

1. Disconnect the ground cable from battery.
2. Remove the steering column.
3. Secure the steering column in a vise. Remove the bolt with a drill.






4. Remove the ignition key lock.
5. Use new bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
