Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

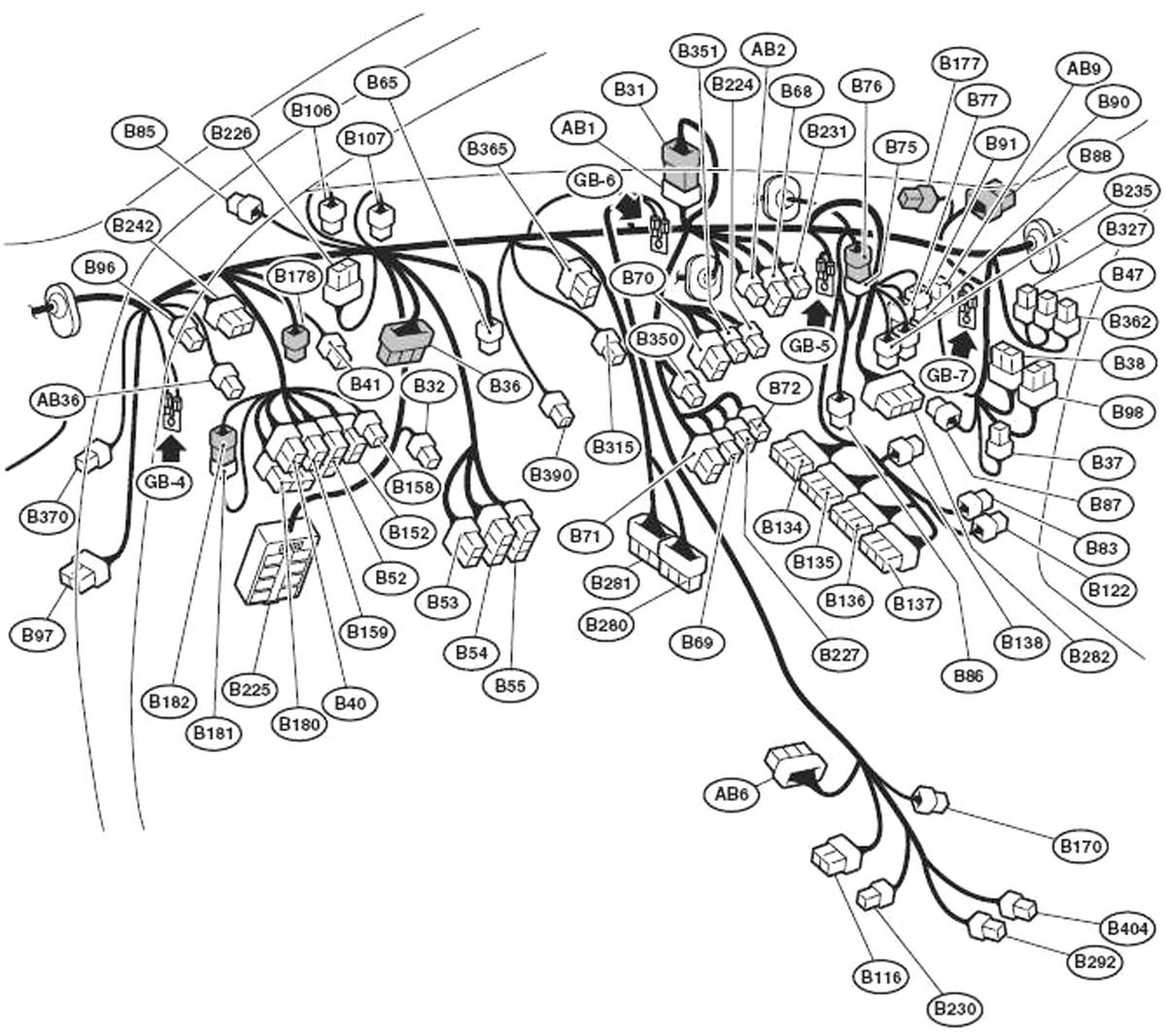

| ABS Control Module (B301) | Right side of engine compartment. See Figure. |
| Airbag Control Module (AB6) | Under center console. See Figure. |
| Airbag Control Module LH (Sedan) (AB17) | Under front of center console. See Figure. |
| Airbag Control Module RH (Sedan) (AB18) | Under front of center console. See Figure. |
| Airbag Control Module (Wagon) (AB17) | Under front of center console. See Figure. |
| Airbag Control Module (Wagon) (AB18) | Under front of center console. See Figure. |
| Auto A/C Control Module (B282) | Right side of dash. See Figure. |

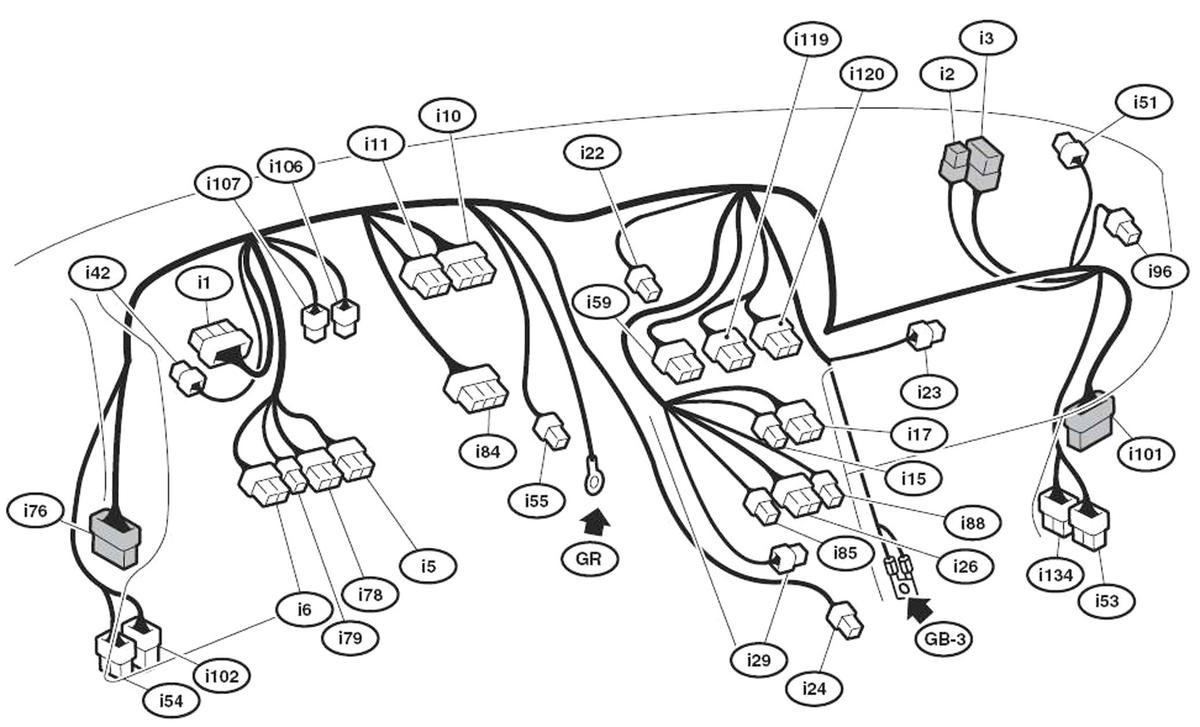

| Body Integrated Unit (I84) | Center of dash. See Figure. |
| Daytime Running Light Control Module (B96) | Left side of dash. See Figure. |
| Engine Control Module (B134, B135, B136, B137 & B138) | In passenger side front footwell below carpet and protective panel. See Figure. |

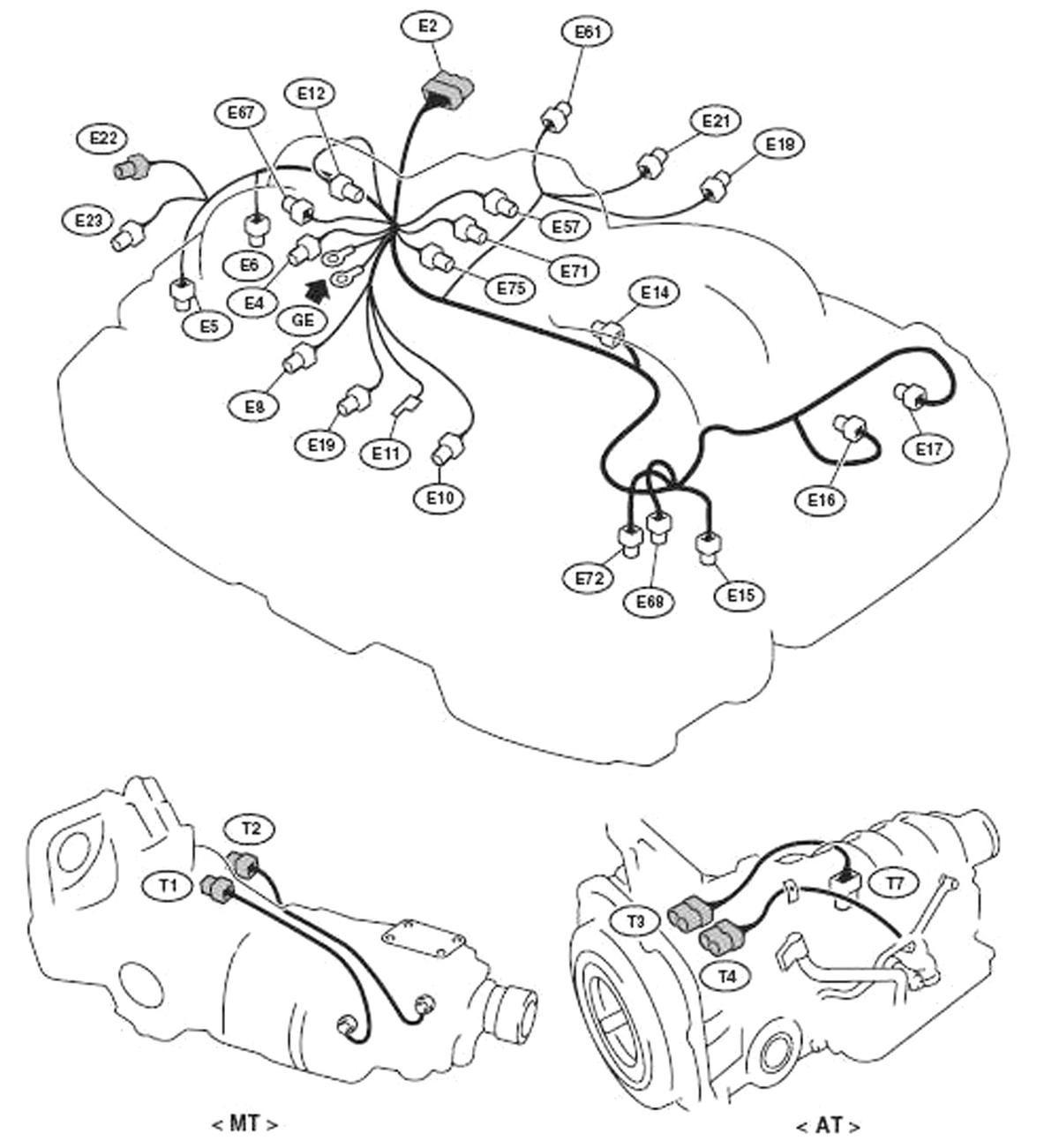

| Electronic Throttle Control (2.5L Non-Turbo) (E57) | Right rear of engine. See Figure. |

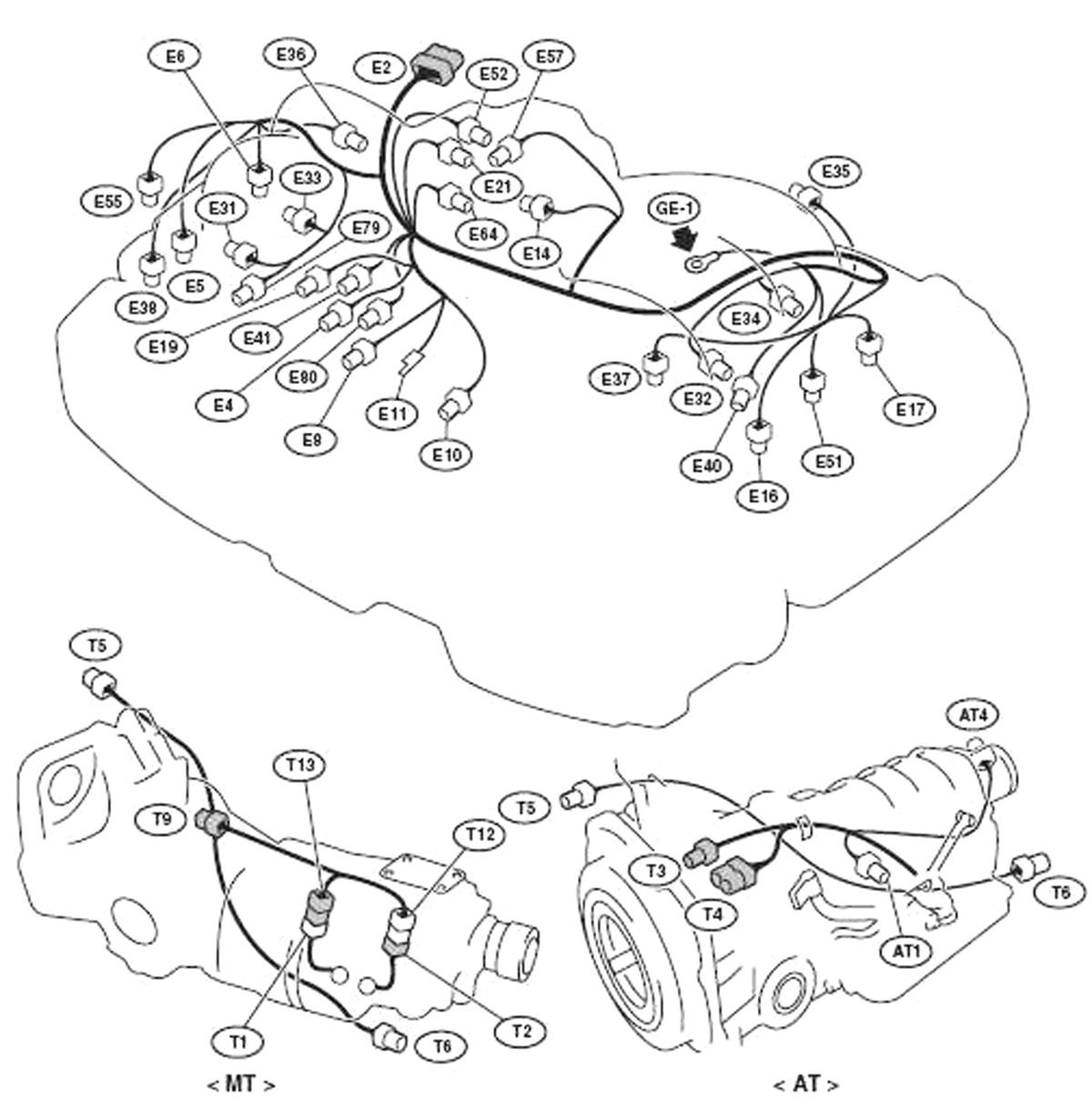

| Electronic Throttle Control (2.5L Turbo) (E57) | Right rear of engine. See Figure. |
| Electronic Throttle Control (3.0L) (E57) | Right rear of engine. See Figure. |
| Fuel Pump Control Module (Wagon) (R122) | Left side of luggage compartment. See Figure. |
| Fuel Pump Control Unit (Sedan) (R122) | Left side of trunk. See Figure. |
| Illumination Control Module (I79) | Left side of dash. See Figure. |
| Keyless Entry Control Module (I96) | Right side of dash. See Figure. |
| Navigation Module (Sedan) (R226) | Under center console. See Figure. |
| Navigation Module (Wagon) (R226) | Under center console. See Figure. |
| Occupant Detection Control Module (Sedan) (AB53) | Under front passenger's seat. See Figure. |
| Occupant Detection Control Module (Wagon) (AB53) | Under front passenger's seat. See Figure. |
| PWM Controller (F106) | Near main fan motor. See Figure. |
| Radiator Fan Control Unit (F106) | Right front of engine compartment. See Figure. |
| Remote Engine Start Control Module (B180) | Fuse & relay box (F/B). See Figure. |

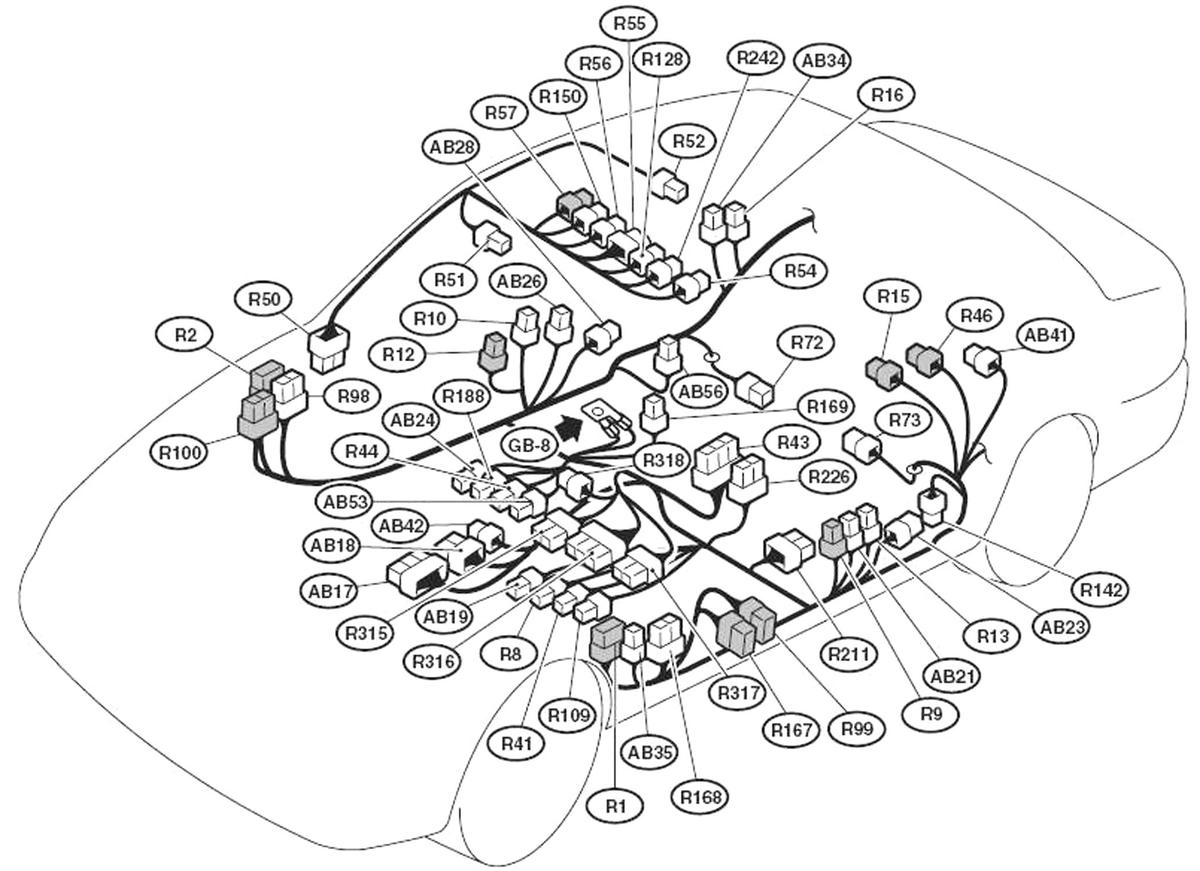

| Sunroof Control Module (Sedan) (R55) | At sunroof opening. See Figure. |

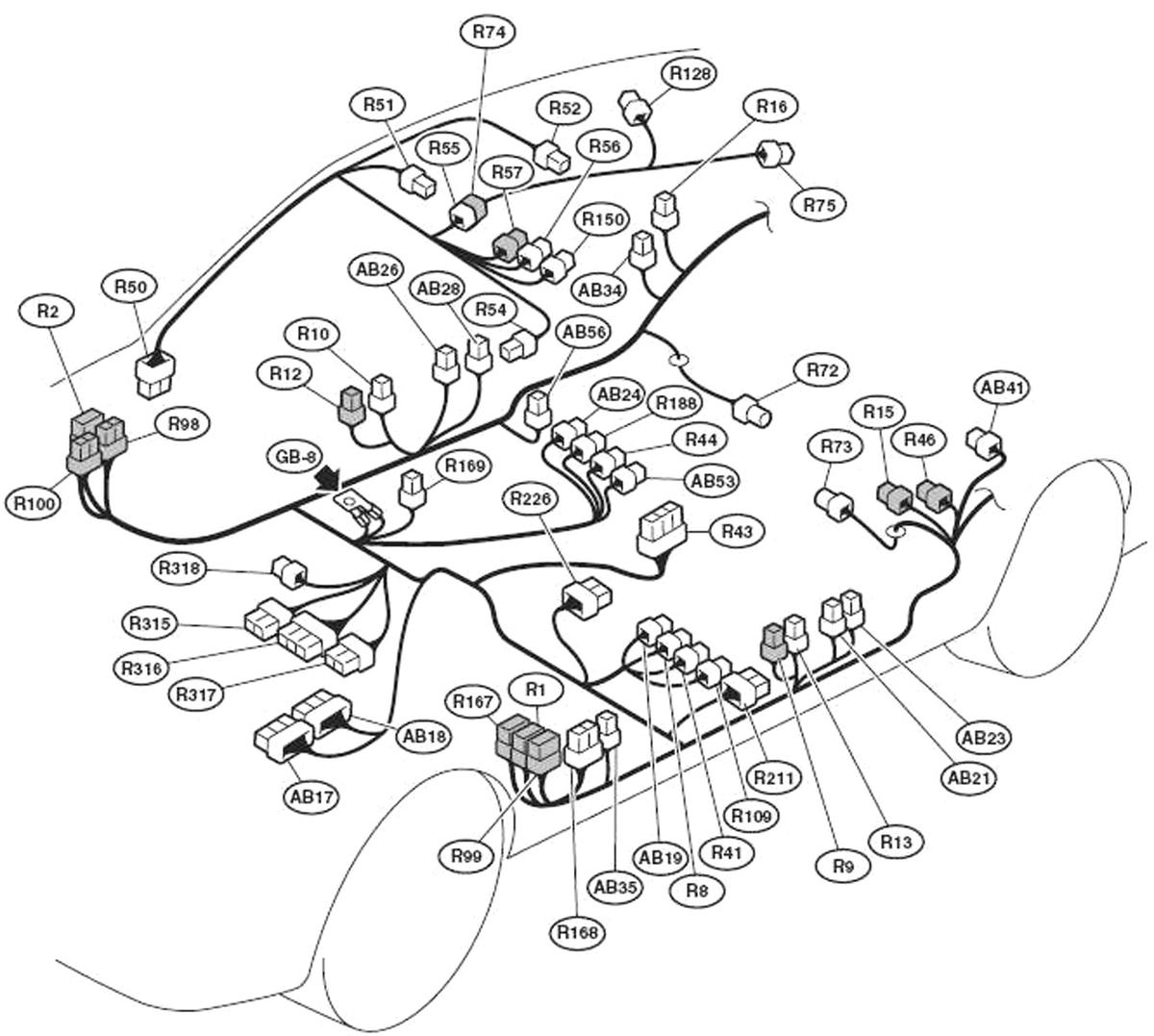

| Sunroof Control Module (Wagon) (R55) | At sun roof opening. See Figure. |
| Transmission Control Module (B54, B55) | Left side of dash. See Figure. |
| TPM Control Module (Sedan) (R211) | Under driver's seat. See Figure. |
| TPM Control Module (Wagon) (R211) | Under driver's seat. See Figure. |
| Turn Signal & Hazard Unit (B32) | Left side of dash. See Figure. |
| VDC Control Module (B310) | Right rear corner of engine compartment. See Figure. |
