Fuel Filler Pipe: Installation

Open the fuel filler lid.
Set the fuel saucer (A) with rubber gasket (C), and insert the fuel filler pipe into hole from the inner side of apron.
Align the holes in fuel filler pipe neck and set the cup (B), and tighten the screws.
NOTE: If the edges of rubber seal are folded toward inside, straighten it with a flat tip screwdriver.

Fig 1: Aligning Holes In Fuel Filler Pipe Neck
Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose (A) and evaporation hose (B) into the specified position, then attach the clamp or clip as shown in the figure.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 2: Identifying Fuel Filler Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

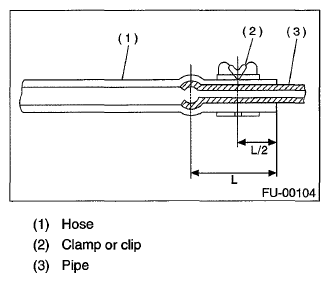

Fig 4: Identifying Fuel Filler Hose And Evaporation Hose Clamping Position
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which hold fuel filler pipe bracket on the body.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 5: Locating Bolts Which Hold Fuel Filler Pipe Bracket On Body
Courtesy of SUBARU OF AMERICA, INC.
Install the rear sub frame. Refer to INSTALLATION , Rear Sub Frame.
Install the mud guard. Refer to INSTALLATION , Mud Guard.
Lower the vehicle.
Install the rear wheel RH.
Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
Connect the ground cable to battery.

Fig 6: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
