RH Side

Install in the reverse order of removal.

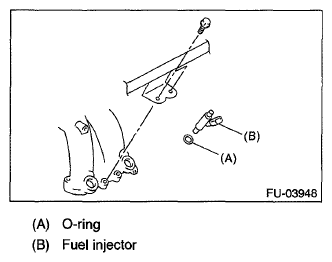

Fig 1: Identifying O-Ring And Fuel Injector - RH Side

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 2: Locating Bolt Which Holds Fuel Injector Pipe Onto Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 3: Locating Fuel Pipe Protector RH

Courtesy of SUBARU OF AMERICA, INC.
