Knock Sensor: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake chamber. Refer to REMOVAL , Air Intake Chamber.
Disconnect the knock sensor connector.

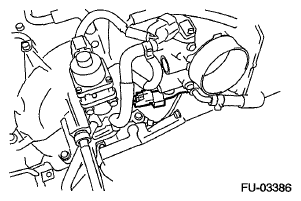

Fig 2: Identifying Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the knock sensor from the cylinder block.

Fig 3: Identifying Knock Sensor On Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
