Components With Torque Specifications

Illustrations are provided for each component. The information necessary for repair work (tightening torque, grease up points, etc.) is described on these illustrations. Information is described using symbol. To order parts, refer to parts catalog.

Example:

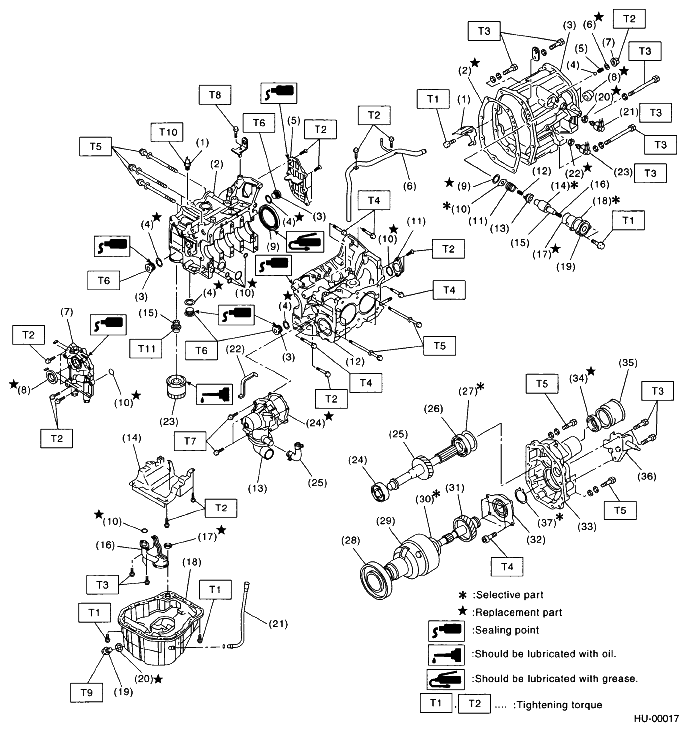

Fig 1: Engine Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
