Components With Torque Specifications

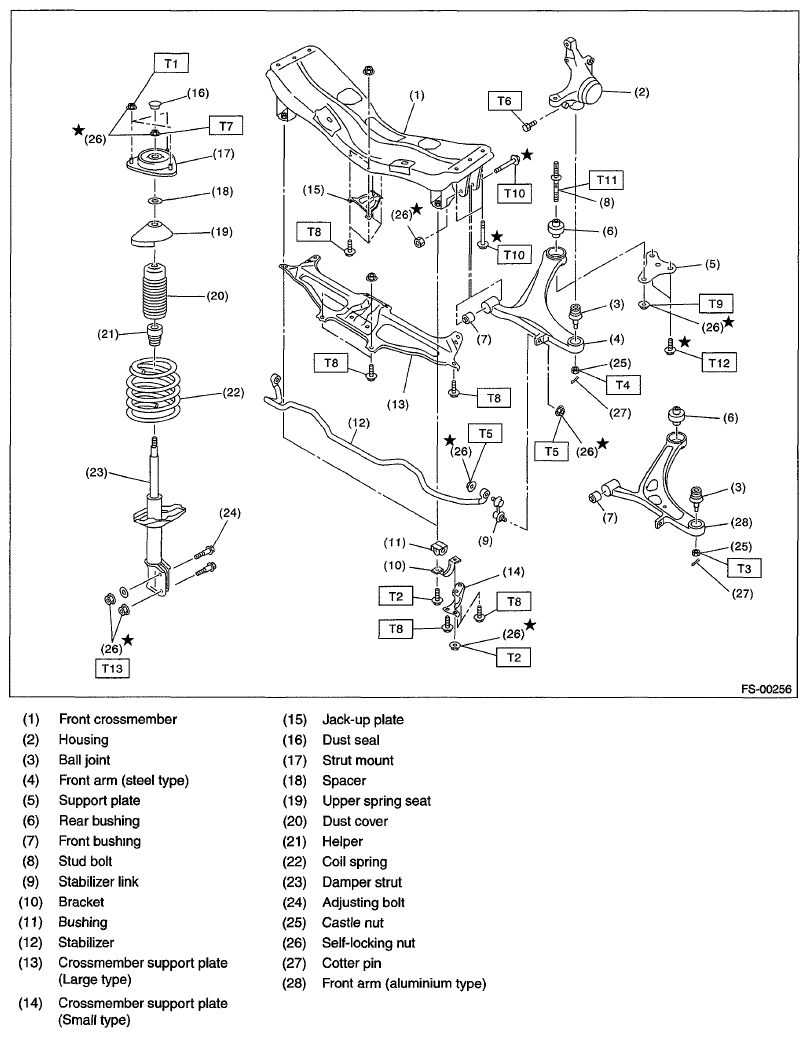

Fig 1: Exploded View Of Front Suspension Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.5)

T2: 25 (2.5, 18.1)

T3: 30 (3.1, 22)

T4: 39 (4.0, 28.8)

T5: 45 (4.6, 33.2)

T6: 50 (5.1, 36.9)

T7: 55 (5.6, 41)

T8: 60 (6.1, 44.3)

T9: 88 (9.0, 64.9)

T10: 95 (9.7, 70.1)

T11: 110 (11.2, 81.1)

T12: 150 (15.3, 110.6)

T13: 155 (15.8, 114.3)
