Rear Sub Frame: Installation

Install in the reverse order of removal.
Follow the procedure below for the rear differential installation and tightening torque.
T-type

Ref. to INSTALLATION , Rear Differential (T-type).

VA-type

Ref. to INSTALLATION , Rear Differential (VA-type).
Support the rear arm horizontally using a transmission jack. Tighten the nuts and bolts which hold the rear arm, front link, rear link, upper link and shock absorber.

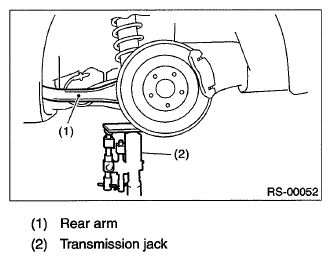

Fig 1: Supporting Rear Arm Horizontally Using Transmission Jack
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to COMPONENT of General Description for the tightening torque. Ref. to REAR SUSPENSION , COMPONENT, General Description.
Check the wheel alignment and adjust it if necessary.
