Control Valve Body: Installation

Check the control valve body for dust and other foreign matter.
Temporarily attach the control valve body to the transmission.
Install the oil cooler pipe.
Tightening torque: 8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 1: Identifying Oil Cooler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts equally.
Tightening torque: 8 N.m (0.8 kgf-m, 5.9 ft-lb)

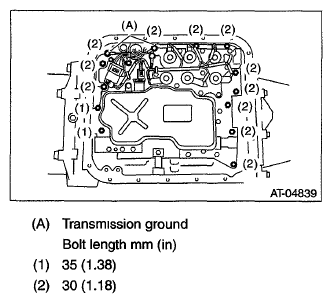

Fig 2: Identifying Control Valve Body With Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the control valve connector.

Fig 3: Identifying Control Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at the specified position of the oil pan.

Fig 4: Identifying Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

Fig 5: Identifying Liquid Gasket Applying Areas On Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Fill the 3 holes aside from the bolt holes in the transmission case, with liquid gasket.

Fig 6: Locating Liquid Gasket Applying Locations On Bolt Holes
Courtesy of SUBARU OF AMERICA, INC.

Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent
Install the oil pan by equally tightening the bolts.
Tightening torque: 5 N.m (0.5 kgf-m, 3.7 ft-lb)
Fill ATF from the oil charge pipe. Refer to AUTOMATIC TRANSMISSION FLUID .
Bleed the air of control valve body. Refer to AIR BLEEDING OF CONTROL VALVE .
Check the ATF level. Refer to INSPECTION , Automatic Transmission Fluid.
Execute the learning control promotion. Refer to FACILITATION OF LEARNING CONTROL , OPERATION, Subaru Select Monitor.
