Extension Case: Removal

Remove the transmission assembly. Refer to REMOVAL , Automatic Transmission Assembly.
Remove the rear vehicle speed sensor.

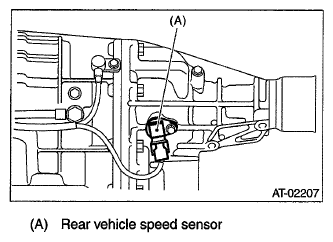

Fig 1: Identifying Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Separate the transmission case and extension case section.

Fig 2: Identifying Extension Case Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
