Differential Case Assembly

Remove the taper roller bearing using the ST and the press.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using ST 498077000 Remover
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise, remove the hypoid driven gear tightening bolts, and then separate the hypoid driven gear into differential case (RH) and differential case (LH).

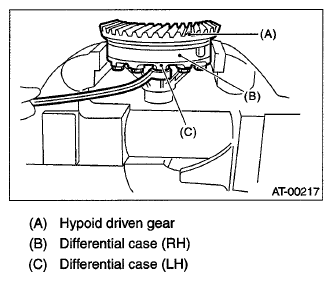

Fig 2: Separating Hypoid Driven Gear Into Differential Case (RH) And Differential Case (LH)
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

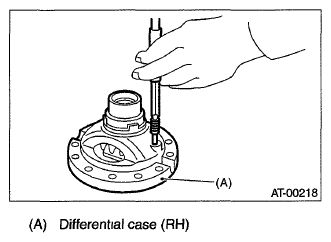

Fig 3: Pulling Out Straight Pin And Pinion Shaft
Courtesy of SUBARU OF AMERICA, INC.
